Ripsaw Multi Machine
- Qingdao etc China port
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Circular Saw | |
| Use | Woodworking | Style | Vertical | |
| Place of Origin | Shandong, China | Brand Name | sawmillworld | |
| Model Number | SHYM200, SHYM250, SHYM300, SHYM350 | Usage | wood splitting | |
| Voltage | 380V,440V, or as cusmer needs | Power(W) | 22-37kw | |
| Dimension(L*W*H) | depends on different types | Weight | 2200-3200kg | |
| Certification | ISO,CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

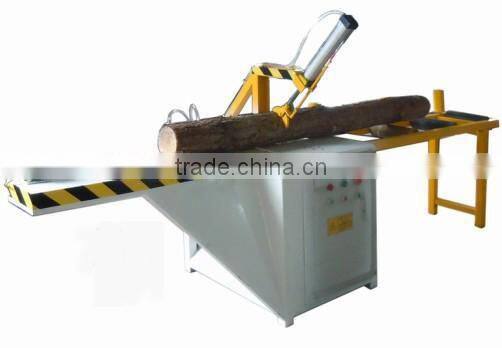

Pneumatic Log Cut Off Saw
Model | SH300 |
Processing Log Length | 500-6000mm |
Processing Log Diameter | 10-300mm |
Saw Blade Diameter | 850mm |
Motor Power | 7.5KW |
Log Clip Model | pneumatic |
|
|

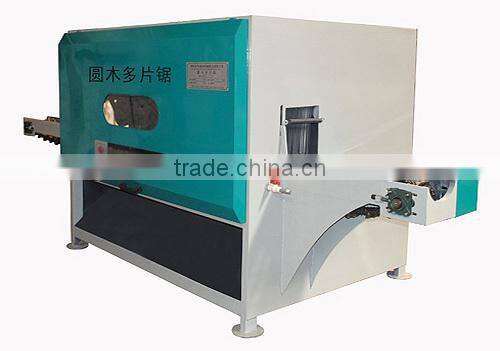

Multi Blades Sawmill for Round Logs
parameter | SHYM200 | SHYM250 | SHYM300 | SHYM350 |
Cut diameter | 200mm | 250mm | 300mm | 350mm |
Cut length | above 600mm | above 600mm | above 600mm | above 600mm |
speed | 2800r/min | 2800 r/min | 2800 r/min | 2800 r/min |
Motor power | 22KW*2 | 22KW*2 | 30KW*2 | 37KW*2 |
Feed motor power | 1.5KW | 1.5KW | 2.2KW | 2.2KW |
saw blade dia. | 305mm | 366mm | 405mm | 480mm |
saw blades No. | 2-10pieces | 2-10 pieces | 2-10 pieces | 2-10 pieces |
Saw blade arrangement | Upper and down | Upper and down | Upper and down | Upper and down |
Feed speed | Frequency control | Frequency control | Frequency control | Frequency control |
Cooling water pressure | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA |
Type of cooling | The axis of hydraulic | The axis of hydraulic | The axis of hydraulic | The axis of hydraulic |

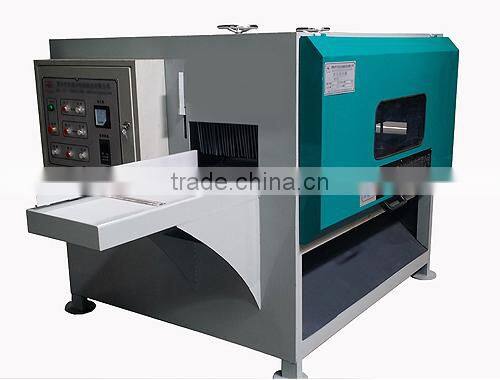

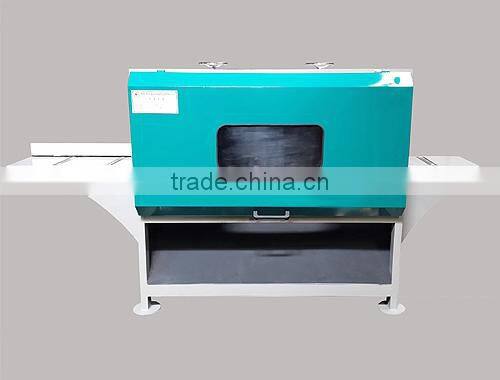

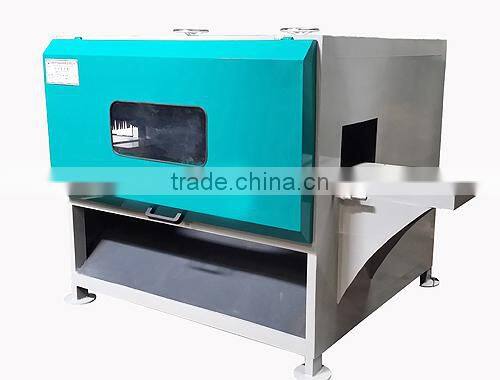

Multi-blades sawmill for planks
Technics | SHBC120-250 | SHBC160-250 | SHBC200-250 | SHBC160-350 |
Cut max. width | 250mm | 250mm | 350mm | 350mm |
Cut max. thickness | 120mm | 160mm | 200mm | 160mm |
Cut length | Up 500mm | Up 500mm | Up 500mm | Up 600mm |
Spindle speed | 2800r/m | 2800r/m | 2800r/m | 2800r/m |
Main motor power | 15KW*2 | 18.5KW*2 | 22KW*2 | 22KW*2 |
Feeding motor | 1.5KW | 1.5KW | 2.2KW | 2.2KW |
Blade diameter | 212mm | 255mm | 305mm | 255mm |
Blade No. | 2-10pcs | 2-10pcs | 2-10pcs | 2-10pcs |
Blade arrangement | Up / down,2sets | Up / down,2sets | Up / down,2sets | Up / down,2sets |
Feeding mode | frequency | frequency | frequency | frequency |
Cooling water pressure | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA | 0.3-0.6PA |
Cooling type | Axial spraying | Axial spraying | Axial spraying | Axial spraying |
