Hydraulic Mobile Crane

Name: Hydraulic Mobile Crane
Brand: SH OR OEM
SKU: 138243799
Availability: InStock

US$ 3,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Agro-Forestry Monitoring System

Use:

load, unload, transporate, grap

Shandong Zouping Shuanghuan Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Agro-Forestry Monitoring System

Use load, unload, transporate, grap

Power Type Other, Diesel, PTO Type/ Gasoline engie

Production Capacity 9 Cbm/hour

Place of Origin Shandong, China

Brand Name SH OR OEM

Model Number ZM1002, ZM3004, ZM12006

Dimension(L*W*H) 3700x1400x550

Weight 2900kgs

Certification CE

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

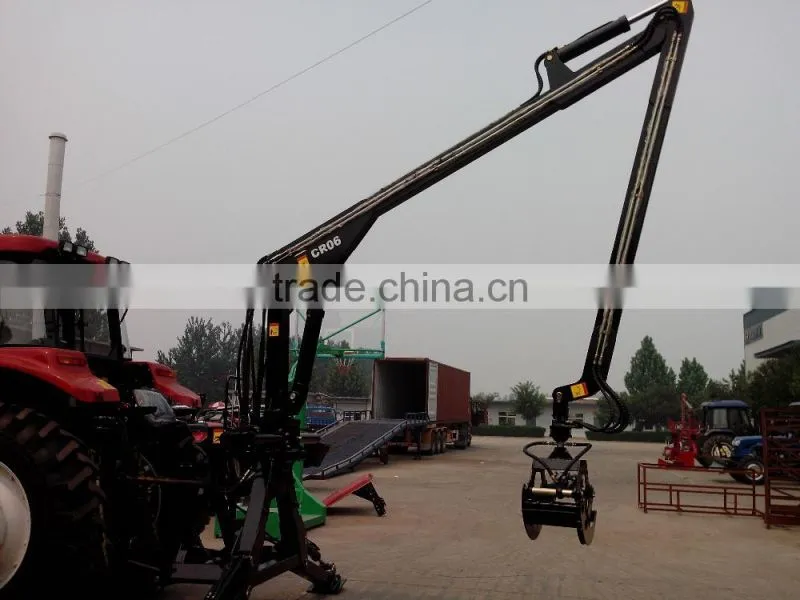

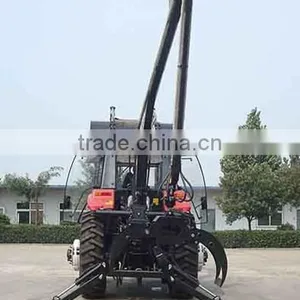

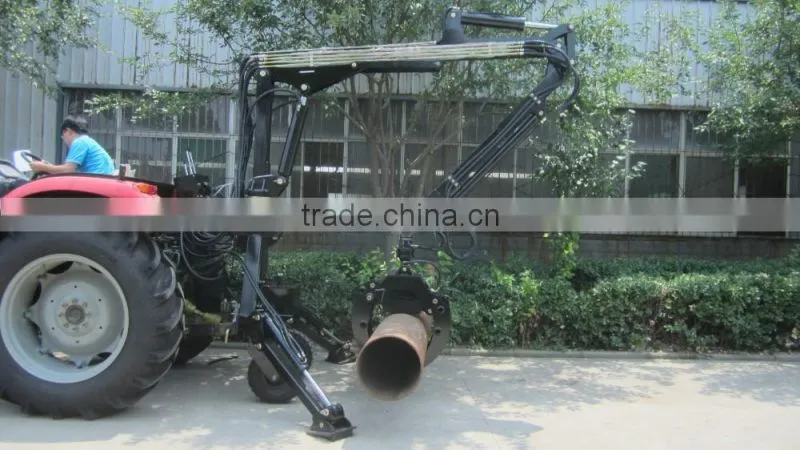

Forestry loader!! mini log trailer with crane

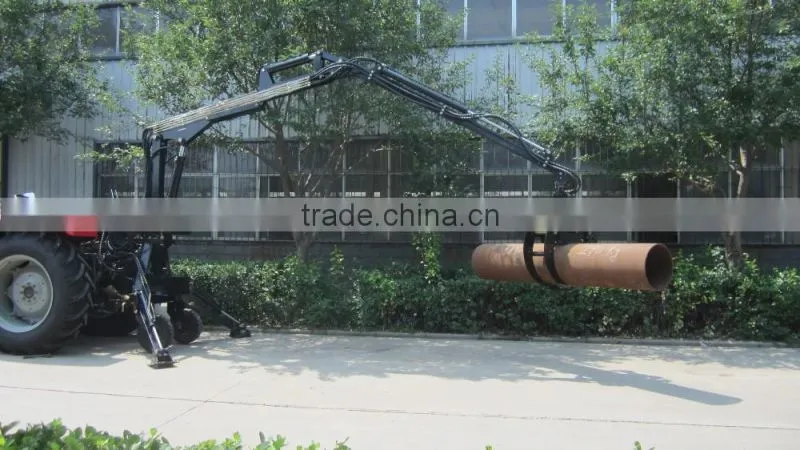

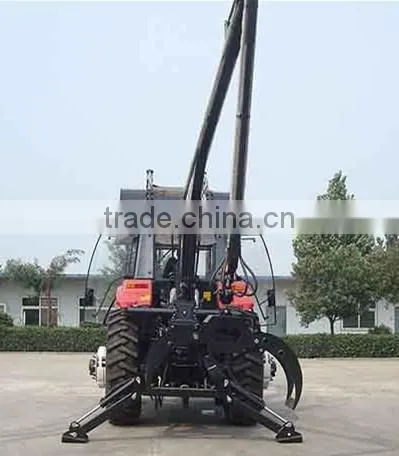

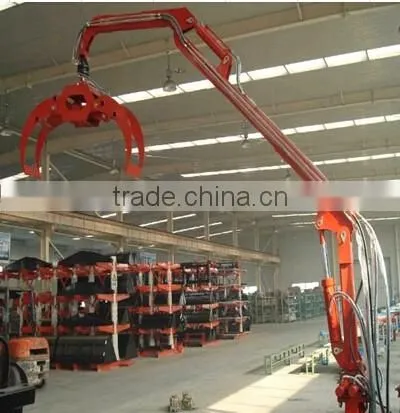

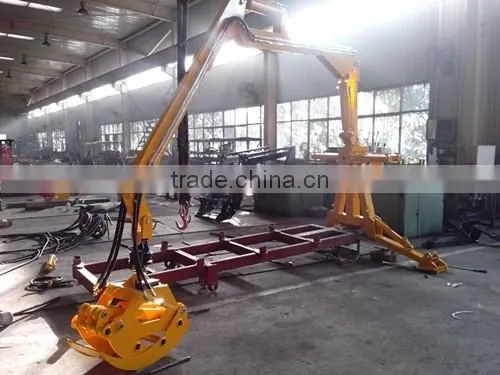

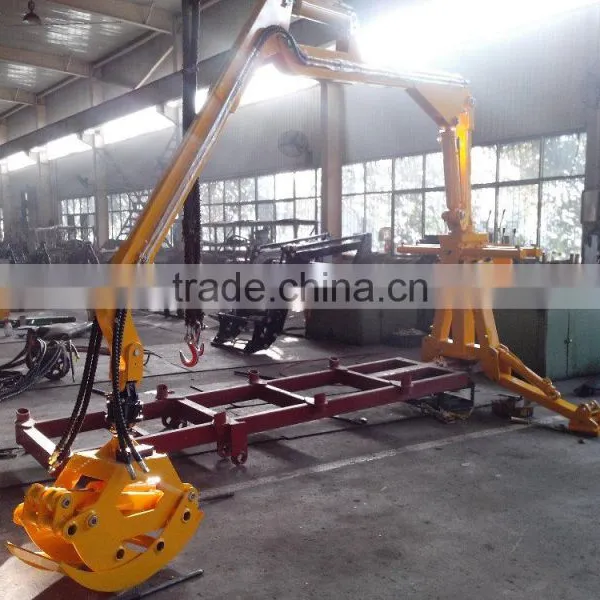

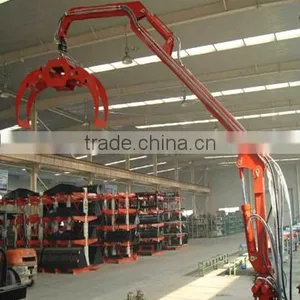

Crane Section:
Model	CR02	CR04	CR06
Weight of Crane (kg)	590	1100	1300
Max. Arm Reach	3.5 m	4.3m	6m
Max. Load height	3.5m	5.2m	6.5m
Lifing Capacity/Arm Reach (kg/m)	400/2, 300/3, 200/3.5	900/2, 760/3, 500/4, 450/4.3	990/2, 760/3, 500/4, 340/5, 240/6
Rotating Angle	370°	400°	400°
Grab Section:
Grab model	TG019	TG024	TG029
Weight of Grab(kg)	90	130	160
Max. Grab Opening Width(mm)	1140	1300	1430
Grabbing Dia. of Logs(mm)	80 - 420	70~485	75~530

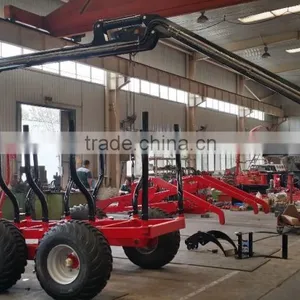

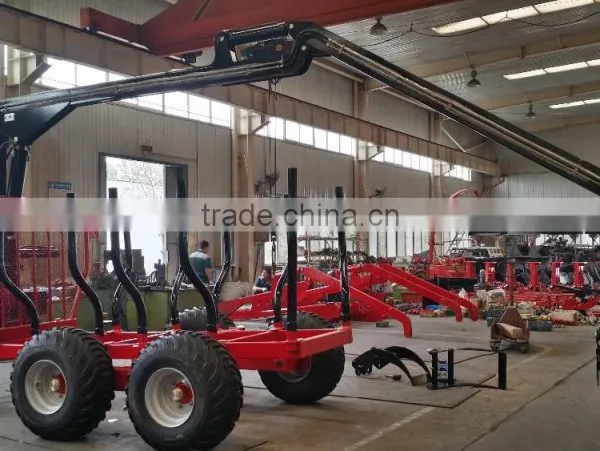

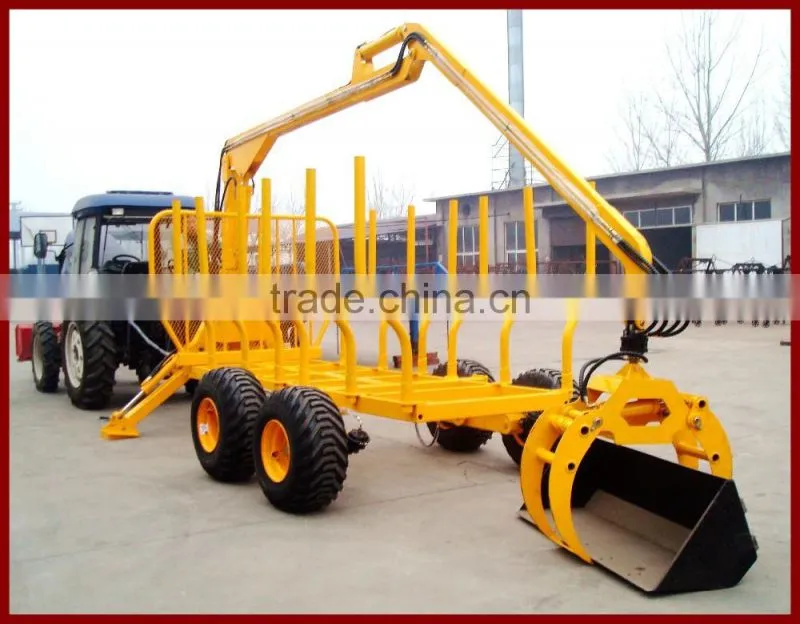

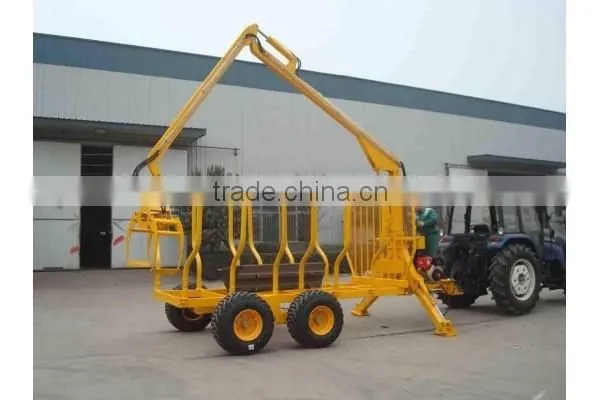

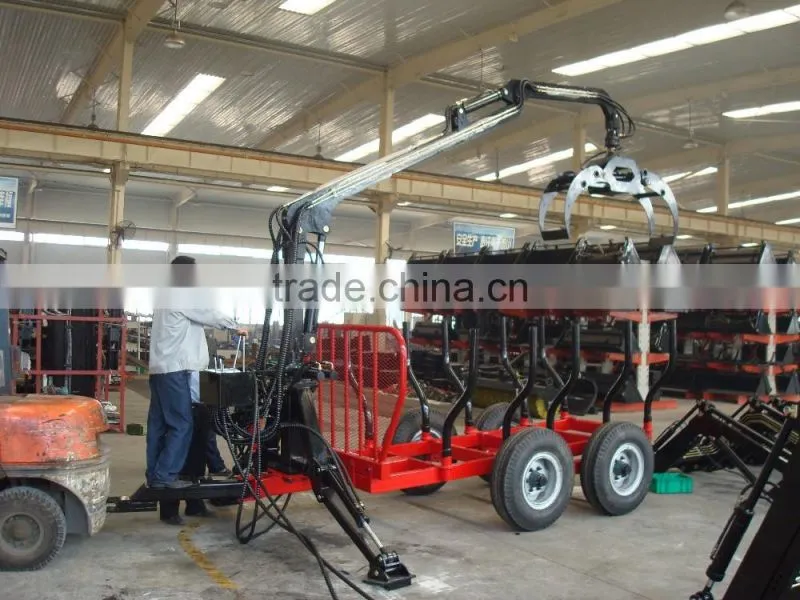

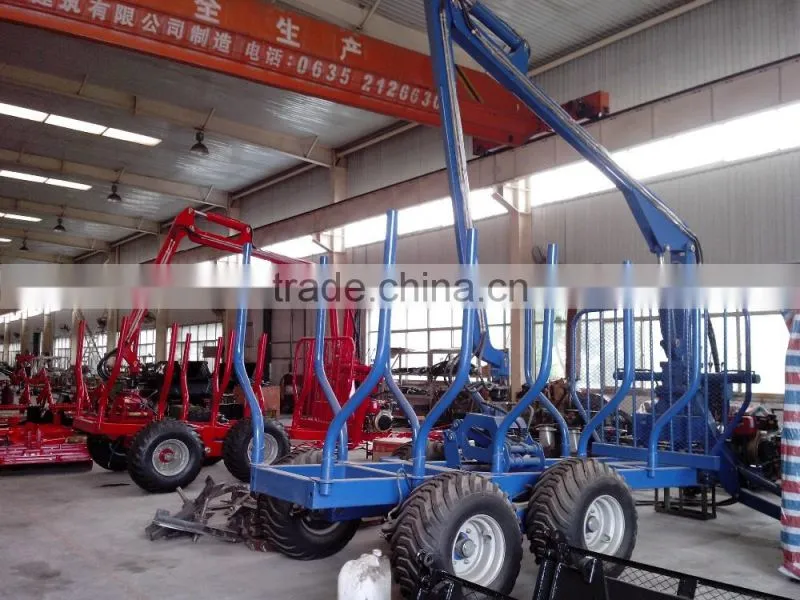

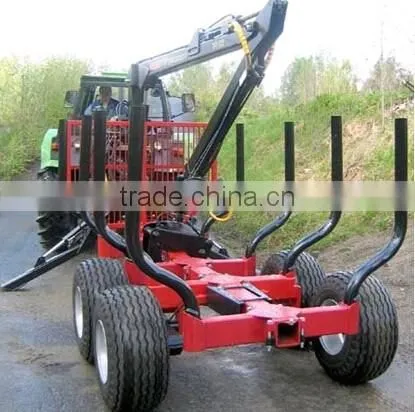

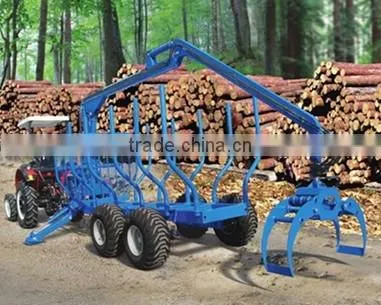

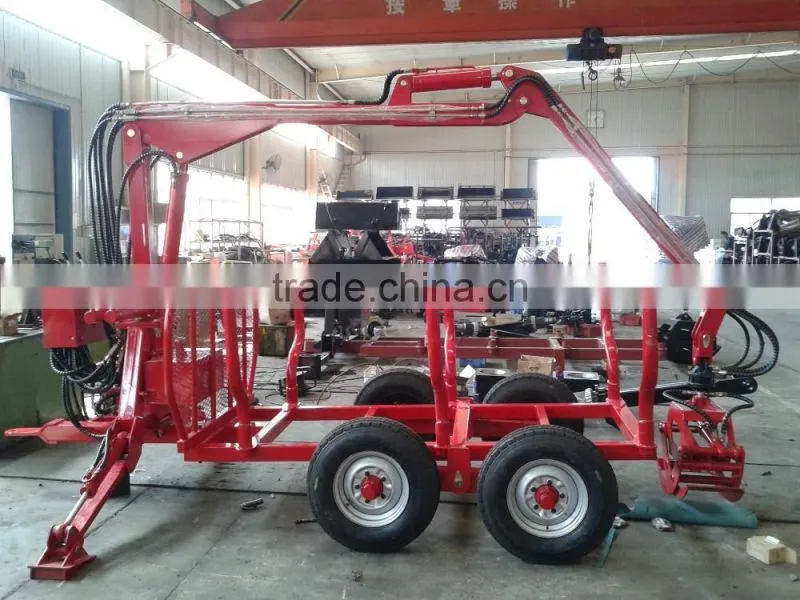

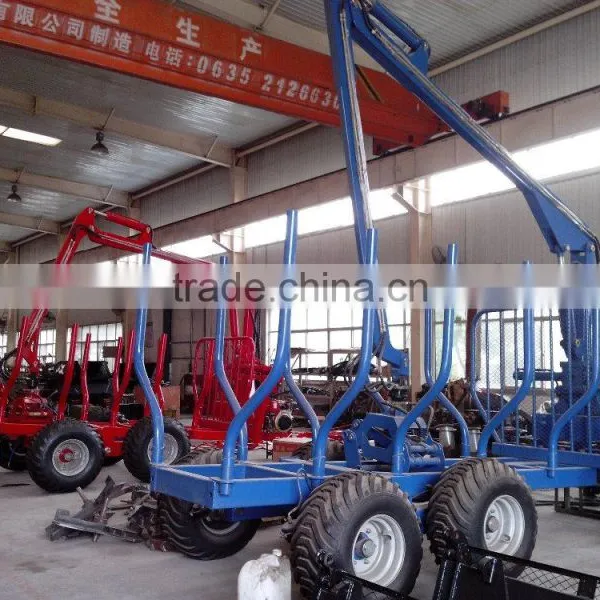

Forestry Log Trailer with Crane

model and technical data:

Loading capacity	1T	3T	5T	8T	10T	12T
Model	ZM1002	ZM3004	ZM5004	ZM8006	ZM10006	ZM12006
Matching tractor power	10-20 hp	20-40 hp	50-60 hp	70-80 hp	80-90 hp	90-100 hp
Net Weight	800kg	1500kg	2000kg	2500kg	2700kg	2900kg
Trailer Model	TR10	TR30	TR50	TR80	TR100	TR120
Loading Capacity	1000kg	3000kg	5000kg	8000kg	10000kg	12000kg
Loading Area	0.85m2	1m2	1.6m2	2.2m2	2.5m2	2.8m2
Total Length	3.6m	5.1m	5.1m	5.9m	6.3m	6.3m
Trailer Loading Length	2.0m	3.1 m	3.1 m	3.7 m	4.3 m	4.3 m
Total Width	1.4	1.6 m	1.8 m	2.2 m	2.3 m	2.5 m
Crane Model	CR02	CR04	CR04	CR06	CR06	CR06
Grapping Area	0.20 m2	0.28 m2	0.28 m2	0.28 m2	0.28 m2	0.28 m2
Reach Max.	3.5m	4.3 m	4.3 m	6 m	6 m	6 m
Lift Capacity (kg) /Outreach (m) (without Grapple and Rotator	400/2, 300/3, 200/3.5	1280/2,760/3, 500/4,450/4.3	1280/2,760/3, 500/4,450/4.3	1280/2,760/3,500/4, 340/5, 240/6	1280/2,760/3,500/4, 340/5, 240/6	1280/2,760/3,500/4, 340/5,240/6
	400°	400°	400°	400°	400°	400°
Slewing Angle	400°	400°	400°	400°	400°	400°
