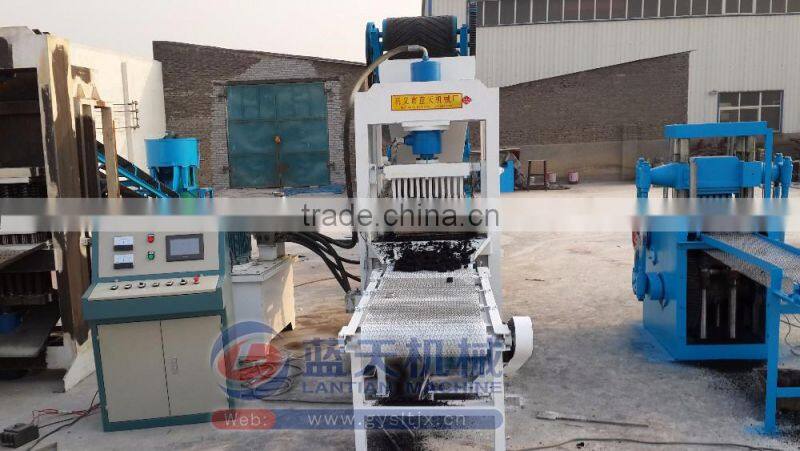

Hydraulic Pressure Shisha Charcoal Making Machine Hookah Modeling Machine
- 300 Set / Sets per Month
- Shanghai Qingdao Ningbo Guangzhou Lianyungang
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Lantian |
Model Number: | LTH-9 LTH-48 | Voltage: | 220V 380V 450V | Power(W): | 15+22+0.75KW |
Weight: | 2.2T | Dimension(L*W*H): | 1650*1140*2100 | Certification: | CE ISO |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Characteristics
Shisha Charcoal Making Machine Hookah Modeling Machine
1.high pressure
2.low energy consumption
3.30 years experiences
Hydraulic Pressure Shisha Charcoal Making Machine Hookah Modeling Machine
1.Introduce the machine
Shisha Charcoal Making Machine Hookah Modeling Machine used in wide range of fields, can be compressed coal powder, charcoal powder, mineral powder, dry powder, graphite powder, ceramic, black carbon, fly ash and smelting slag, waste slag and other waste materials or other materials difficult to molding.Mainly used in coal, building materials, chemical, food, electronic, powder metallurgy and other industries. After change the molds can produce round, square, rectangle, triangle, polygon geometry and shape such as hollow.Also can produce shisha charcoal, silver charcoal, biomass carbon, etc. Truly satisfied the different needs of customers.

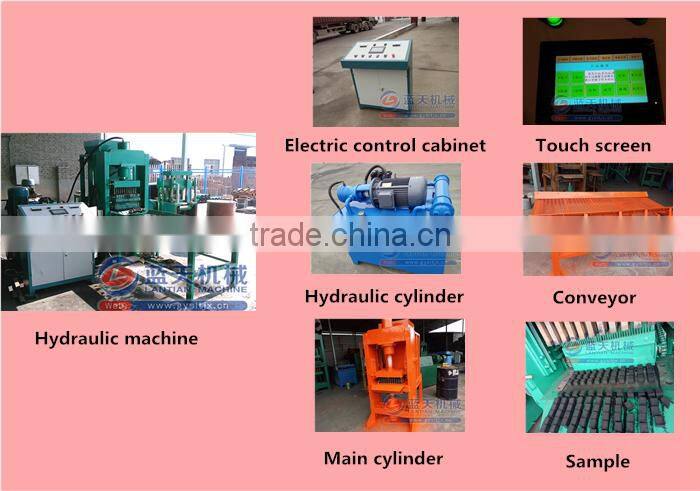

1.The hydraulic system:Shisha Charcoal Making Machine Hookah Modeling Machine use of advanced hydraulic double proportional control technology, which can easily adjust and control of hydraulic system, stable running, high efficiency, which can use different raw materials to produce the same high quality products.
2.Electric control system:The whole process of PLC intelligent control, equipped with data output device, control system also includes advanced security logic control and fault diagnosis system.
3.Vibration system:Set the shaft vibration was optimized by using special technology, the shock evenly distributed throughout the bedplate scope, thus greatly improving the consistency of product performance and stability. Unique forms of fixed platform design, can improve the product molding speed and the accuracy of product size.
2.Features
(1) Multi-usage, fully meet the needs of society, maximum for users reduce the investment risk.

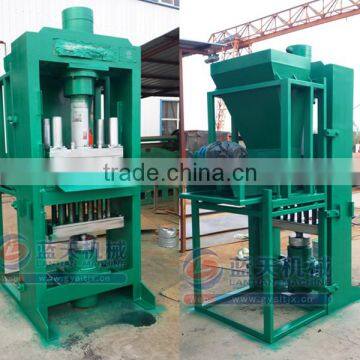

(2) Main body adopts frame type structure, high quality plates welded together, has the advantages of maintenance convenient and high strength.
(3) Shisha Charcoal Making Machine Hookah Modeling Machine adopts hydraulic drive.
(4) Replace the mould and with the corresponding materials can suppress various shapes.
3.Main Parameter
Model | LTM-9 | LTH-48 |
Capacity | 11-16pcs/time 20-40times/min | 48pcs/time 8-20times/min |
Motor | 7.5KW | 15+22+0.75KW |
Diameter Of Briquette | 20-43mm(round) 20-40mm(cubic) | 20-43mm(round) 20-40mm(cubic) |
Feeding materials | ≤3mm | ≤3mm |
Pressure | 40-60tons(adjustable) | 40-150tons(adjustable) |
Press Type | Mechanical Press | Hydraulic Press |
Machine Size | 2500*950*1550mm (include conveyor) | 3500*2000*1800mm (include conveyor) |
Weight | 1500KG | 2200KG |

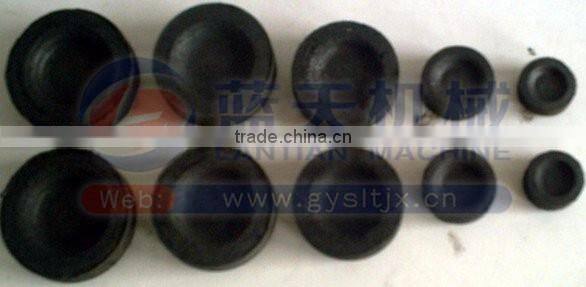

4.Show the sample
(1) Size: Briquettes can be cube (25*25*25 mm,20*25*25 mm,10*10*10 mm), round(diameter: 28 mm, 30 mm, 32 mm, 35 mm).
(2) Shape: round, square, restabgle, triangle, cylinder, diamound, cone, etc.
(3) The shape of briquettes also can be customized according to the customers' requirements.
1) Low consumption and environmental friendly.
2) Long service life and large capacity.
3) Durable molds.
4) Long burning time ,high calorific value ,high density.

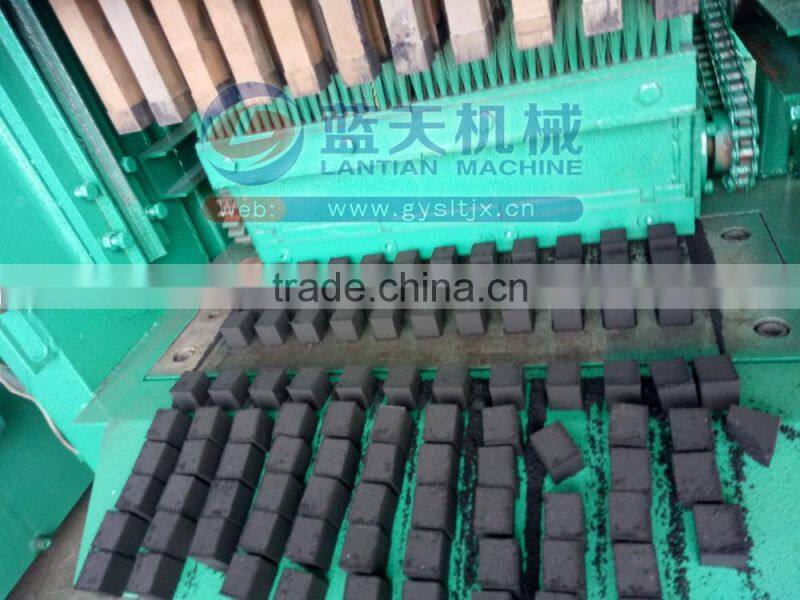

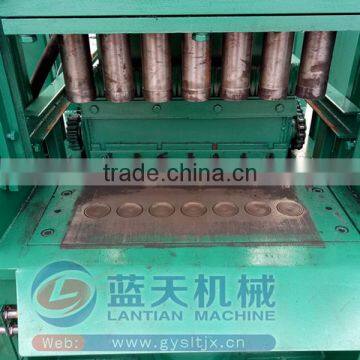

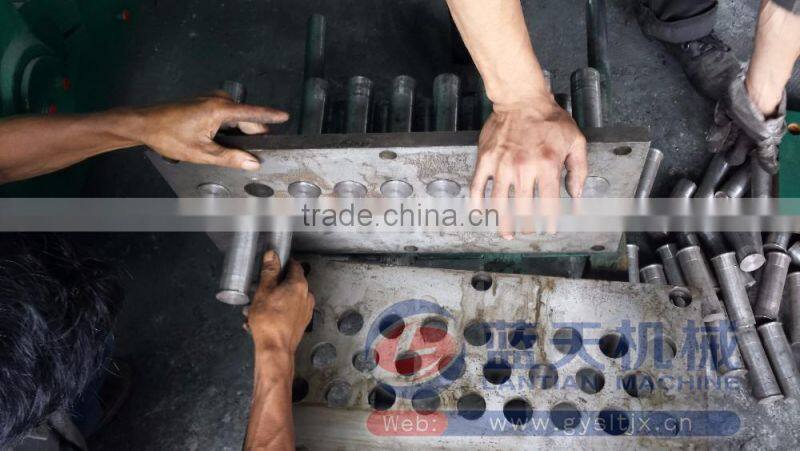

5.Show the molds
Shisha Charcoal Making Machine Hookah Modeling Machine adopts PLC control system, the operation is simple and easy to understand, and effort greatly reduced, and the machine has simple structure, convenient maintenance and low cost of investment.
Shisha Charcoal Making Machine Hookah Modeling Machine based on the original tablet press summing up experience, absorbing foreign advantages of the same kind of machine , the latest development and production of a kind of multi-functional hydraulic carbon powder molding machine.The hydraulic pressure machine adopts hydraulic transmission, integrated circuit, electric control, with a high degree of automation, low noise, long service life, easy operation, compact structure, etc.

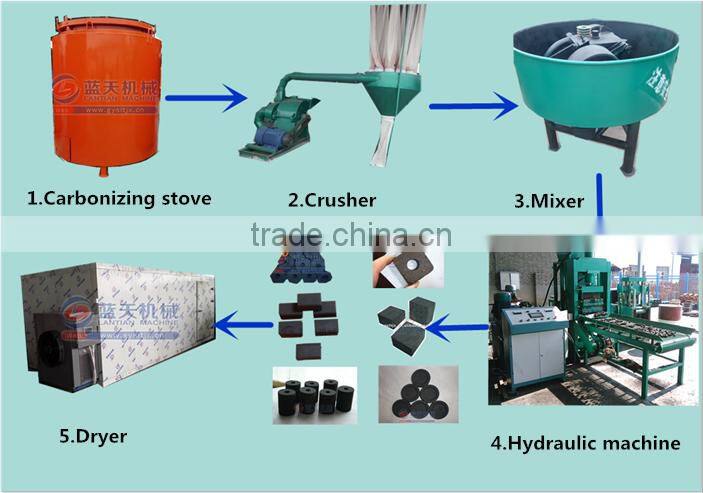

6.Production line
1.Carbonizing stove:If your raw materials not charcoal,you need to carbonize your materials into charcoal first.
1.Crusher: Crush raw materials into powder ,less than 1 mm.
2.Mixer: Mix powder with natural binder evenly.
3.Shisha Charcoal Making Machine Hookah Modeling Machine: Make the powder into any shape you want.
4.Dryer: Dry up the final briquettes till their moisture less than 5%.

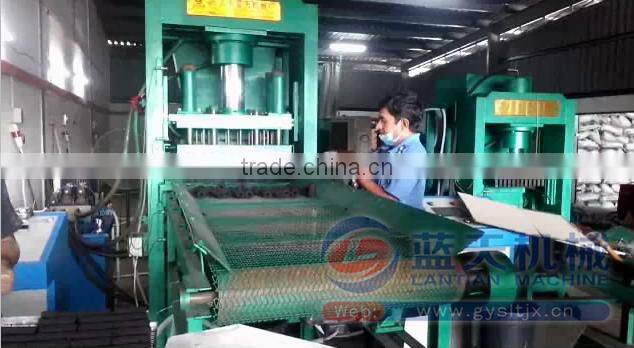

7.Customer visit our factory
We have also got the CE, ISO, SGS and other several patents.Our Shisha Charcoal Making Machine Hookah Modeling Machine are sold at home and abroad praised by customers highly for exampe Indonesia, Saudi Arabia, Malaysia, India, South Africa, Canada, Australia, Russia, Spain, Greece, Pakiswait, Turkey, Egypt, Sudan, Uzbekistan, Philippines, and other countries.

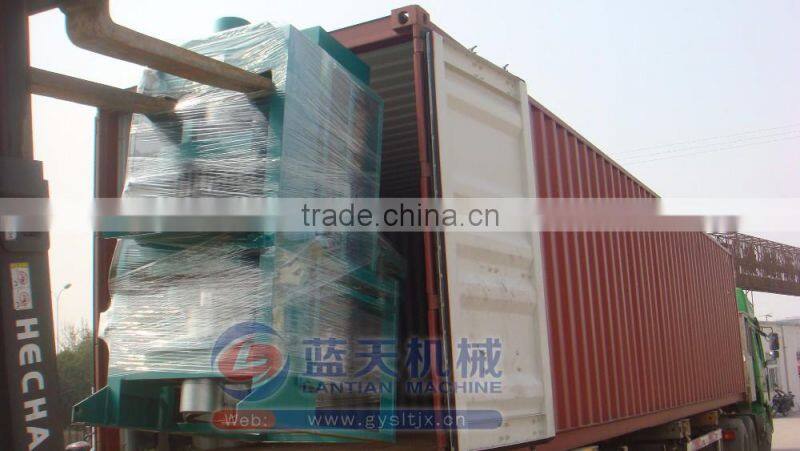

8.Packing and Shipment
9.Our service
Before the sales
1. According to the customer's requirement, provide the most suitable project design, process design and the purchase program.
2. We will guide customers to choose the best and economical machine, recover investment within short time and site inspection.
In the sales
1. Accompany you to check the working conditions of the Shisha Charcoal Making Machine Hookah Modeling Machine.
2. Lead to visit all of our machines.
3. Dozens of arrange delivery after received customer's advance payment.
After-sales
1. Engineers available to service machinery overseas to help you install, debug, build plant at the same time provide adhesive technology.
2. Guarantee the quality of equipment, when the equipment in the production have any questions we will timely solution for you.
10.Contacts information
11.Company Information
Gongyi Lantian mechanical plant is located in zhengzhou,which is a enterprise with more than 20 years history,Our factory mainly product coal equipment, charcoal equipment, drying equipment, mineral processing equipment, such as ball briquette machine, dryer, hydraulic press machine, tablet machine, granulator, extrude machine, charcoal machine, honeycomb briquet machine or other auxiliary equipment, etc.
2005 our factory have been approved for China import and export autonomy, the ISO international quality authentication enterprise, the European Union CE certification. In 2006-2008 was named the integrity of private enterprises in zhengzhou city, Has now won eight utility model patents, the appearance of patents, patent application for invention.
