2016 Year Discount Bamboo Charcoal Briquettes Making Machine Made In China

Characteristics
♥Bamboo charcoal briquettes making machine
♥Manufacturer ,Trade company
♥36 Years Manufacturer Experience

2016  Year  Discount Bamboo Charcoal Briquettes Making Machine Made In China

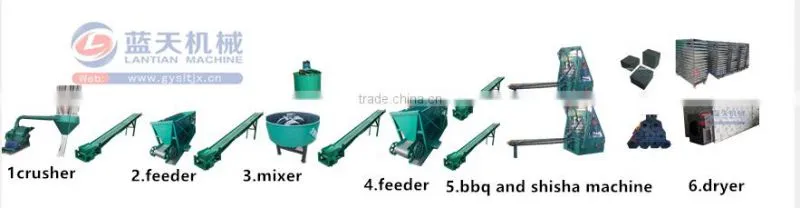

Gongyi Lantian Machanical Plant was build in the 80s, located at Gongyi City,Zhenghzou,Henan Province-China,36 years manufacturer experience in this area.We supply different kinds of machine, including charcoal  briquettes machine,bbq charcoal machine  charcoal making machine ,charcoal making machine,shisha briquette machine ,charcoal extrude machine, biomass extrude machine.also supply the related machine to conect the full product line,such as Carbionized -charcoal crusher---binder mixer-wheel mixer--conveyor--feeder--press machine--dryer, no need to buy other auxiliary from other factory, save money and energy.

To get good quality final products, the raw material is very important. the best quality raw material for the  is coconut shell charcoal ,the other normal material are as following :Coal , Hard wood charcoal, Bamboo charcoal, Rice husk chacoal ,Sugar fiber charcoal,Palm charcoal and other biomass raw material.

Different raw material

 Coal briquettes                                                               Coal powder

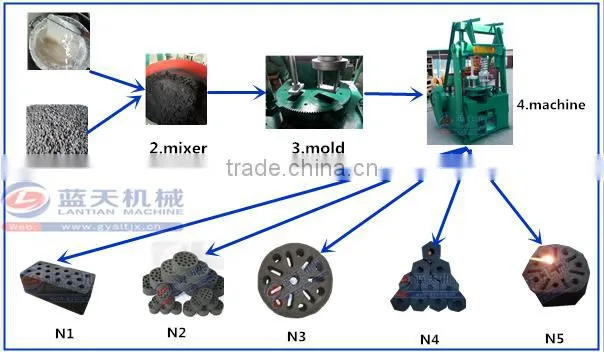

Steps to get BBQ Charcoal

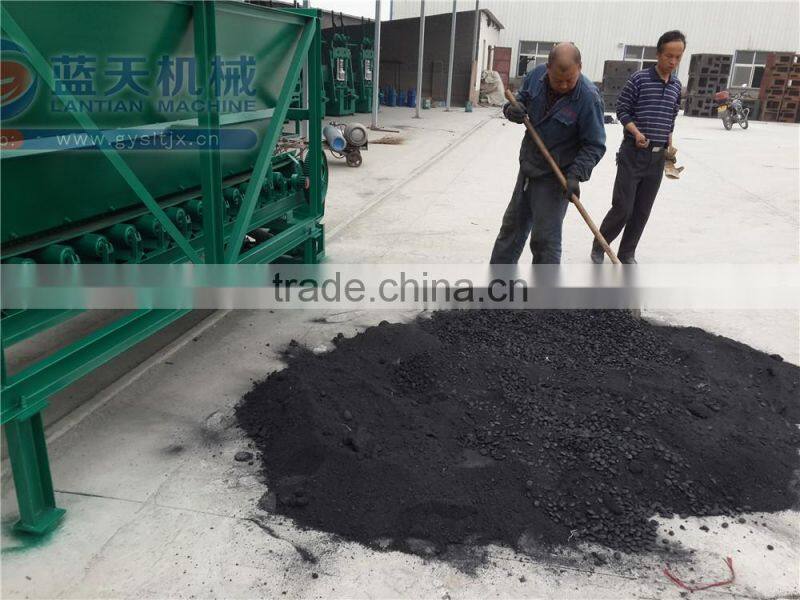

-Ready bamboo charcoal

-Use crusher crush charcoal into charcoal  powder

-Use mixer mix charcoal powder with binder

-Use briquettes making machine press products

-Different molds of machine get different shape products.

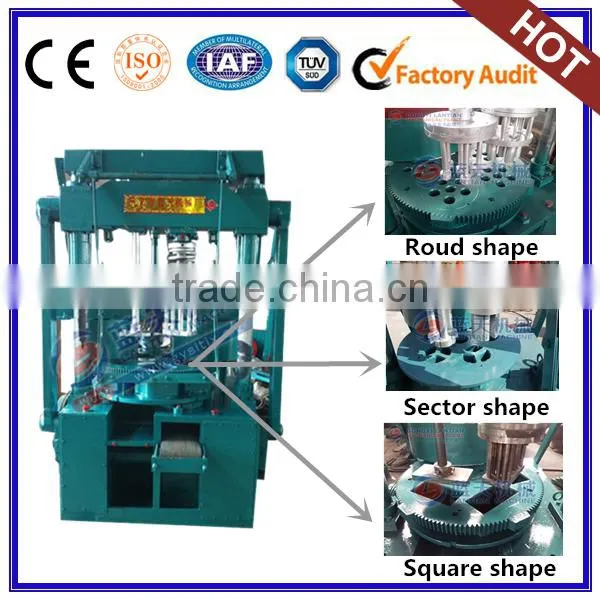

3.Different molds of bamboo charcoal briquettes making machine

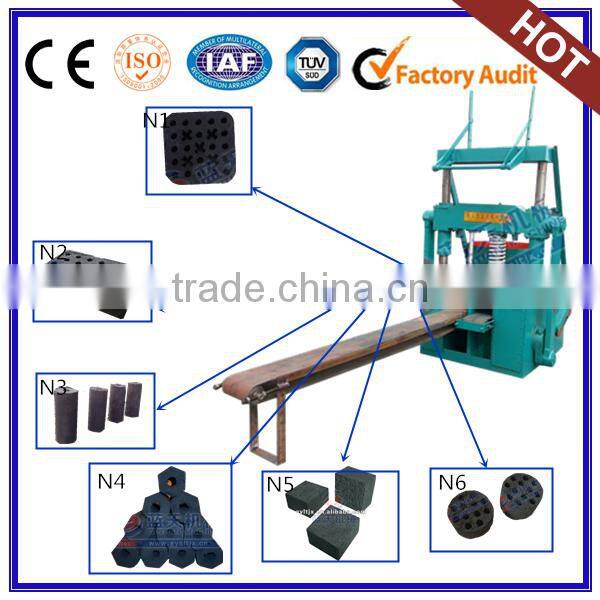

One set bamboo charcoal briquettes making  machine can produce different shape and size products, its depend changing the molds. LT series briquettes making  machine support custom molds for our customer.the normal molds are:Square shape, round shape, hexastly shape,rods shape, cubic shape , brick shape ,etc.

 Hexastyle shape   Square shape        Round shape       Brick shape                Rod shape

Product Overviews



 Structure of bamboo charcoal briquettes making machine

(1) Main body: it consists of bedplate and engine base, which are the frame of the machine.
(2) Rotating system: It is composed of motor, belt pulley, gear and tranmission shaft.
(3) Feeding system: It is made up of rotating shaft, hopper and stirrer. The axial gear drive the stirrer, mixing the coal evenly and sending the coal into the former.

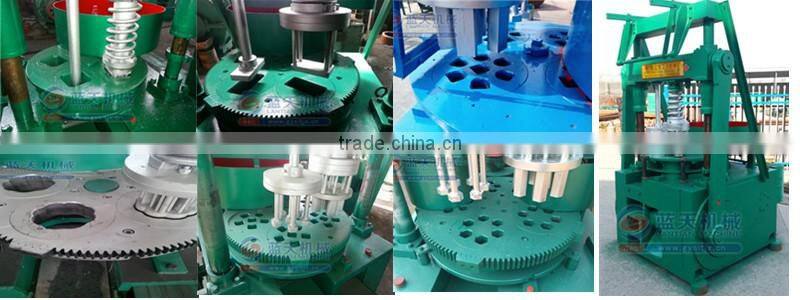

(4) Pressing system: it consists of 4 pcs slide bar, slide beam, punch, punch holder, punch head, pressrue plate, mould end and spring. When the machine working, the slide bar will drive the slide beam, punch head goes down and pressure plate will go up, then the spring retrench, then press the coal into briquettes.
(5) Discharging system: it consist of transmission rack, belt pulley, holder and conveyor belt. The conveyor betl driving and bring the shaped briquettes out of the machine. There is some roses on the transmission holder to adjust the tightness of conveyor belt.



Different type of bamboo charcoal briquettes making machine

LT-140  Type and LT-180 Type





LT-220 and LT-260 type

LTSC- 200 type
