Specifications
1. High profit and low cost in raw material2. Increase the net calorific value per unit volume after briquette
3. Energy save
Hydraulic Pressure Briquette Machine for Quicklime
E.P Roller Type Briquette Machine is characterized by high pressure and reliable performance. It is widely used to convert various powder materials into different sizes of briquettes.
This machine can be devided into three types accroding to the pressure: mechnical pressure briquette machine, hydraulic pressure briquette machine, and hydraulic pressure briquette machine equipped with screw type feeder.
Materials lists: Coal powder, Coke powder, Lignite, metal magnesium powder, aluminum powder, aluminum bauxite, graphite powder, clay, kryocide, chemical fertilizer, limestone, pigment, carbamide, siliconmanganese alloy, aluminum dross, magnesium chips, dolomite, calcium carbide powder, mud, refined iron ore, copper fine powder, various kinds of powdery materials, wastage, etc.
This type machine specialized in pressing the coal powder into briquettes, and suited in coal mine, refractory materials, metallurgy industry, chemical industry, energy industry and other industries. The materials pressed by briquette machine are energy saving, environment-friendly and easy for transportation, which improves the using ratio of wastes. This type machine has good economic and society benefits.
Model | Motor Power | Diameter of Roller | Capacity for Coal | Capacity for Coke | Capacity for Charcoal |
HSYQ-290 | 7.5 KW | 290 MM | 1-2 t/h | 1-2 t/h | 0.6-0.8 t/h |
HSYQ-360 | 11 KW | 360 MM | 2-4 t/h | 2-4 t/h | 0.8-1.3 t/h |
HSYQ-400 | 18.5 KW | 400 MM | 4-6 t/h | 4-6 t/h | 1.3-2 t/h |
HSYQ-450 | 22 KW | 450 MM | 5-7 t/h | 5-7 t/h | 2-2.8 t/h |
HSYQ-500 | 37 KW | 500 MM | 6-9 t/h | 6-9 t/h | 2.8-3.5 t/h |
HSYQ-650 | 45 KW | 650 MM | 10-15 t/h | 10-15 t/h | 3.5-4.5 t/h |
HSYQ-750 | 55 KW | 750 MM | 15-20 t/h | 15-20 t/h | 4.5-5 t/h |
HSYQ-850 | 75 KW | 850 MM | 20-25 t/h | 20-25 t/h | 5-8 t/h |

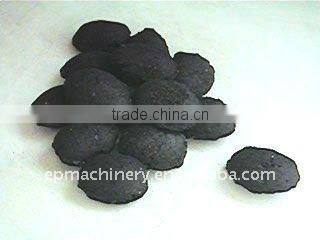

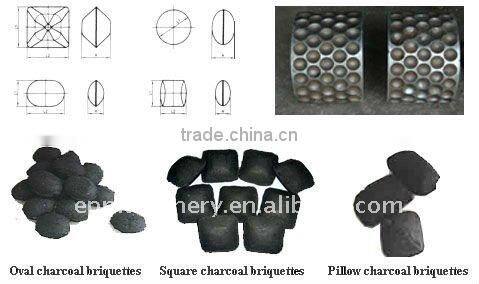

Final briquettes:
Note: please tell me about your raw material, I will offer you more details and information. Thank you!
More information or any request, you can contact me via following ways:
