Special Wear-resistant Material Charcoal Briquette Press Machine

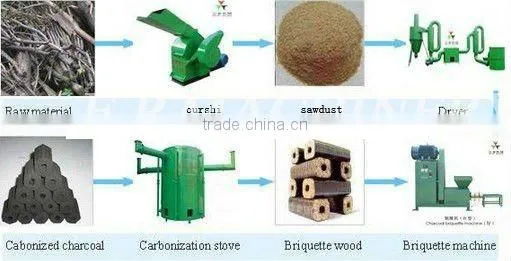

Production process:
1. Crushing the raw materials into size no bigger than 5mm. (wood, wood branch, coconut shell, peanut shell, rice husk, sunflower husk).
2. Dry the crushed materials to 8-12%.
3. Pressing raw material into briquette.
The self bonding of biomass to form a briquette involves the therm~plastic flow of the biomass. The lignin content that occurs naturally in biomass is
liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes. During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires.
4. Make wood briquette carbonized in the carbonized oven.
5. The shape of briquette can be round, quadrangular, hexagonal, etc.
Specifications of the Briquettes machine:
| Model | Power(kw) | Capacity(kg/h) | Dia of Briquettes | Size(m) | Weight(kg) | |
| HSZB-01 | 15+6 | 180-210 | 30,40,50 | 1.8x0.76x1.29 | 540/590 | |
| HSZB-02 | 11+6 gearbox | 180-210 | 30,40,50 | 1.8x0.76x1.29 | 570/610 | |
| HSZB-03 | 22+9 | 350-400 | 60,70,80,90 | 1.96x0.88x1.62 | 1000/1100 | |
| HSZB-04 | 22+9 gearbox | 350-400 | 60,70,80,90 | 1.96x0.88x1.62 | 1200/1300 |
Pictures of the spare parts and the birquettes:
Screws and Forming mould:
Heating cirlcle:
Wear-proof casting:
The final product---briquettes:

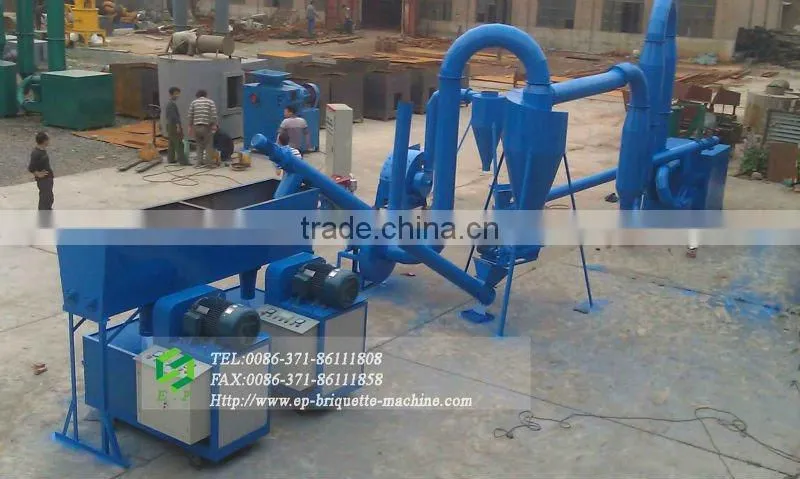

The briquette production line:
