The pioneer of environmental protection--An ideal waste solution supplier
Factory since 1995 hydraulically driven horizontal dedicated smashed sugarcane baler
1.Product introduction:
- Adopting PLC control system, hydraulically driven, horizontal bagging, bales are produced at high speed and with high yields.
- Simple to operate, easy to use and highly automated, using less labor, fed manually or automatically by conveyor.
- Applicable to compress and bag sawdust, rice hull, cotton seeds shell, hay, peanut shell and other scraps.
- Compress and bagging are finished by one time. Bales are easy to store, reducing transport cost.
- Compressed materials are easy to remove , ideal for environmental building materials, plant fertilizer, animal material, etc.
2. Machine parameter:
Model |
JPW-KT110 |
Name |
Factory since 1995 hydraulically driven horizontal dedicated smashed sugarcane baler |
Hydraulic power (Ton) |
50/60 |
| Bale size (L*W*H mm) | 750*430*310 |
Feed opening size (L*W mm) |
1000*700 |
Output (Ton/hr) |
2-2.5 |
Package size (W*H mm) |
740*1150 |
Machine size (L*W*H mm) |
3920*2900*1700 |
Brand |
CSJ |
Voltage (customizable) (V/HZ) |
380V / 50HZ |
Power (Kw/Hp) |
15Kw/20Hp |
Machine weight (KG) |
2700 |
3.Brand Of Baler Parts:
Crucial Components Allocation | |
HYDRAULIC TECHNIQUE |
REXROTH (Germany TECHNIQUE) |
HYDRAULIC ELEMENTS |
YUTIEN,HYDOR (TAIWAN Brand) |
SEALING PARTS |
HALLET (UK brand) |
ELECTICAL ELEMENTS |
DELIXI (Europe brand ) |
OIL PIPE |
ZMTE (Europe brand) |
MOTOR |
JIABAO (Brand-specific Customized hydraulic motor, without junction axis ,lower noise, no maintenance and energy saving, safe and reliable |
PUMP |
JINGGONG (Taiwan investment) |

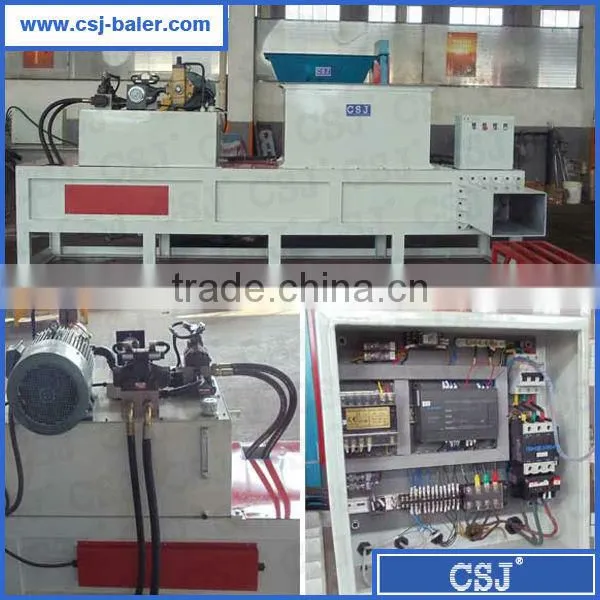

4.Details of machine photoes:
5.Models for options:
| Model | Hydraulic force (Ton) | Block size (L*H mm) | Feeding opening size ( L*H mm ) | Capacity (T/H) | Voltage (customizable) v/Hz | Power (kw/hp) | Machine size (L*W*H mm) | Machne weight (kg) | Packge size (W*H mm) |
| JPW-KT90 | 40/50 | 750*430*310 | 1000*700 | 1.5-1.8 | 380V/50HZ | 11kw/15hp | 3920*2880*1700 | 2400 | 740*1150 |
| JPW-KT110 | 50/60 | 750*430*310 | 1000*700 | 2-2.5 | 380V/50HZ | 15kw/20hp | 3920*2900*1700 | 2700 | 740*1150 |
| JPW-KT140 | 60/80 | 750*430*310 | 1000*700 | 2.5-3 | 380V/50HZ | 18.5kw/25hp | 3920*2880*1700 | 3000 | 740*1150 |
| JPW-KT180 | 80/100 | 750*430*310 | 1000*700 | 2.5-3 | 380V/50HZ | 22kw/30hp | 4250*3100*1700 | 4300 | 740*1150 |
6.Accessaries of complete equipment-- straw compress baler :
7.Certification:
8.Production process:
9.Packing for shipment:
10.In exhibition:
11.Golden supplier for below companies:
12.About us:
- Jiajing(CSJ)’s factory is located in Nantong, Jiangsu Province and our marketing department is located in Shanghai.
- We are commited in the research and development of hydraulic balers since 1995, our target is to do the latest, the most fashionable and the most high-end product.
- Our product which has 7 series about 50 size has widely used in paper making,textile,commodities,food etc..
- Got CE ISO TUV SGS and so on Certifications
- We are the supplier of Nike, Wal-mart, Unicharm, Dumex, JNJ,RT-Mart and many other World famous manufactures and wholesalers.
- Our company is the professional production factory of hydraulic baling press (compressed) machine, which has nearly 20 years experience in this field, and have been exported more than 90 countries.
After many years technology research and development , we have obtained 21 national patents and 3 invention patents, and we have the rights of self-management import and export , No need the agent and the third party platform, that can save the customer's cost and time.
At the same time, especially in equipment parts supply after clients use and the good after-sales service ,we have strong guarantee about this , hope you could pay attention about our company , thank you.
13.Our service:
- One year warranty for whole machine.
- Engineers available to service machinery overseas.
- 24 hours technical support by e-mail.
14.Contact us:
