Introduction
Hydraulic Straw Baling Machine
Model |
JPW-KT90 |
JPW-KT110 |
JPW-KT140 |
Hydraulic power (Ton) |
40/50 |
50/60 |
60/80 |
Packaging size |
750*430*310 |
750*430*310 |
750*430*310 |
Feed opening size |
1000*700 |
1000*700 |
1000*700 |
Capability (Tons/hr) |
1.5-1.8T/hour |
2-2.5T/hour |
2.5-3T/hour |
Power |
11KW/15HP |
15KW/20HP |
18.5KW/25HP |
Machine size |
3920*2880*1700 |
3920*2900*1700 |
3920*2880*1700 |
Weight (Kg) |
2400 |
2700 |
3000 |
Voltage |
Customizable |
||
Straw Baling Machine:
1. PLC control system, hydraulic transmission, horizontal level bagging, out bag with high speed and high yield.
2. Simple operation , easy use and high degree of automation, using artificial feeding or automatic feeding conveyor.
3. Suitable for sawdust, the cotton seed shell, peanut shells husk etc material compression
4. Compressing and bagging by one time, convenience for store and reduce transportation cost.
5. After compressed, easy to remove loose, it can be used in environmental building materials, farmland fertilizer, such as mushroom cultivation and so on.
Configuration
Hydraulic technique |
REXROTH (Germany technique) |
Hydraulic elements |
YUTIEN (TAIWAN brand) |
Sealing parts |
HALLITE (UK brand) |
Electrical elements |
DELIXI (Europe brand) |
Oil pipe |
ZMTE (Sino-us joint venture) |
Motor |
JIABAO (Brand-specific Customized ) |
Pump |
JINGGONG ( Taiwan brand) |
Application
Baling Machine suitable for : sawdust, wood shaving, powder, straw, scrap, hay, etc.

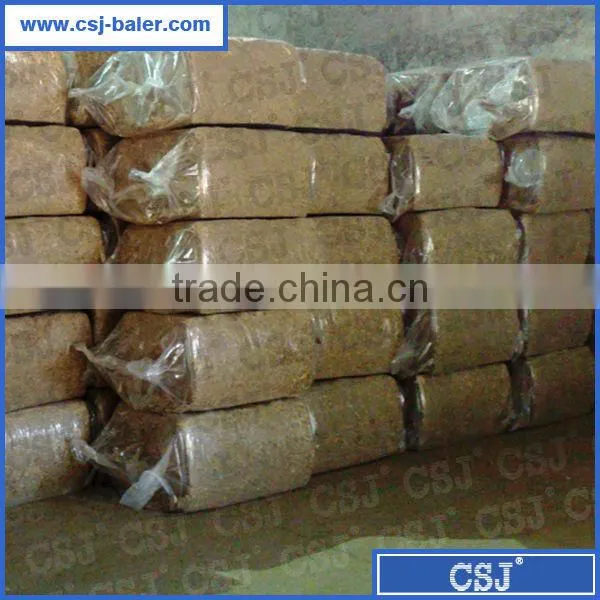

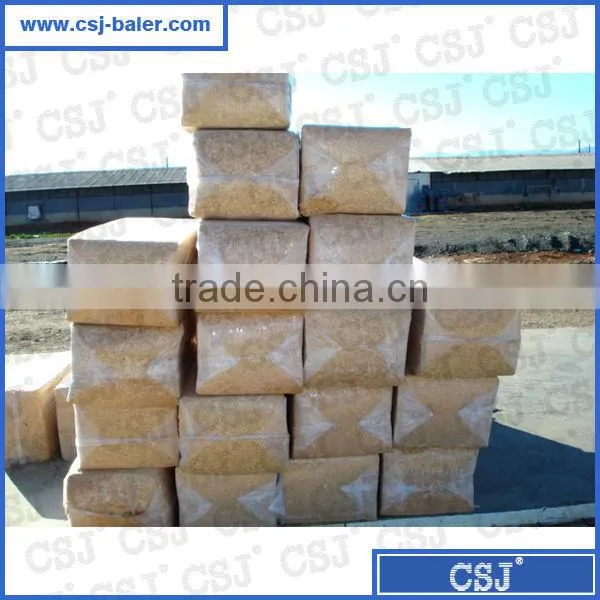

Package
Straw Baling Machine packaging as following:
Service
1. Warranty for one year
2. Our engineers will install the machine and provide training.
3. We provide overall solutions for waste discharging systems for free;
assist you to solve any possible problem in the discharging process.
4. In case of any problems, please contact us, we shall communicate with you
and address it at the first time.
About us
1. Specializing in researching and developing of hydraulic balers since 1995,
2. Exported products to 92 countries&serviced more than 2000 well-known companies.
3. Have the rights of import and export, no need the agent, save the cost and time.

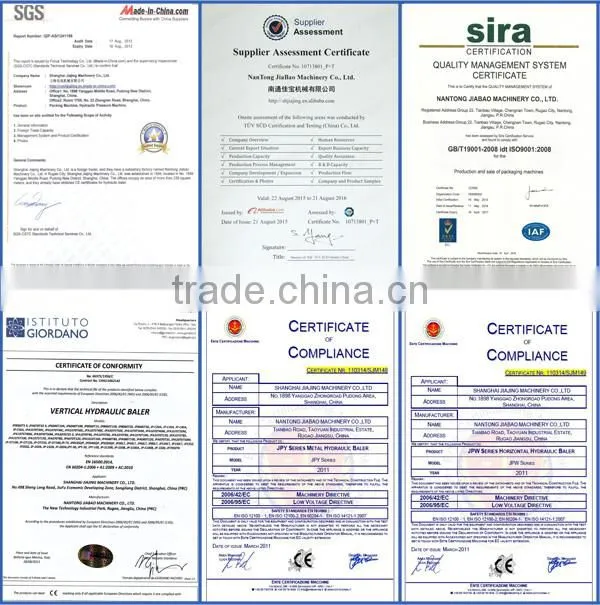

CE, ISO9001:2008, SGS, TUV cerification
Thea
SHANGHAI OFFICE--NANTONG JIABAO MACHINERY CO., LTD
Tel:0086 2161400508-819 Fax:0086 21 58338367
Whatsapp:0086 13817395363 Skype:jiajing819-1
Website:
