Introduction

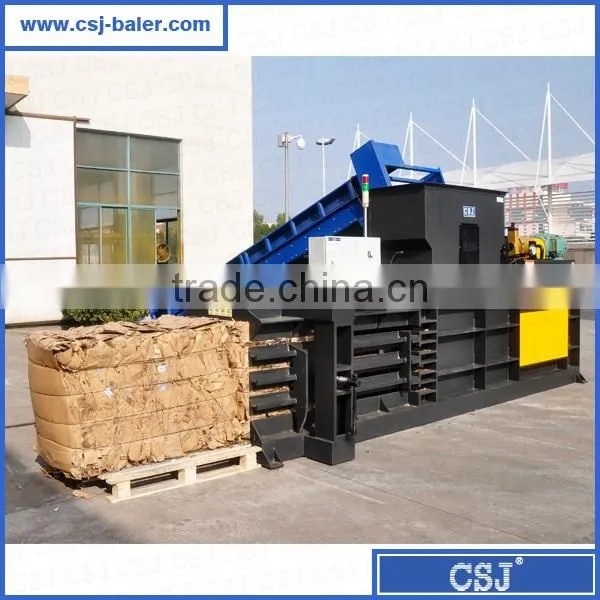

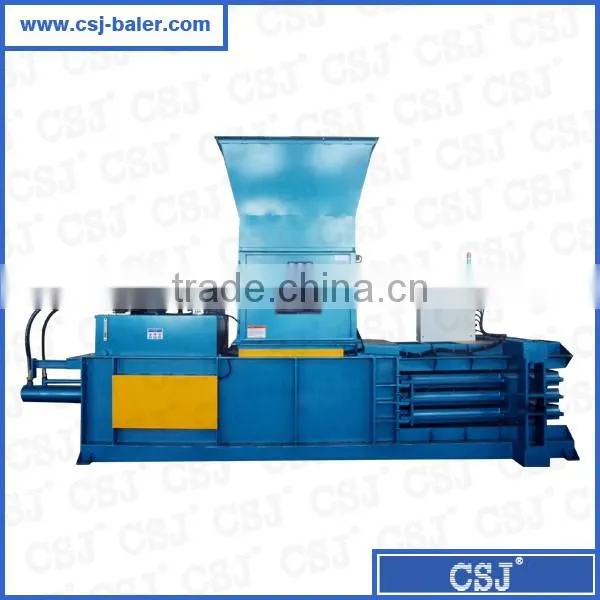

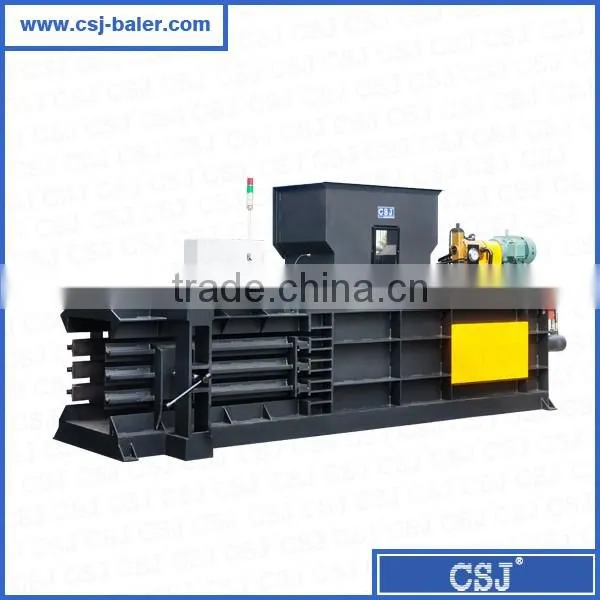

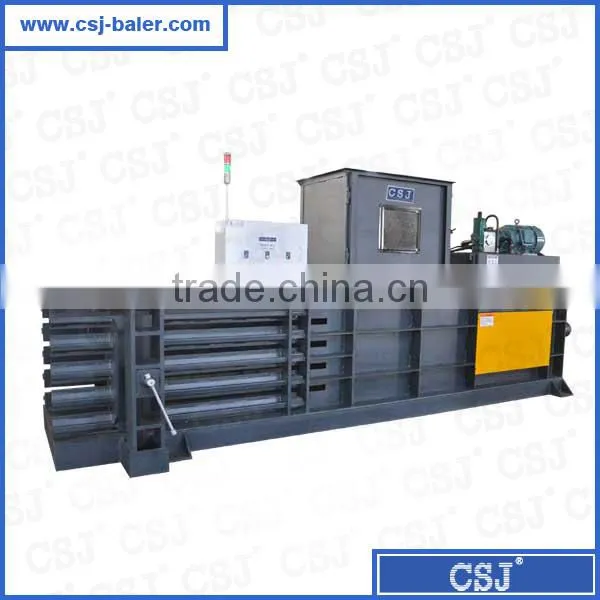

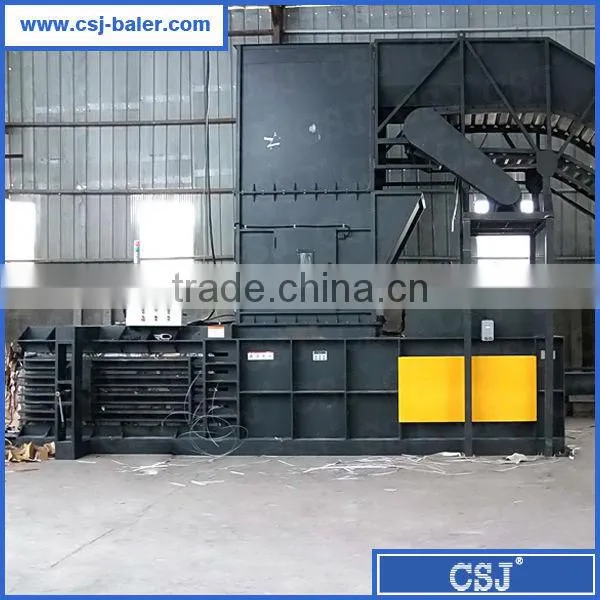

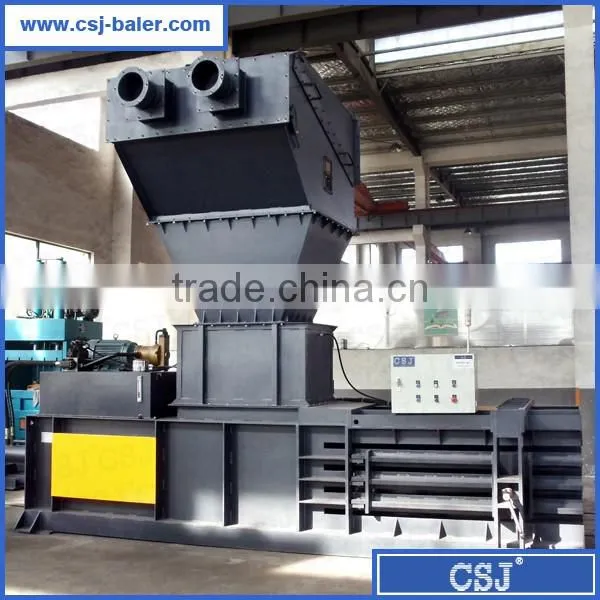

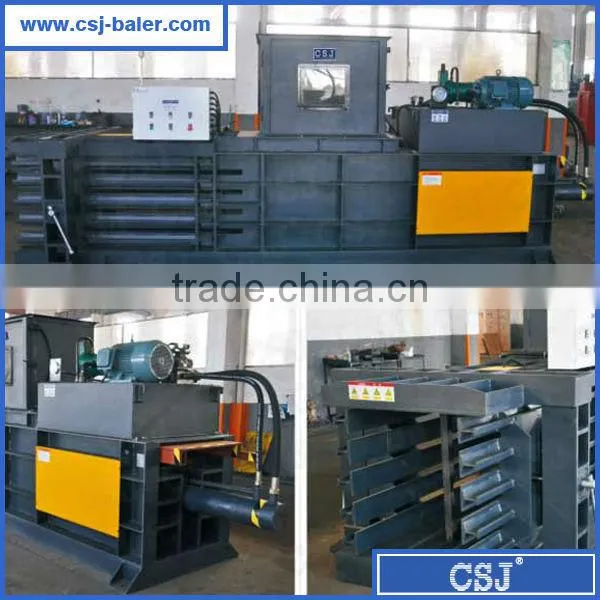

Hydraulic Scrap Baling Machine
Model |
JPW40F |
JPW80F |
JPW120F |
Hydraulic power (Ton) |
40 |
80 |
120 |
Bale size |
720*720*(500-1300) |
800*1000*(500-1800) |
1100*1200*(500-1800) |
(W*H*L) mm | |||
Feed opening size |
1000*720 |
1400*800 |
1800*1100 |
(L*W)mm | |||
Bale weight(Kg) |
200-400 |
400-600 |
900-1200 |
Bale lines |
4 |
4 |
5 |
Bale density (Kg/m^3) |
250-350 |
400-500 |
600-700 |
Output (Ton/Hr) |
05.-1.5 |
2-3 |
5-8 |
Power |
11KW/15HP |
22KW/30HP |
37KW/50HP |
Voltage |
Customizable |
||
Scrap Baling Machine :
1. PLC control system, can inspect feeding automatically, automatic compression
and other processes, also can be operated manually.
2. Convenient, safety, the tie wire by manual, one-off bale out.
3. Adopt the vessel classification of welding, ensure the equipment more stable.
4. Open type structure makes packaging conveniently, and improves work efficiency.
5. The British imported seals, improve the service life of the cylinder.
Configuration
hydraulic technique |
REXROTH (Germany technique) |
hydraulic elements |
YUTIEN (TAIWAN brand) |
sealing parts |
HALLITE (UK brand) |
Electrical elements |
DELIXI (Europe brand) |
oil pipe |
ZMTE (Sino-us joint venture) |
motor |
JIABAO (Brand-specific Customized ) |
Pump |
JINGGONG (Taiwan brand) |
Application
Baling Machine suitable for: cardboard, textile, fiber, waste paper, scrap, plastics, garment, etc.
Packaging
Scrap Baling Machine packing as following:
Service
1. Warranty for one year
2. Our engineers will install the machine and provide training.
3. We provide overall solutions for waste discharging systems for free;
assist you to solve any possible problem in the discharging process.
4. In case of any problems, please contact us, we shall communicate with you
and address it at the first time.
About us
1. Specializing in researching and developing of hydraulic balers since 1995,
2. Exported products to 92 countries&serviced more than 2000 well-known companies.
3. Have the rights of import and export, no need the agent, save the cost and time.
4. Factory located in Nantong, pretty close Shanghai. Office in Shanghai, easy to visit.
5. Attending professional exhibitions about baler machine.

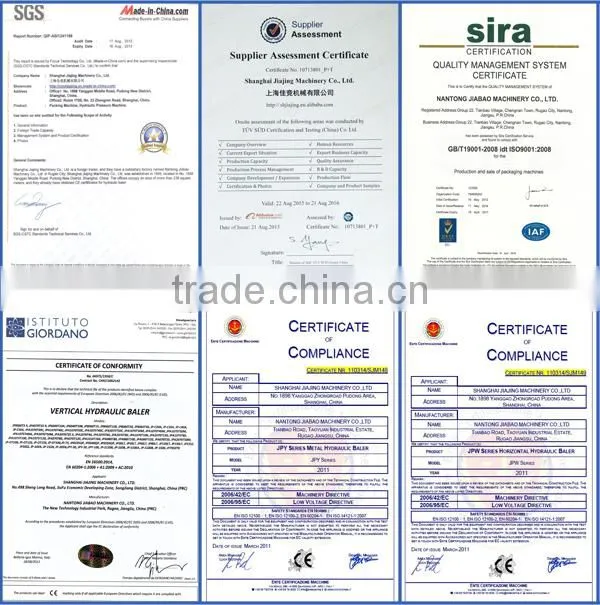

CE, ISO9001:2008, SGS, TUV cerification
