Professional in manufacturing all kinds of balers
wastes compressor - golden supplier,your best choice
Introduction of Manual Baling Machine :
* Easy operation and provide five levels of hydraulic power. wide range of application ,
* Usually used for recycling a variety of conventional materials, high cost-efficiency,
and be applied for small and medium sized company and waste recycling industries.
* Suit for compress scrap paper, plastic etc.
* The machine use the hydraulic drive with independent plate balance device.
* Controlled by manual valve, easy to operate.
* Adopt England brand sealing parts; improve the life time of oil cylinder.
* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.
* Adopt Taiwan brand superposition type valve group.
* Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump.
pt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pu.
Perameter of Manual Baling Machine :
| Model | JP-C15A | JP-C20A | JP-C30A | JP-C40A | JP-C50A |
| Hydraulic power | 15T | 20T | 30T | 40T | 50T |
| Bale size(L*W*H) | 800*600*(400-800) | 1000*700*(400-800) | 1100*700*(450-900) | 1100*750*(450-900) | 1100*750*(450-900) |
| Feed opening size(L*W) | 800*450 | 1000*500 | 1100*500 | 1100*500 | 1100*500 |
| Output(Bales/Hr) | 6-8 | 6-8 | 5-7 | 5-7 | 4-6 |
| Bale weight(Kg) | 50-120 | 90-160 | 120-200 | 200-250 | 250-350 |
| Power(Kw/Hp) | 3Kw/4Hp | 4Kw/5.5Hp | 5.5Kw/7.5Hp | 5.5Kw/7.5Hp | 7.5Kw/10Hp |
| Machine Size(L*W*H)mm | 1070*800*2850 | 1400*940*3000 | 1430*1090*3030 | 1530*1200*3220 | 1530*1290*3230 |
| Machine Weight(Kg) | 800 | 850 | 1340 | 1500 | 1700 |
Suggestion when buying Press Baler :
Above models are our standard machine, the vertical baler can be a customized product, so in order to serve you better with the most appropriate goods & service, please inform us below questions:
1. What material you mainly want to bale?
2. What is your expected bale size or weight?
3. What capacity you want it to perform?

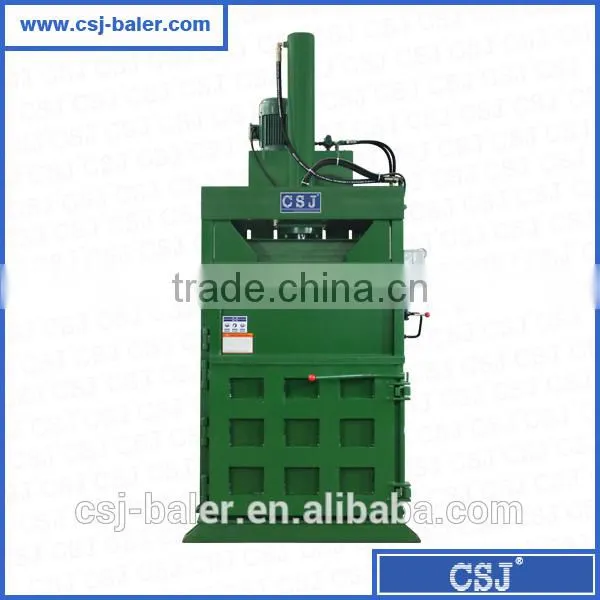

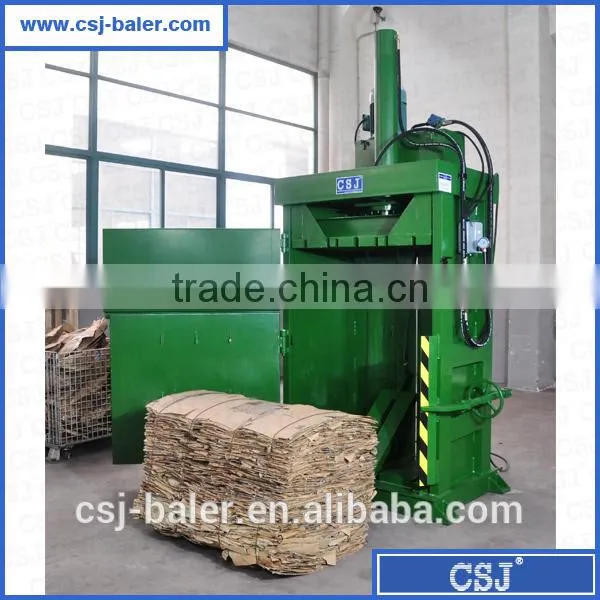

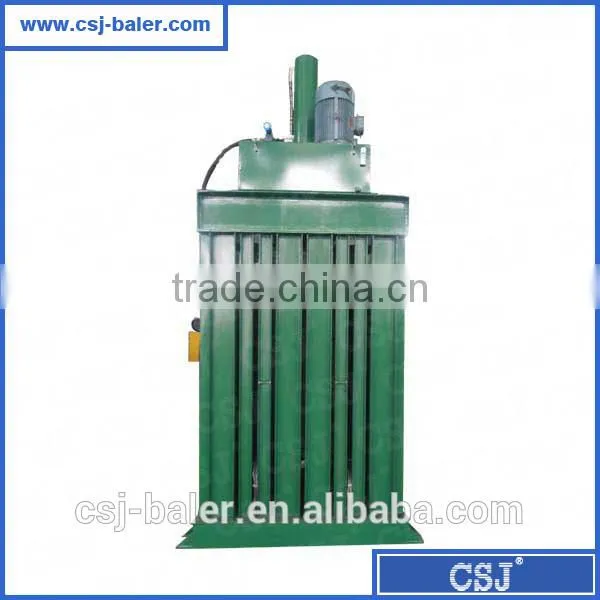

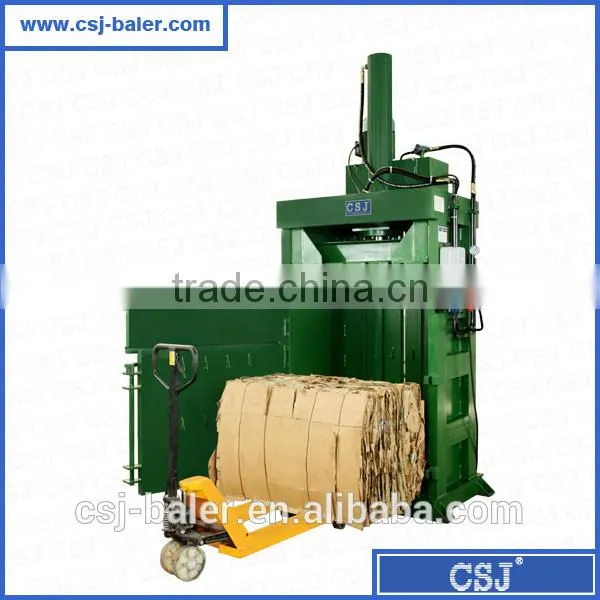

Photoes of Manual Baling Machine :
Our Factory
Certificate of CE TUV SGS
About us
- Jiajing(CSJ)’s factory is located in Nantong, Jiangsu Province and our marketing department is located in Shanghai.
- We are commited in the research and development of hydraulic balers since 1995, our target is to do the latest, the most fashionable and the most high-end product.
- Our product which has 7 series about 50 size has widely used in paper making,textile,commodities,food etc..
- Got CE ISO TUV SGS and so on Certifications
- We are the supplier of Nike, Wal-mart, Unicharm, Dumex, JNJ,RT-Mart and many other World famous manufactures and wholesalers.
Our Team
On Exhibition
Machine Package
FAQ
1. How long is the delivery time? within 15-25days after receiving deposit
2. Packing term: wooden case, loaded in 20’ container.
3. Warranty time: one year for whole machine, provide spare parts and English manual
4. Installment: No need to disassemble. Only need to fill hydraulic oil and connect to the main supply, and then you can start to operate.
5. Will test the machine before shipment? Yes, we will do it.
6. How about your export experience? We have export right and already export to more than 90 countries
7. Are you factory of baler machine? sure, our factory established in 1995
Our Service
- Warranty:12 moths.
- Engineers available to service machinery overseas.
- 24 hours technical support by e-mail.
