The pioneer of environmental protection--An ideal waste solution supplier
Walmart stable supplier horizontal semi-automatic hydraulic bottle blowing air compressor
1.Product introduction:
- Horizontal semi-automatic hydraulic baler with lift door (closed mouth).
- PLC control system, can inspect feeding automatically, compressed directly to the front everttime, improve compression density, convenient feeding.
- Up and down hydraulic door-open, one-off bale out, covers less area, conveninet, safety.
- Feeding material by conveyor, air-blower or manually.
- Applicable to hard plastic, film, PET bottle, fiber and any other solid plastic industry.
2.Machine parameter:
Model |
JPW100BL |
Hydraulic power (Ton) |
100 |
| Bale size (L*W*H mm) | 1100*800*(300-1200) |
Feeding opening size (L*H mm) |
1400*1100 |
Bale density (kg/m3) |
400-500 |
Output (Bales /hr) |
2-4 |
| Bale weight (kg) |
400-650 |
| Name | Walmart stable supplier horizontal semi-automatic hydraulic bottle blowing air compressor |
Brand |
CSJ |
Bale lines |
4 |
Out-bale way |
one-off bale out |
Power (Kw/Hp) |
30 Kw/40 Hp |
Machine weight (Ton) |
9 |
3.Brand Of Baler Parts:
Crucial Components Allocation | |
HYDRAULIC TECHNIQUE |
REXROTH (Germany TECHNIQUE) |
HYDRAULIC ELEMENTS |
YUTIEN,HYDOR (TAIWAN Brand) |
SEALING PARTS |
HALLET(UK brand) |
ELECTICAL ELEMENTS |
DELIXI(Europe brand ) |
OIL PIPE |
ZMTE(Europe brand) |
MOTOR |
JIABAO (Brand-specific Customized hydraulic motor, without junction axis ,lower noise, no maintenance and energy saving, safe and reliable |
PUMP |
HENGYUAN (Taiwan investment) |

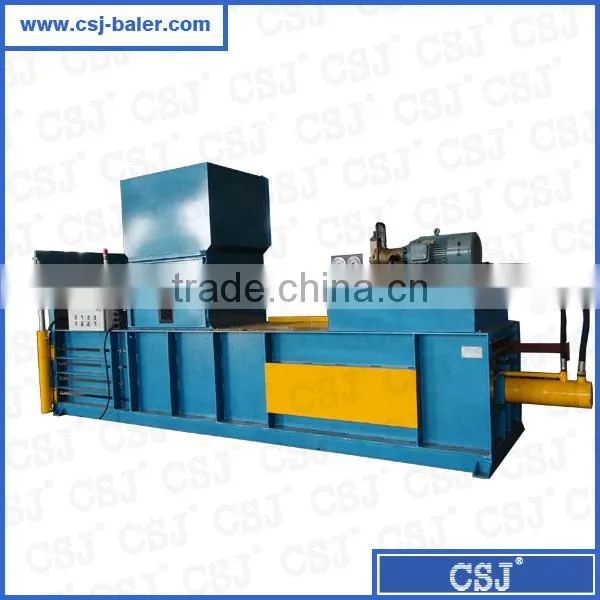

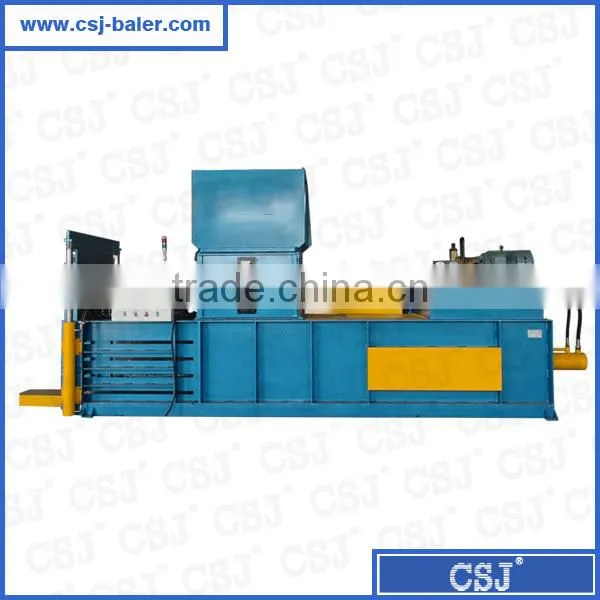

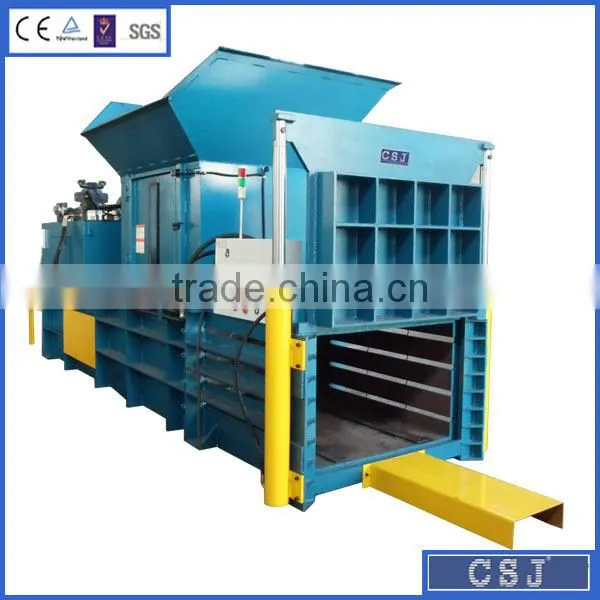

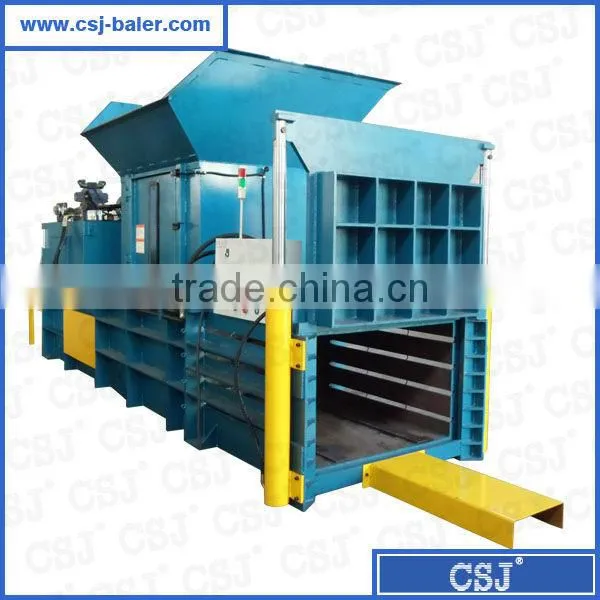

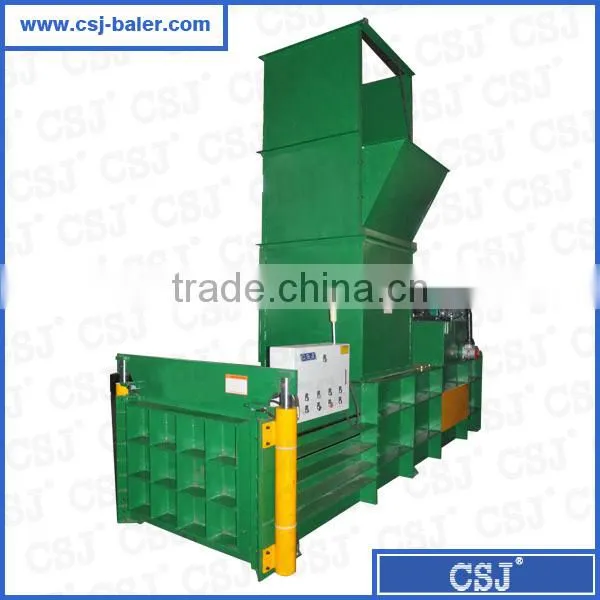

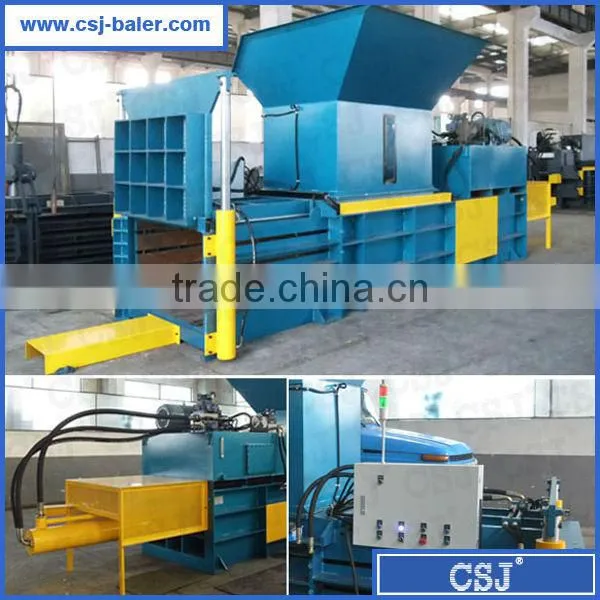

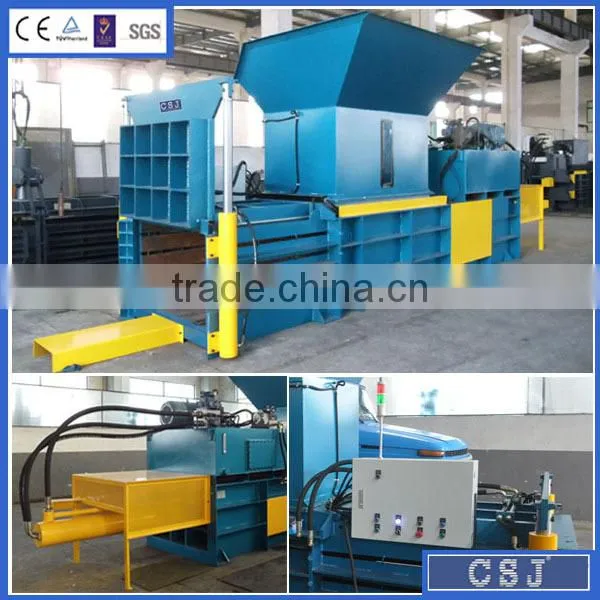

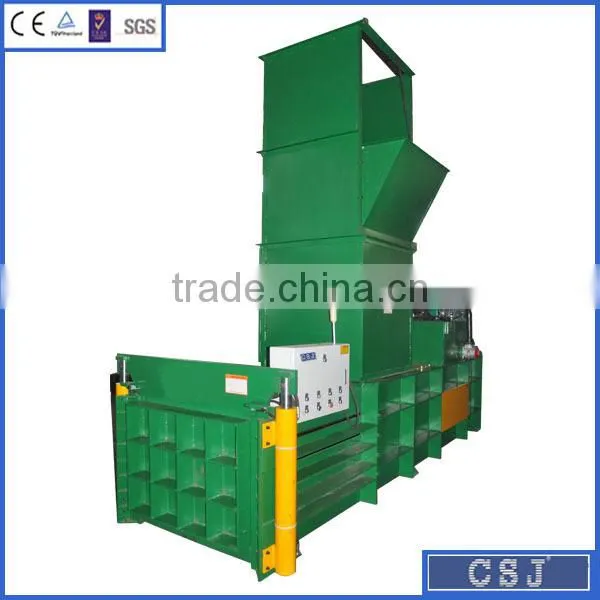

4.Details of machine photoes:
5.Models for options:
Model |
Hydraulic power (Ton) |
Bale size (W*H*L mm) |
Feed opening size(L*W mm) |
Bale weight(kg) |
Bale density(kg/m3) |
Output (Ton/hr) |
Bale lines |
Out-bale way |
Power(kw/hp) |
Bale wire(L*W*H mm) |
Machine weight (Ton) |
JPW60BL |
60 |
750*850*(300-1100) |
1200*750 |
250-400 |
250-350 |
1-2 |
4 |
One-off bale out |
18.5kw/25hp |
6450*1350*1955 |
8.1 |
JPW80BL |
80 |
1000*800*(300-1100) |
1200*1100 |
350-500 |
300-400 |
1.5-3 |
4 |
One-off bale out |
22kw/30hp |
6750*1770*2000 |
8.5 |
JPW100BL |
100 |
1100*800*(300-1200) |
1400*1100 |
400-600 |
400-500 |
2-4 |
4 |
One-off bale out |
30kw/40hp |
7500*1650*2200 |
9 |
JPW120BL |
120 |
1100*1100*(300-1200) |
1600*1100 |
600-800 |
400-600 |
3-5 |
5 |
One-off bale out |
37kw/50hp |
7500*1750*2200 |
9.5 |
JPW150BL |
150 |
1100*1100*(300-1200) |
1600*1200 |
700-900 |
600-800 |
4-6 |
5 |
One-off bale out |
45kw/60hp |
8800*1850*2550 |
10 |
6.Accessaries of complete equipment:
7.Certification:
8.Production process:
9.Packing for shipment:
10.In exhibition:
11.Golden supplier for below companies:
12.About us:
- Jiajing(CSJ)’s factory is located in Nantong, Jiangsu Province and our marketing department is located in Shanghai.
- We are commited in the research and development of hydraulic balers since 1995, our target is to do the latest, the most fashionable and the most high-end product.
- Our product which has 7 series about 50 size has widely used in paper making,textile,commodities,food etc..
- Got CE ISO TUV SGS and so on Certifications
- We are the supplier of Nike, Wal-mart, Unicharm, Dumex, JNJ,RT-Mart and many other World famous manufactures and wholesalers.
- Our company is the professional production factory of hydraulic baling press (compressed) machine, which has nearly 20 years experience in this field, and have been exported more than 90 countries.
After many years technology research and development , we have obtained 21 national patents and 3 invention patents, and we have the rights of self-management import and export , No need the agent and the third party platform, that can save the customer's cost and time.
At the same time, especially in equipment parts supply after clients use and the good after-sales service ,we have strong guarantee about this , hope you could pay attention about our company , thank you.
13.Our service:
- One year warranty for whole machine.
- Engineers available to service machinery overseas.
- 24 hours technical support by e-mail.
