pellet making machine
Brief introduction of pellet making machine:
Pellet making machine is the equipment crushed pine, poplar, fruit and straw, bamboo shavings
into sawdust for processing into biomass fuel machines. Gearbox is made of high quality alloy steel, surface carbonizing, after grinding fine processing, smooth transmission, low noise, high
load capacity, low temperature, long life. Box body increased gluten, greater pressure tolerance.
Advantages of pellet making machine:
1. hopper using crimping structure
2. advanced technology
3. low investment with high capacity
4. easy operation and maintance
5. low consumption
6. stable working and durable
Wearing parts of pellet making machine:
Service life of roller and die is 300-500 hours under normal running condition. Most of dies can
be used on both sides, it is recommended to replace roller and die at the same time. Make sure
there are no hard materials mixed with raw materials. Because it is easy to destory the die and
roller.
Application of the biomass fuel:
1. Home heating stoves
2. Hot water boilers and the industrial boilers,
3. Biomass power plants and so on.
Requirements for making the pellet:
a. size of raw materials: powder or no longer than 5mm
b. moisture content of raw materials: 10-18%
c. raw materials can be the mixture of 2 or more than 2 kinds different materials, they must be
evenly mixed.
d. no adhensive or chemicals need in the processing
Working principle of pellet making machine:
The raw materials must be powdery, and the moisture is 12%- 18%, mix the raw materials and
water up. If the moisture is not enough, you need to add more water, or there would not be
pellets. Due to the pressure and friction in the matrix, the starting materials are heated to a high
temperature (nearly 60~80 °C). As a result of pressure and temprerature increasing, the materials
were compressed into pellets. The output pellets will have very high strength after cooling.

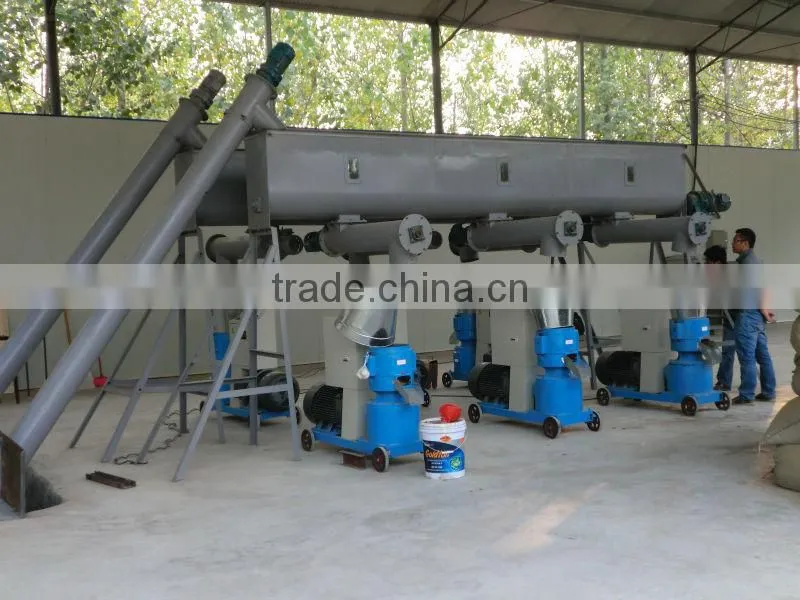

Working production line of pellet making machine:
Final products of pellet making machine:
You can choose different die with different hole diameter, can adjust the length by the cutter to
attach your requirement.
Packing and shipping of pellet making machine:
1.First we will seperate and wrap the machine with thick plastic film first(including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden box,
put machine in and fixed the box after loading.
3. The machine parts need to be put in a fixed container, should be fixed well.
The external dimension is 800(L)*450(W)*700(H)mm. We will choose the most convenient port to you.
Why choose us?
1.Suggest to client suitable models of our pellet machine according to your requirement.
2. Introduce machine's structure and features in detail, explain the price component.
3. Answer client concerned questions, pick them up when they come to our factory.
Why trust us?
1.Start production as soon as receiving down payment.
2. Delivery machine in time, taking photos during loading.
3.Communicate with clients about the machine's condition.
1. Q: Does your company provide Engineers Abroad Service?
A : Yes, our staff can go to your country to install the equipment, and you can also install by
yourself under the specific installation instructions.
2. Q: How can I visit and check your company?
A: We will pick you up at the near airport.
3. Q: Why are pellets soft or powdery?
A: The material is too dry, you can add more water; or the die is worn out, you need change
another die.

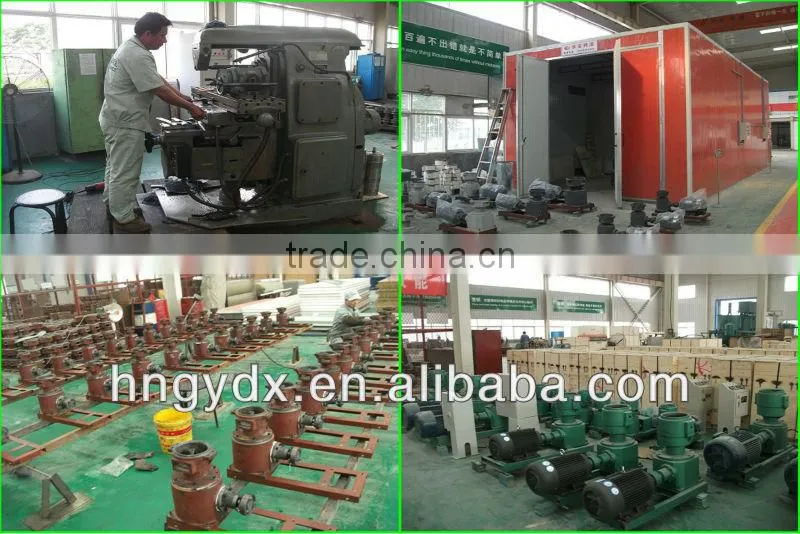

Our company is professional in making pellet machine, we hold that quality first management
idea. We have different pellet machine models which have been approved by CE, ISO9001,
include flat die and ring die pellet machine, the flat die pellet machine can be classified into
animal feed pellet machine and biomass pellet machine. And we can also customize according to
the request of different clients.
Gongyi Dongxing Company
Add: Xinhua Road, Gongyi City, Henan Province, China
Tel/Fax: 86-371-85617836
Website:
Certificates:
Recent proforma invoice:
Pellet making machine
