bio energy machines
The components of the reducer is as follows.
I:Machine base
II:Motor
III:Reducerbox
IV:Roller
Description of the bio energy machines
The bio energy machines are used to compress the powder to predetermined shapes.Some are used for easily to store, others are used for fuel.

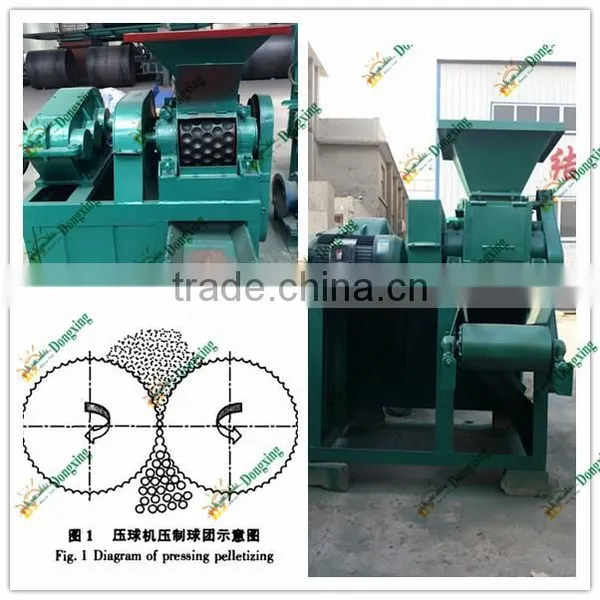

Principle of the bio energy machines
I:put the materials into the feeder.
II : the machine go through the middle of two rollers.
III : tremendous pressure of the roller comes.
IV : the final products are out by the belt conveyor.
The characteristics of the bio energy machines

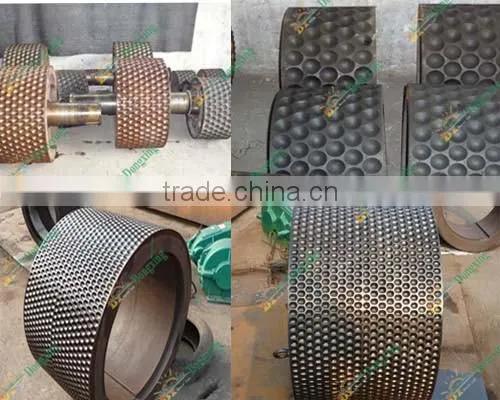

Cha. 1: the materials of the rollers is 65Mn and 9Cr2Mo.They are all the wear resistance materials.But the 9Cr2Mo is better in harm resistence.
Cha. 2: the wide range of the materials in this machine, you can use copper powder and so on to press them into different shapes to make steels.It is widely used in steel factory.
FAQ of the bio energy machines :
Q 1: my materials is wood,can I use it to make ball shape charcoal?
Fiona: yes, you can use it to make charcoal balls; The process is as the following.
Wood → carbonization furnace(carbonize the materials into charcoal) → crusher(crush the materials into powder) → wheel grinding mixer(mix the materials with glue) → Coconut hookah charcoal machine (press them into ball shape)
Q 2: do I need binder to mix them?
Fiona: yes.The binder is most of stark.
Data of the bio energy machines
| Type | Power | Capacity of coal | Capacity of charcoal | Capacity of others | Diameter of the roller | Wideth of the roller | Speed of the shaft | Reducerbox | Type of the pressure | Materials of the roller | Type of the structure | Bearing of the main shaft | Main shaft | Shape of the final prodcuts |
| 290 | 5.5kw | 1-2ton/hour | 500-800kg/hour | According to your materials | 290mm | 200mm | 27r/min | ZQ300A | Mechinaical | 65Mn or 9Cr2Mn | two roller single pressure | 319*4 | 45#steel | Customer design or normal shape |
Our factory of the bio energy machines
In order to make you trust me, I will attach a bill of lading bellow.
