Home > Metallurgy, Mineral & Energy > Ceramic Material > Alumina Ceramics > Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding

Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding

Ningxia Baiyun Carbon Co., Ltd.
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding thumbnail-1
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding thumbnail-2
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding thumbnail-3
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding thumbnail-4
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding thumbnail-5
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding thumbnail-6
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding photo-1
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding photo-2
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding photo-3
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding photo-4
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding photo-5
Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding photo-6
US$ 119 - 230 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Place of Origin:
Ningxia, China
Type:
Ceramic Balls, Alumina Ball
Application:
Industrial Ceramic, Industrial Ceramic, Industrial Ceramic Grinding Media
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Ningxia, China
Material Alumina Ceramic
Model Number Alumina Ball
Brand Name Baiyun

Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding



Product Description



What are details of Baiyun Middle Alumina Ball?



Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding







Baiyun Middle Alumina Ball features:


1) Spheres (balls) or cylinders
2) Very excellent support and covering media
3) Function as support media for catalyst beds or other chemical beds in reactors or towers
4) Very excellent performances and stability in acid and other chemical surroundings
5) Very good chemical stability and low rate of water absorption
6) Can withstand high pressure and high temperatures
7) Can be even used in hot caustic service because they can resist over 10% sodium hydroxide service up to 60ºC, and 1% sodium hydroxide service temperature up to 100ºC
8) Can also resist the chemical corrosions of any acid (including organic and inorganic acids, but except HF acid), most of alkali and organic solvent
9) Will increase the distributors of liquid and gas, supporting and protecting the catalyst and avoid poisoned

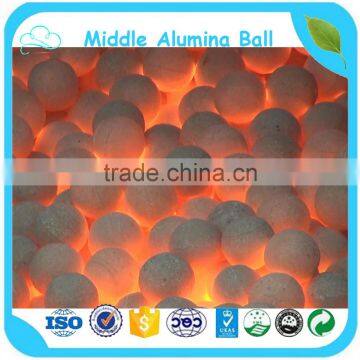

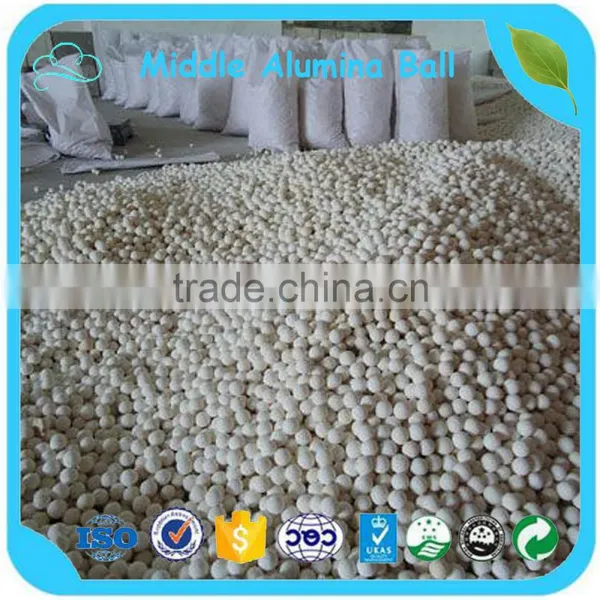

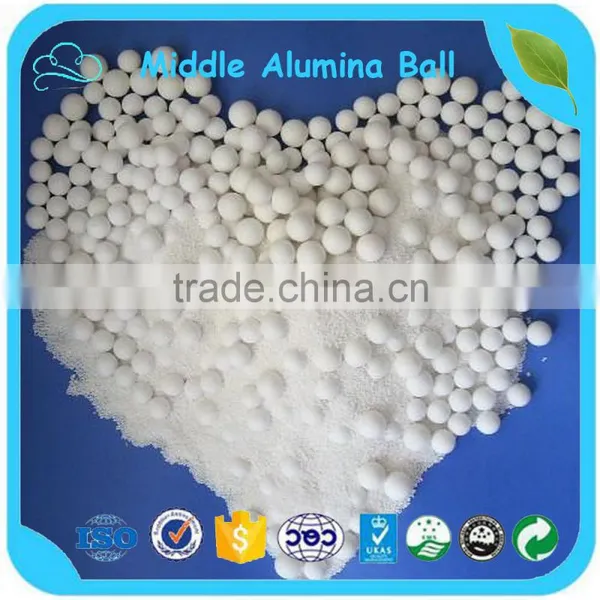

 Baiyun Middle Alumina Ball Photos:



Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding

Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding

Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding





Baiyun Middle Alumina Ball application: oil refinery, chemical, fertilizer, natural gas and environmental protection industries etc.





What are Specifications of Baiyun Middle Alumina Ball?



Baiyun Middle Alumina Ball specification:



Type
Item

Feldspar

Feldspar-Mullite

Mullite

Mullite-Corundum

Corundum


Chemical composition%

Al2O3

20-30

30-45

45-70

70-90

≥90

Al2O3+SiO2

≥90

Fe2O3

≤1

Water absorption, %

≤5

Acid resistance , %

≥98

Alkali resistance,%

≥80

≥82

≥85

≥90

≥95

Thermal resistance,ºC

≥1300

≥1400

≥1500

≥1600

≥1700

Crushing strength
N/particle

ø3

≥120

≥140

≥150

≥160

≥200

ø6

≥400

≥420

≥440

≥480

≥500

ø8

≥480

≥520

≥600

≥620

≥650

ø10

≥600

≥700

≥800

≥900

≥1000

ø13

≥1000

≥1100

≥1300

≥1500

≥1800

ø16

≥1500

≥1600

≥1800

≥2300

≥2600

ø20

≥1800

≥2000

≥2300

≥2800

≥3200

ø25

≥2500

≥2800

≥3200

≥3600

≥4000

ø30

≥3000

≥3200

≥3500

≥4000

≥4500

ø38

≥4000

≥4500

≥5000

≥5500

≥6000

ø50

≥6000

≥6500

≥7000

≥8500

≥10000

ø75

≥10000

≥11000

≥12000

≥14000

≥15000

Bulk density, kg/m3

1300-1400

1400-1500

1500-1600

1600-1800

≥1800


Note: The data of bulk density is given for reference only, not as the acceptance criterion.



Packaging & Shipping



How to packaging & shipping Baiyun Middle Alumina Ball?

Packing:



Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding



Shipping:



Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding



Our Services



What other products does Baiyun factory offer?

Various Products:



Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding



Company Information



How does Baiyun Middle Alumina Ball factory looks like?



Factory View:



Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding

Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding

Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding

Abrasion 0.025 Max 1-10mm Alumina Ball In Creamic Industry For Grinding



FAQ

FAQ:

1. Q: How to place an order?



     A: Send the inquiry  --- Get the quotation --- Approve the order --- Make the PI --- Payment --- Arrange production & inform

          --- Rest and relax --- Finished products inspection --- Make the balance --- Arrange delivery --- Goods received.

 2. Q: What kind of payment do you accept?



      A: Formal order we usually choose TT or  L/C, Western Union, Paypal for small amount payment.



 3. Q: Do you offer OEM service?



      A: Yes, Oem is ok, our factory can offer produdcts that according to our clients' requirments.



 4. Q: How long is the delivery?



     A: Usually 3 days for small order, 4-7 days for bulk order after payment received.
