200Amp Inverter Wire Feed Welder
Related products you may interested in

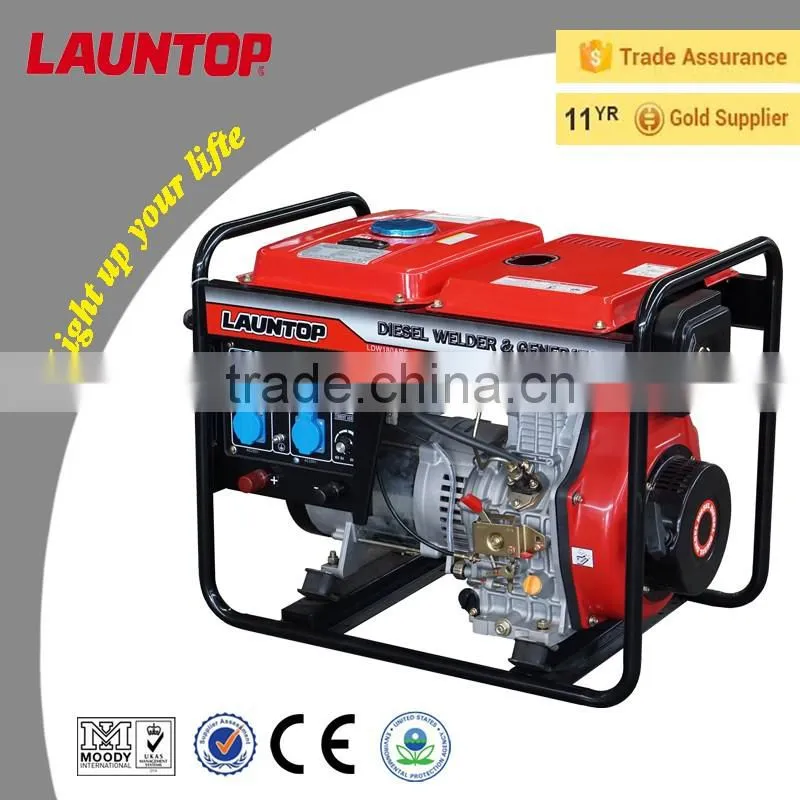

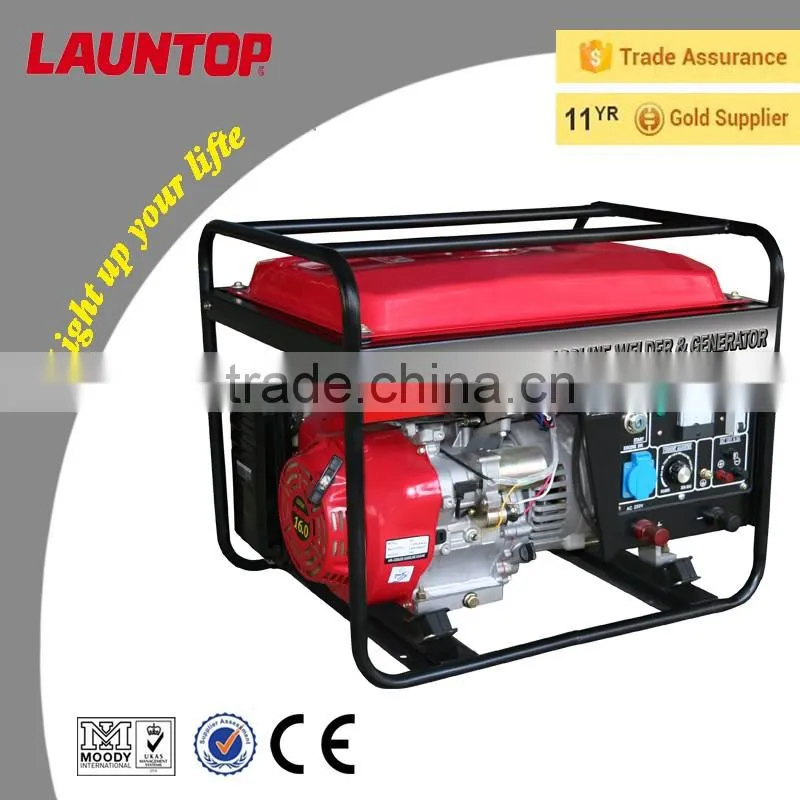

180A diesel welding generator 200A gasoline welding generator
Features

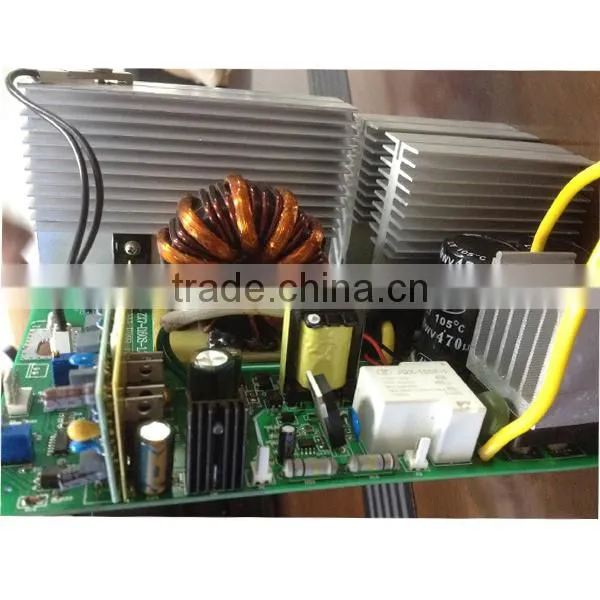

1. Using IGBT inverter technology, simple circuit, small size, light weight, high efficiency and
energy saving.
2. Super-compensation of the power gird capacity, anti-supply voltage fluctuations, the stability
of welding current, reliable performance.
3. No-load loss, with the traditional machine than can be saving 50%.
4. Inverter frequency of 30-100KHz, the dynamic response of high-speed, easy arc ignition, arc
stability, high strength.
5. Welding material: steel, stainless steel, Chromalloy, aluminum, nickel alloys, magnesium, copper, brass, bronze,
and even gold
Arc 120Amp inverter flux wire welder Arc 120Amp inverter flux wire welder Arc 120Amp inverter flux wire welder
Specification

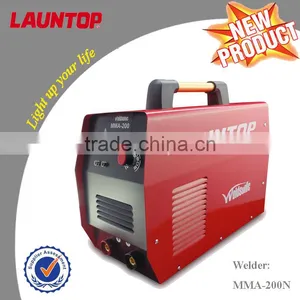

| Model | MMA-200N |
| Input power voltage frequency(V, Hz) | AC220±10%, 50/60Hz |
| Rated output (A, V) | 160A / 33.2V |
| Power factor(cosØ) | 0.7 |
| Current range(A) | 20-200A |
| No-load voltage(V) | 60V |
| Efficiency | 85% |
| Load endurance rate | 60% |
| Overall dimension(mm) | 430×180×273mm |
| Suitable diameter of electrodes(mm) | 1.6-4.0mm |
| Weight(kg) | 6.9kg |
| Isolation level | F |
| Cover protected level | IP21 |
We beliveve good quality rises in the whole manufacturing process. Continuous improvement in quality
is our target. Our quality control system mainly consist of 4 parts, they are material inspection, key control point
inspection, products test, spot inspection by QC. Some times, if neccessary, our products will be inspected
by CIQ or SGS by some other party request by our customer.

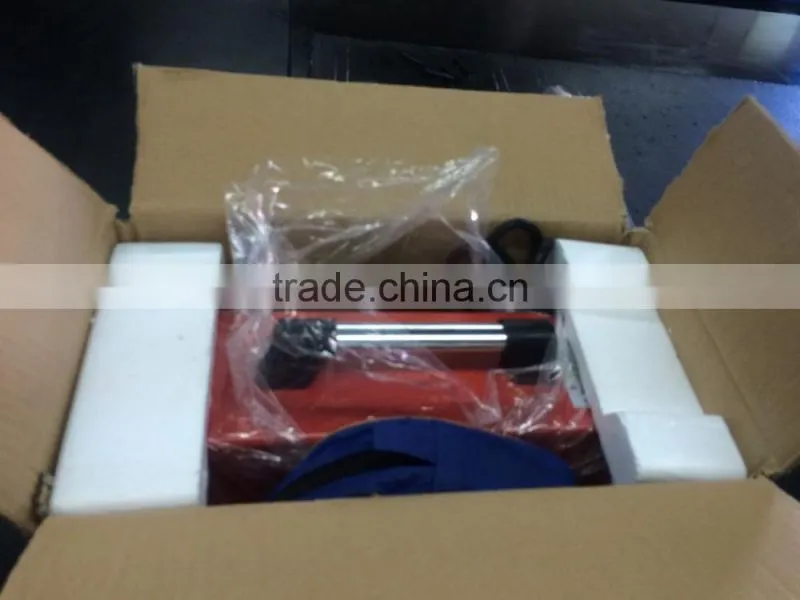

1. The model is packed in carton, 1 unit/carton
2. Packing size: 445×195×288mm
3. Loading quantity:
20' : 2350 units
40' / 40'HQ: 4300 units
1. No free sample can be offered.
2. We provide OEM service.
3. We provide one year warranty from the date of B/L.
4. We provide free technology consult before and after sales.
5. Other service requested by customer through communication with sales people.
Year establish: Sep., 2000
Factory location: Hongkuan Industrial Park, Fuqing city, Fujian province, China
Factory area: 200,000 m2
Employee number: 800+
Engineers number: 50+
Main products: Air cooled single and twin cylinder gasoline & diesel engine, air cooled gasoline generators from 0.65-10kW, air cooled diesel generators from 2-10kW, water cooled multi-cylinder diesel generator from 8-2500kva, light towers, gasoline & diesel water pump from 1-4 inch, lawn mower from 16-22 inch, gasoline & diesel high pressure washers, welding generators.
Turnover at 2015 : 1.1 billion USD
We on fairs
Our team
Certificates
ISO 9001:2008 Managerment System
ISO 14001:2004 Environment management
