6hp Single Cylinder Air Cooled 4 Stroke Diesel Engine
Specification:
MODEL |
single cylinder air cooled four stroke 6hp diesel engine LA178FA |
|
Bore*stroke (mm) / (inch) |
78*64 |
|
3.07*2.51 | ||
Displacement (cc) / (cu.in.) |
306 / 18.67 |
|
Engine speed (rpm) |
3000 |
3600 |
Maximum output (hp) |
5.5 |
6.0 |
Continuous output (hp) |
5.0 |
5.4 |
Power take off |
Crankshaft or Camshaft
(Camshaft PTO rpm is 1 / 2)
|
|
Starting system |
Recoil or Recoil / Electric |
|
Fuel tank capacity (L) / (us.gal) |
3.5 / 0.92 |
|
Lube oil capacity (L) / (us.gal) |
1.1 / 0.29 |
|
|
Dimensions L*W*H
(mm) / (inch)
|
383*421*450 |
|
15.0*16.5*17.7 | ||
Net weight (Recoil) (kg) / (lbs) |
33 / 72.7 |
|
Manufacturing process
Optional parts
Colors
We beliveve good quality rises in the whole manufacturing process. Continuous improvement in quality
is our target. Our quality control system mainly consist of 4 parts, they are material inspection, key
control point inspection, products test, spot inspection by QC. Some times, if neccessary, our products
will be inspect by CIQ or SGS by some other party request by our customer.
Certificates
Attention !
Dear customers, we will update our quality certificates any time, but it's hard to update this information for every product we posted on Alibaba website. If you find our certificate is expire, please ask our sales to provide the latest version. Thanks !
CE ISO
1. packed in carton, 1 unit/carton
2. pallet is option for less container loading
3. packing size: 478*460*521mm
4. loading capacity: 240 units/20'; 504 units/40'; 630 units/40'HQ
5. We can arrange shipping by sea, by air or by courier as per customer's request.
1. We provide one year warranty for all of our products since the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service. For any claim, please cooperate to provide necessary information to us for evaluation such as the serial number, pictures of the broken parts and working condition before the model broken. We will make record and improvement in case of same problem in the future.
2. We provide free technical consultant if you have any question about the usage of our products.
3. We can make OEM package & design as per request of our customer, such as customer brand, label, special model design, color, etc.
Along With a modern and recently expanded 200,000 square meters facility in Fuqing, China, Launtop’s products have been delivered to more than 100 countries. Now the company owns 850 employees, among which there is 100 technical person. Continuous innovation on products, employing a knowledgeable and motivated staff, serving the needs of the clients have been important keys to the success. This is only a part of their winning equation.Launtop has set up a complete working system for CNC, R&D, QC to ensure every product is qualified.
The commitment at Launtop is to constantly strive to produce new, innovative and high performance products in each category at very affordable prices. By listening to the demands of the market, Launtop has been able to set itself apart from the competition.

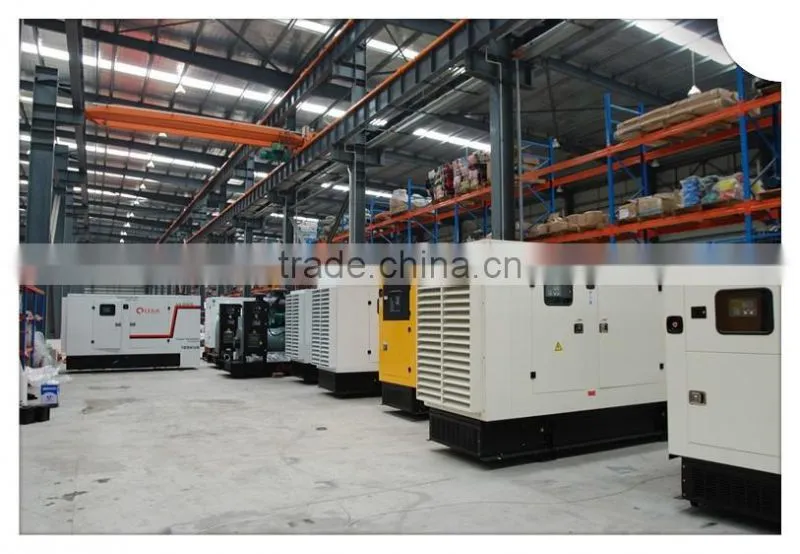

Our workshop
