High Quality! 5hp Air Cooled Manual Diesel Engine LA178F for Sale

High Quality! 5hp Air Cooled Manual Diesel Engine LA178F for Sale photo-1
US$ 158 - 190 MOQ: 30 Units
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Water pump, generator
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Usage Other, Water pump, generator
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other, Manual
Place of Origin Fujian, China
Brand Name LAUNTOP
Model Number LA178F
Dimension(L*W*H) 383*421*450mm
Weight 33kg
Certification ISO. CE
Warranty 1 Year
After-sales Service Provided No overseas service provided

 High quality! 5hp air cooled manual diesel engine LA178F for sale





Product Description

The below technical specification and quotation just for your information, if you have any special request, please contact with our sales to check the possibility and price.



Specification
MODEL
air cooled 3000/3600rpm 178F diesel engine
Bore*stroke (mm) / (inch)
78*62
3.07*2.44
Displacement (cc) / (cu.in.)
296 / 18.06
Engine speed (rpm)
3000
3600
Maximum output (hp)
5.5
6.0
Continuous output (hp)
5.0
5.4
Power take off
Crankshaft or Camshaft
(Camshaft PTO rpm is 1 / 2)
Starting system
Recoil or Recoil / Electric
Fuel tank capacity (L) / (us.gal)
3.5 / 0.92
Lube oil capacity (L) / (us.gal)
1.1 / 0.29
Dimensions L*W*H
(mm) / (inch)
383*421*450
15.0*16.5*17.7
Net weight (Recoil) (kg) / (lbs)
33 / 72.7

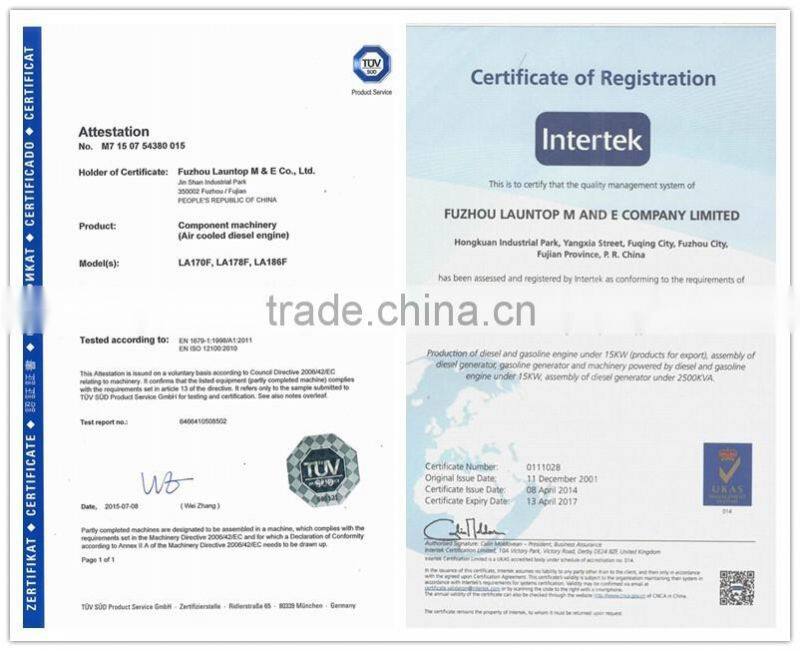

Quality certificate



Attention !



Dear customers, we will update our quality certificates any time, but it's hard to update this information for every product we published on Alibaba website. If you find our certificate is expire, please ask our sales for the latest version. Thanks !



CE and ISO

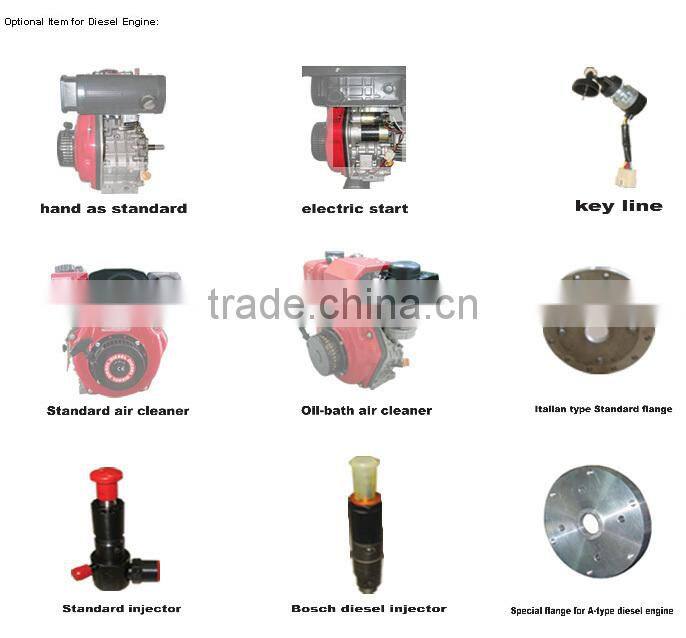

Optional parts

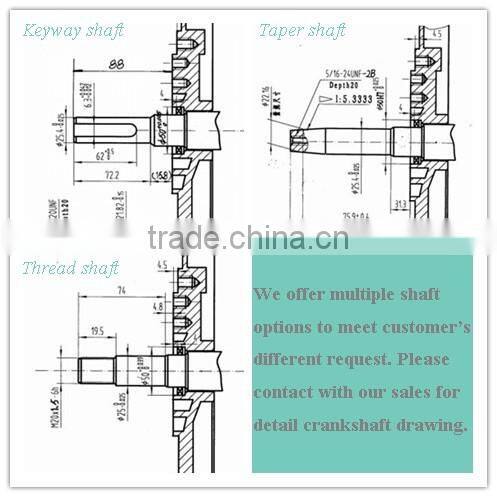

Crankshafts

Option colors

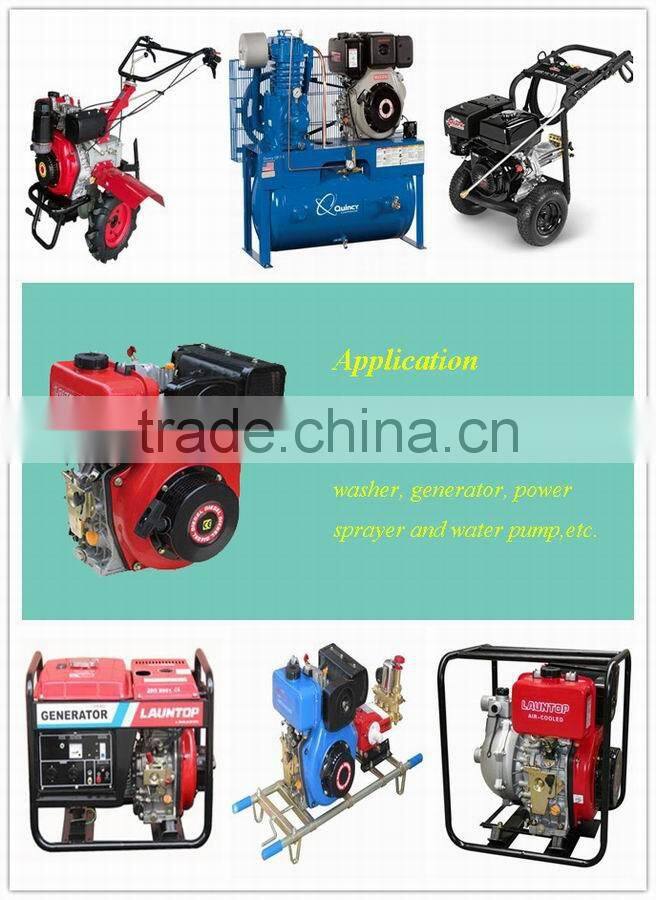

Application

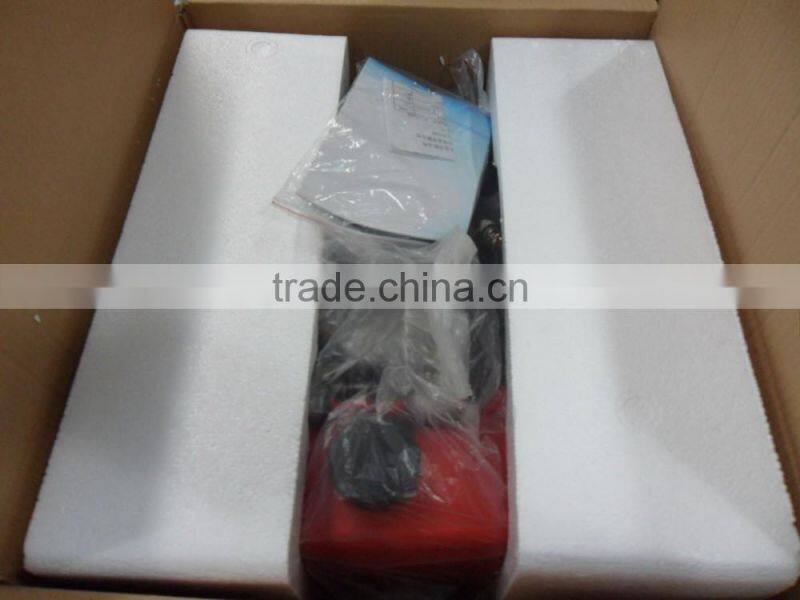

Packaging & Shipping

1. Usually, models are packed in carton, we provide neutral carton, LAUNTOP brand carton or cutomer brand carton. We can also make wooden case if neccessary. For LCL shipment, we will make pallets to protect the goods from rough handling.



2. We can arrange shipping by sea, by air or by courier as per customer's request.

Company Information

Year establish: Sep., 2000

Factory location: Hongkuan Industrial Park, Fuqing city, Fujian province, China

Factory area: 2000,000 m2

Employee number: 800+

Engineers number: 50+

Main products: Air cooled single and twin cylinder gasoline & diesel engine, air cooled gasoline generators from 0.65-10kW, air cooled diesel generators from 2-10kW, water cooled multi-cylinder diesel generator from 8-2500kva, light towers, gasoline & diesel water pump from 1-4 inch, lawn mower from 16-22 inch, gasoline & diesel high pressure washers,  welding generators.

Turnover at 2015 : 1.1 billion USD





Our Services

1. We provide one year warranty for all of our products count from the datd of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service.



2. We provide free technical consultant if you have any question about the usage of our products.



3. We can make OEM as per request of our customer, such as customer brand, label, package, special model design, color, etc.


FAQ

1. Q: What's the MOQ for this model ?

    A: The MOQ for this products is 10 units. But for sample order, we also accept 1-2 units.



2. Q: What's the delivery time ?

    A: For sample order, the delivery time usually within 1-2 weeks, for container order, usually cost 1 month. Please check with sales for exact information.



3. Q: How about the production capacity ?

    A: FYI, the current production capacity for our diesel engine products is 250 units/day.



4. Q: Can I stick my own brand on the model ?

    A: Yes, we can make OEM for our customer. Extra cost for customer package please check with sales.
