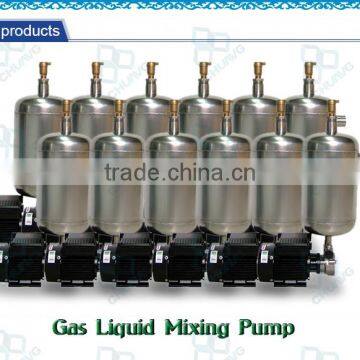

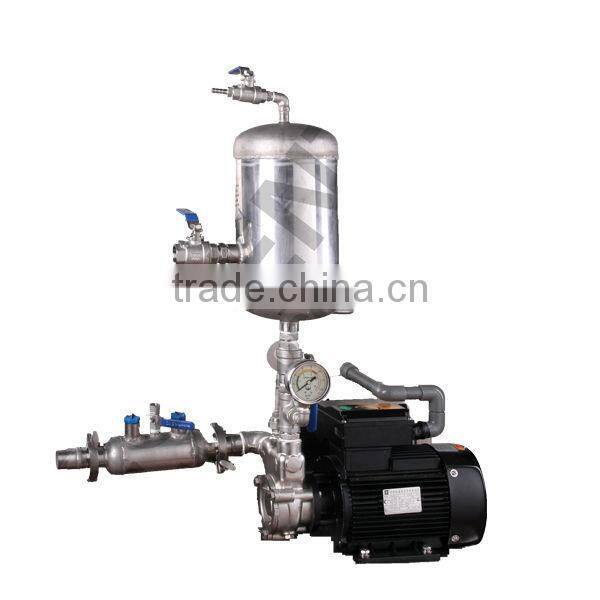

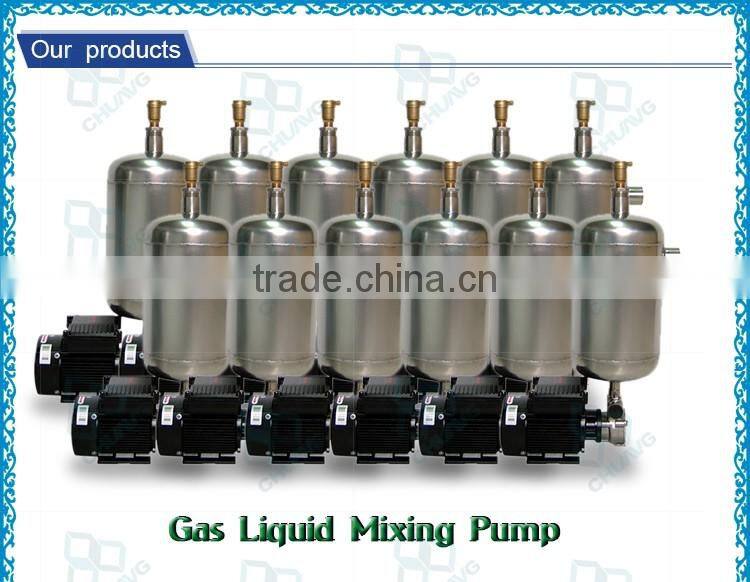

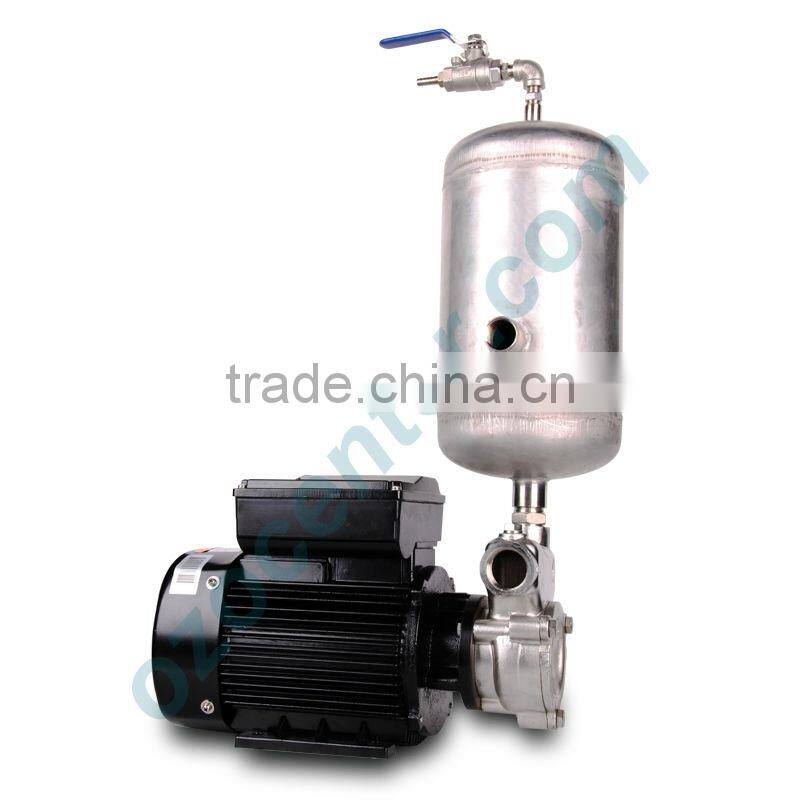

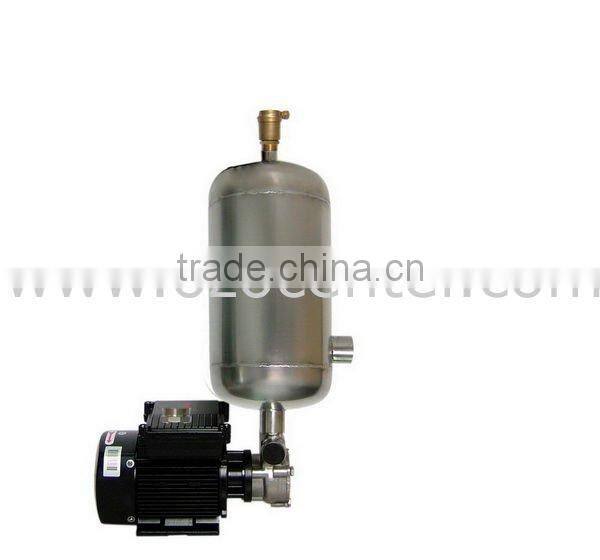

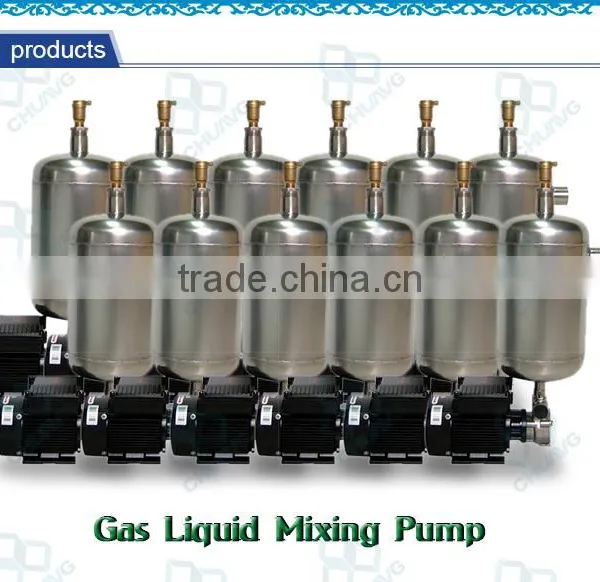

1T~12T Gas Liquid Mixing Pump And Tank / gas water pumps / gas mixer
Descriptions:

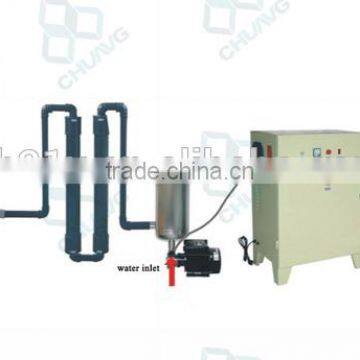

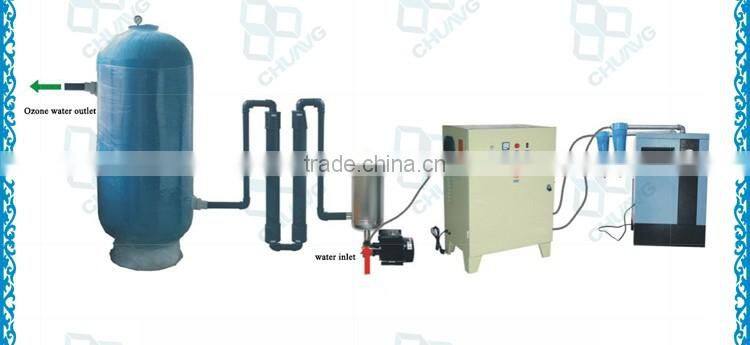

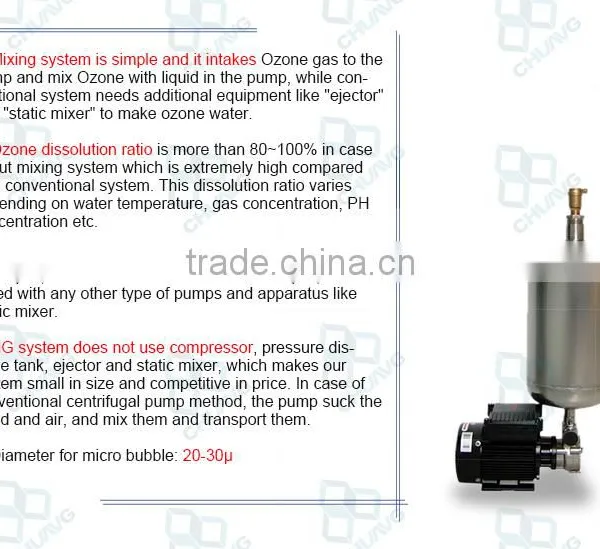

1. Mixing system is simple and it intakes Ozone gas to the pump and mix Ozone with liquid in the pump, while conventional system needs additional equipment like "ejector" and "static mixer" to make ozone water.
2. Ozone dissolution ratio is more than 80~100% in case of out mixing system which is extremely high compared with conventional system. This dissolution ratio varies depending on water temperature, gas concentration, PH concentration etc.
3. CH Mixng pump is most suitable to pressurize the air and liquid, and let the air dissolved into the liquid, compared with any other type of pumps and apparatus like atatic mixer.
4. CH system does not use compressor, pressure dissolve tank, ejector and static mixer, which makes our system small in size and competitive in price. In case of conventional centrifugal pump method, the pump sucks the liquid and air, and mix them and transport them.
5. Diameter for micro bubble: 20-30µ
Working condition:
PH: 3~9
Highest environment temperature: 400C
Liquid temperature:-150C--1200C

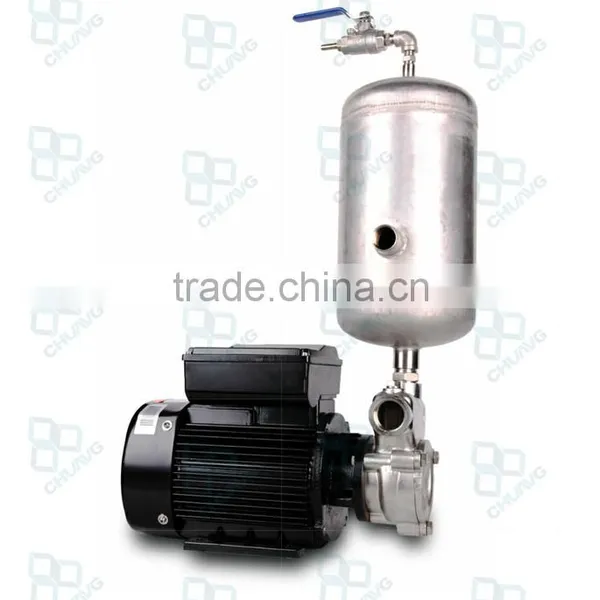

1T~12T Gas Liquid Mixing Pump And Tank / gas water pumps / gas mixer
Equipment parameters:
Specifications
Item |
20NT-1SS |
20NT-1DS |
25NT-2SS |
25NT-2DS |
40NT-6SS |
50NT-12SS |
Head of delivery |
40M |
50M |
||||
Flow rate |
1T/Hr |
2T/Hr |
6T/Hr |
12T/Hr |
||
Water input size |
0.75’’ |
1’’ |
1.5’’ |
2’’ |
||
Water output size |
0.5’’ |
0.75’’ |
1.2’’ |
1.5’’ |
||
Power |
0.55Kw |
1.1Kw |
3Kw |
5.5Kw |
||
Voltage |
380V |
220V |
380V |
220V |
380V |
380V |
Speed |
2900r/min |
|||||
Size of Tank |
Φ200×320mm (3mm thickness) |
Φ273×720mm (3mm thickness) |
||||
1T~12T Gas Liquid Mixing Pump And Tank / gas water pumps / gas mixer
1T~12T Gas Liquid Mixing Pump And Tank / gas water pumps / gas mixer
ABOUT US
What we do?
1.We Provide high-quality ozone generator for : Ozone generator wholesalers
Retailers and oneline shops (Ebay, Amazon...)
2.OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
3.ODM-The modification of the ozone generator after customer's selection is
accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on
problems occurred.
Report on the making process.Marketing feedbacks tracing.
Why choosing us?
1.Having 10 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage
of production, from the incoming raw materials to the finished product.
3.Ozone and liquid mixing pump Production Capacity: 3000 pcs per month.
4.We have serial products: ozone tube ,UV water sterilizers, ozone generators,
oxygen concentrators, protein skimmers, and filters, mixing pumps and other water
or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions. Distributors Offer : Welcome to be our distributor .
