Ozone Water Generator Ozone Mixing Equipment Ozone Mxing Pump Gas Liquid Mixing Pump And Tank
- 5000 Set / Sets per Month
- guangzhou/shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- 1-3 m3/hr ozone injector/venturi for ozone mix with swimming pool water treatment
- High quality PVDF material Venturi for water treatment
- High density PVDF 0.05-0.25 T/Hr Venturi tube / Venturi injector for mixing ozone gas and liquid
- 0.1-1 T/Hr Classic Venturi Ozone Injector
- 0.1-1 T/Hr Anti-Oxi PDVF Material Venturi Ozone Gas Mixer
- 1-3 T/Hr Vacuum Ozone Gas Venturi Mixer
Product Details
Condition: | New | Mixer Type: | Homogenizer | Application: | Other, ozone mixing with water, Dissolve ozone into water |
Additional Capabilities: | Drying | Place of Origin: | Guangdong, China | Brand Name: | oZocenter |
Model Number: | CH-SS | Voltage: | 220V/380V, 380V/220V | Power(W): | 0.55-5.5KW |
Warranty: | 1 year |
Packaging Details
Carton box, Wooden box
Product Description
Specifications
Ozone Water Generator Ozone Mixing Equipment Ozone Mxing Pump Gas Liquid Mixing Pump and tank1.ozone water pump
2.ozone mix

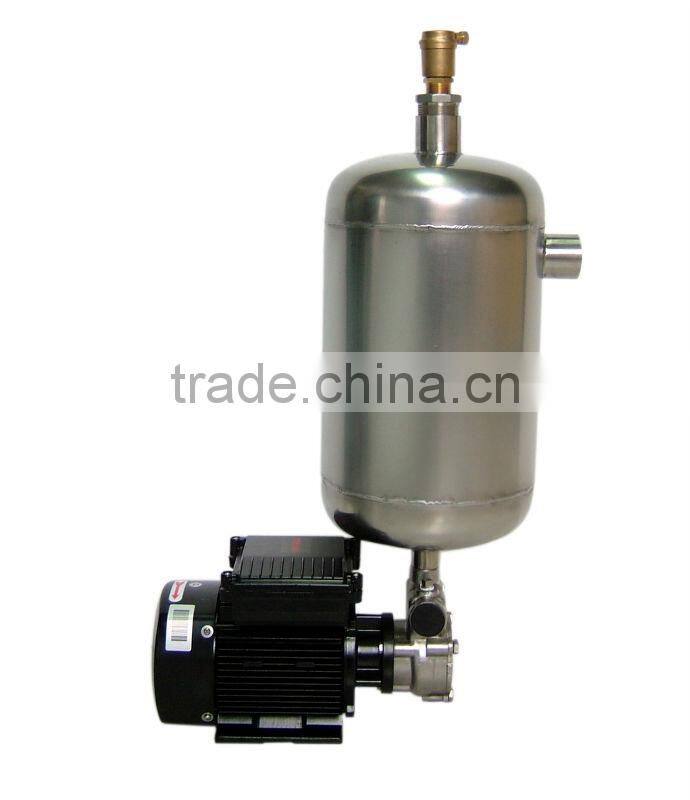

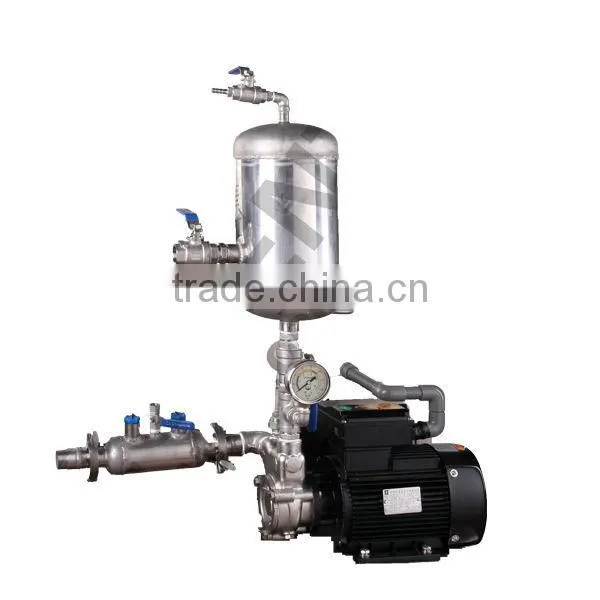

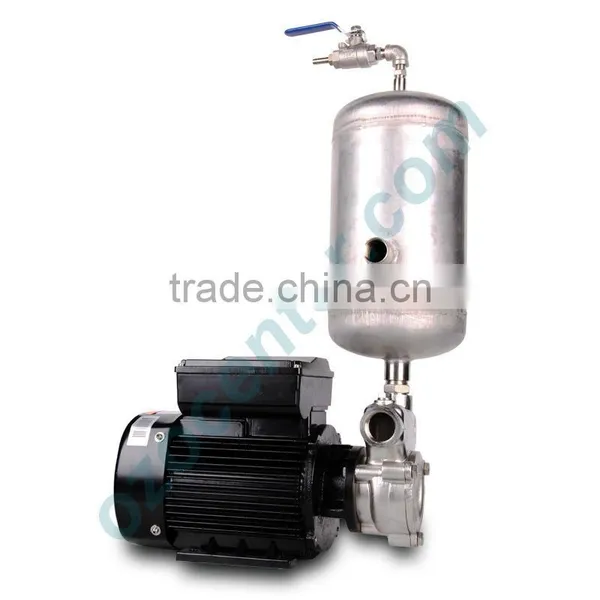

Ozone Water Generator Ozone Mixing Equipment Ozone Mxing Pump Gas Liquid Mixing Pump And Tank
Mixing system for ozone dissolved in water
1. Mixing system is simple and it intakes Ozone gas to the pump and mix Ozone with liquid in the pump, while conventional system needs additional equipment like "ejector" and "static mixer" to make ozone water.
2. Ozone dissolution ratio is more than 80~100% in case of out mixing system which is extremely high compared with conventional system. This dissolution ratio varies depending on water temperature, gas concentration, PH concentration etc.
3. CH Mixng pump is most suitable to pressurize the air and liquid, and let the air dissolved into the liquid, compared with any other type of pumps and apparatus like atatic mixer.
4. CH system does not use compressor, pressure dissolve tank, ejector and static mixer, which makes our system small in size and competitive in price. In case of conventional centrifugal pump method, the pump suck the liquid and air, and mix them and transport them.
Working condition:
PH: 3~9
Liquid temperature:-150C--1200C
Highest environment temperature: 400C
Specifications:
Item | 20CH-1SS | 20CH-1DS | 25CH-2SS | 25CH-2DS | 40CH-6SS | 50CH-12 |
Head of delivery | 40M | 50M | ||||
Flow rate | 1T/Hr | 2T/Hr | 6T/Hr | 12T/Hr | ||
Water input size | 0.75’’ | 1’’ | 1.5’’ | 2’’ | ||
Water output size | 0.5’’ | 0.75’’ | 1.2’’ | 1.5’’ | ||
Power | 0.55Kw | 1.1Kw | 3Kw | 5.5Kw | ||
Voltage | 380V | 220V | 380V | 220V | 380V | 380V |
Speed | 2900r/min | |||||
Size of Tank | Φ200×320mm (3mm thickness) | Φ273×720mm (3mm thickness) |

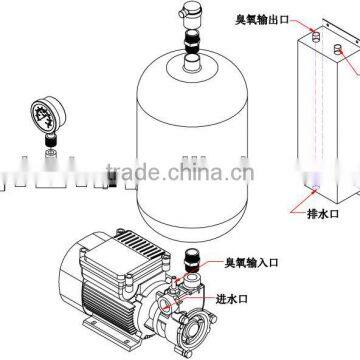

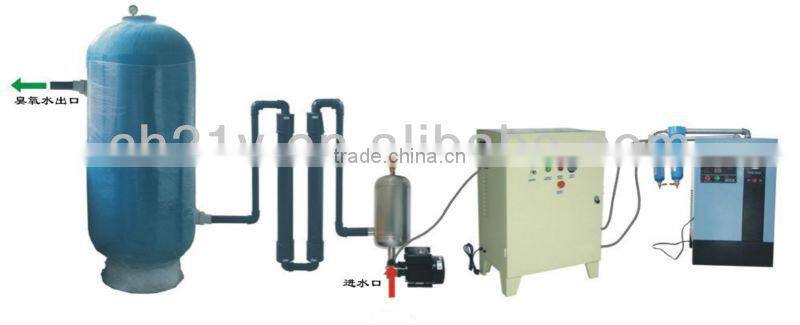

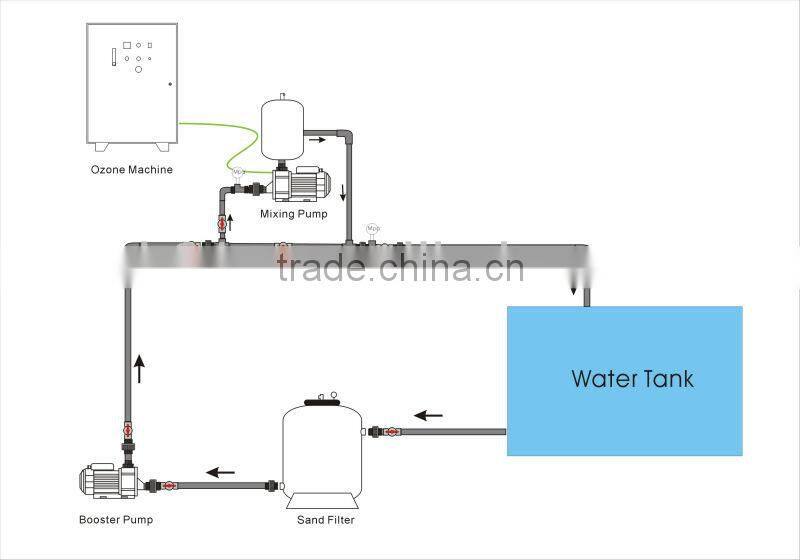

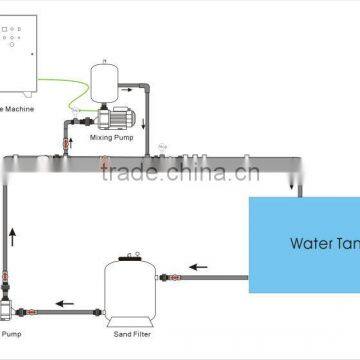

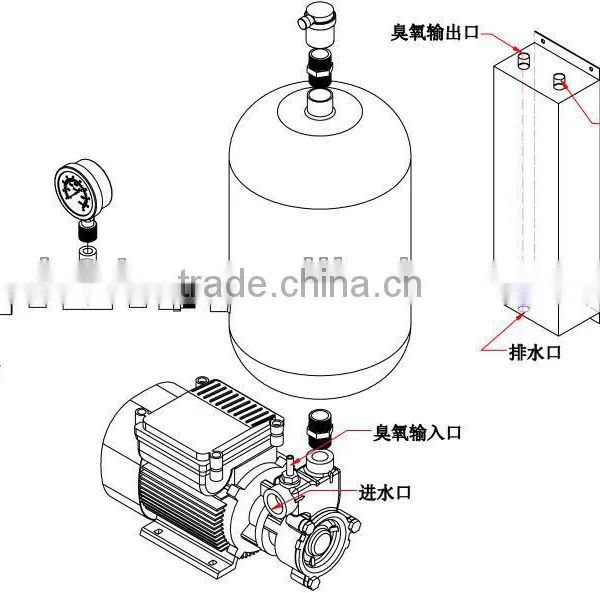

The whole systerm :
Why choosing us?
· Having 7 years production experienced .We are trusty business partner.
· Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
· NT-BT Production Capacity: 3000 pcs per month.
· We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
· We supply OEM service according to customers' requests and give out professional suggestions.
Distributors Offer : Welcome to be our distributor
Trade terms:
1.Lead Time :3-25 Working days,depend on the order quantity.
2.Delivery Ways:DHL,FEDEX door to door service or others.
3.MOQ:1 Set
Shipping:
Company & workshop:
Company Profile
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd., located in Guangzhou City, Guangdong Province, is a professional ozone generator manufacturer specializing in R & D, design, manufacture and processing of ozone products & spare parts.
We also provide professional service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are CH-KTB, CH-BT, CH-BT and CH-KTA series of Portable ozone Generators with the brand of "oZocenter".
CH-PTF, CH-PT series of Ceramic Ozone Generators and CH-PC series enamel ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing industry, and pharmaceutical industry etc.
Our series products, which seek for greater perfection and for the quality goal of excellence, is special reflected in the CH-KTB, CH-BT, CH-KTA, CH-PTF, CH-PT & CH-PC series products. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new requirements.
Chuanghuan will become your close partner and friend with its good reputation and professional skills.
