air and oxygen feed ozone generator air purifier and water treatment industrial used equipment
- 2000 Set / Sets per Month
- Guangzhou/Shenzhen
- T/T L/C D/P D/A Credit Card
- high purity ceramic tube zone sterilization device industrial used equipment aquaculture
- High purity ceramic tube air cooling ozone sterilization device industrial use swimming pool
- Ozone oxygen concentrator for fishing farm /water treatment/agriculture appliance
- large industrial aquaculture purified water vending machine for fishing farm used factory use
- industrial Ozone Generator for fishing Aquaculture Water Treatment
- 2015 hot sale high concentration water cooling ozone machine for fish farming
Product Details
Power Source: | Electrical | Type: | Ozone Generator | Installation: | Portable |
Capacity (CFM): | 98 | Power (W): | 115 | Voltage (V): | 220 |
Place of Origin: | Guangdong, China | Brand Name: | Ozocenter | Model Number: | CH-T |
Packaging Details
carton case with foam inside for buffering and protection.
Product Description
air and oxygen feed ozone generator air purifier and water treatment industrial used equipment
(NT-T)

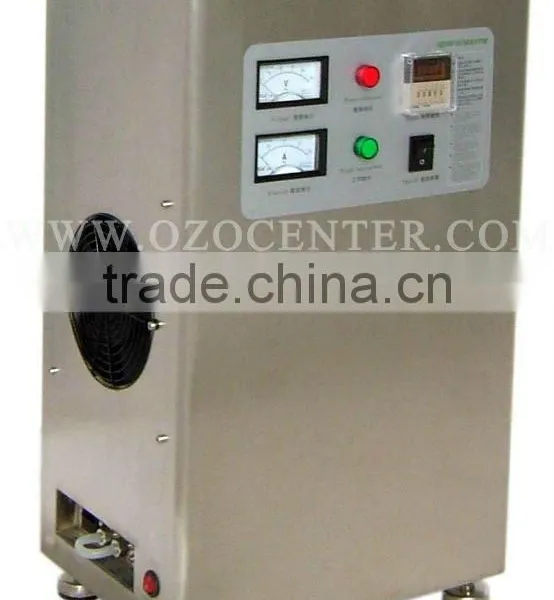

Control panel:
Voltmeter, Ampmeter, Switch, Timer, Working light, Power light
Features:

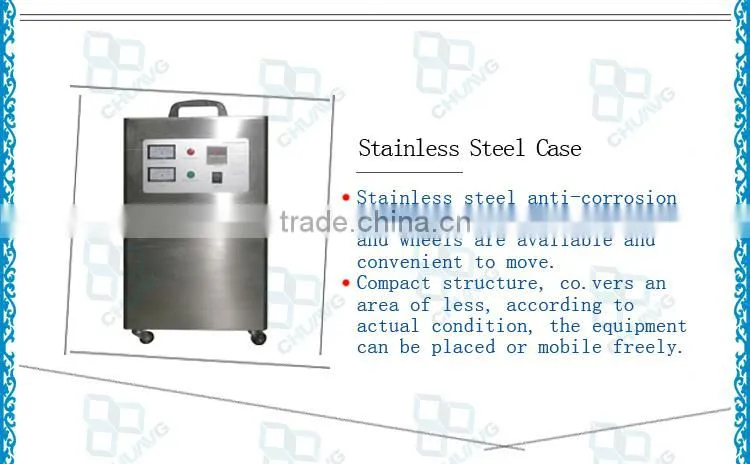

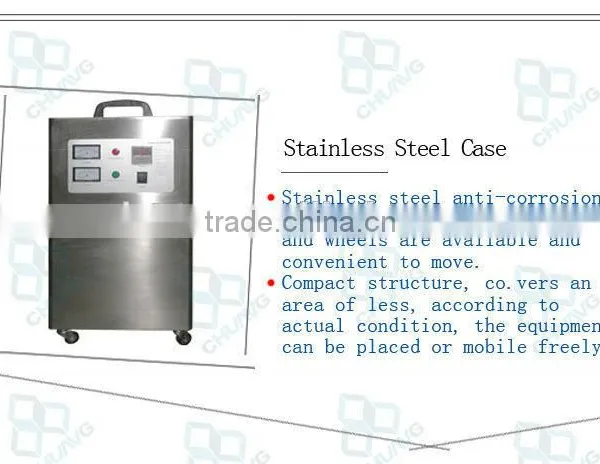

·Wall hanging SS housing
·With built-in Auto-drying system
·With built-in air feed or connect outside oxygen feed
·Use with air cooling ceramic tube, high frequency electric board, thus with stable ozone capacity, long life time
·Small in size, it can be movable
·Timer: one or two recycle working time
Details
comparation before andnow

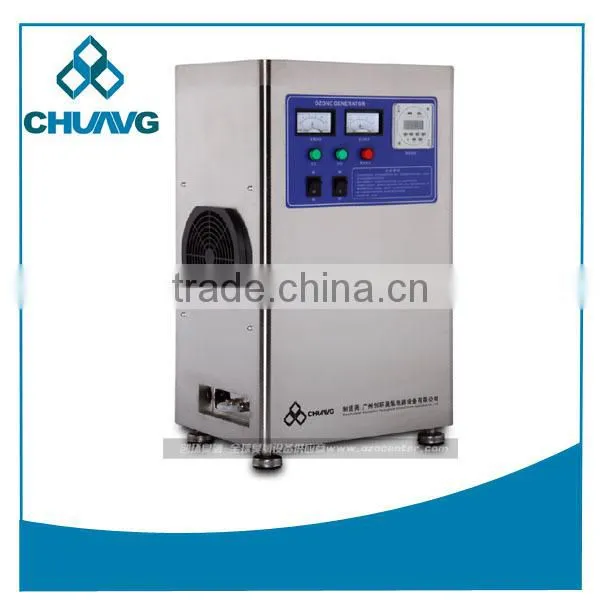

Updated Version without handle(before)

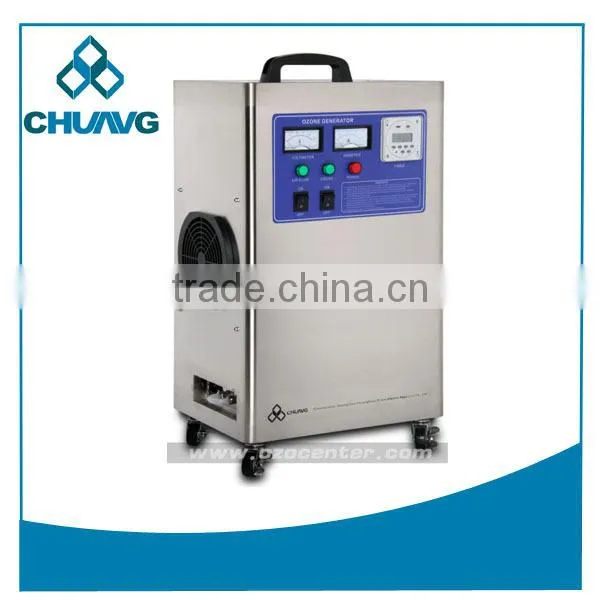

Updated Version with handle (now)
Old version

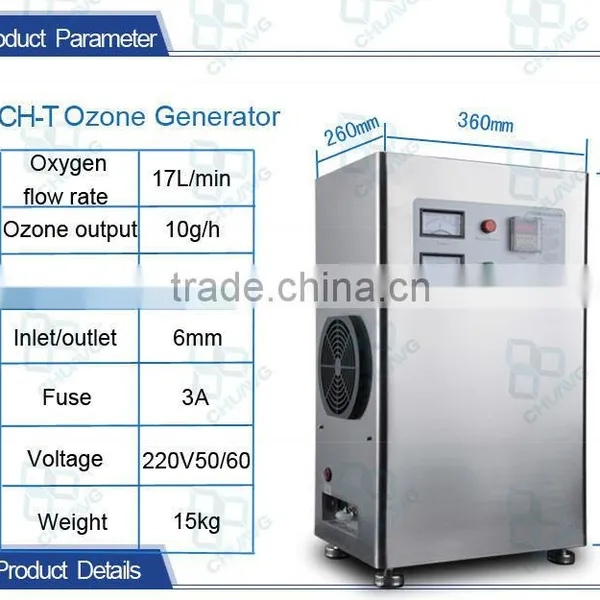

Specifications:
Item | Unit | NT-T-N | ||||||
2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
Compressed air pressure | Mpa | 0.025 | ||||||
Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
Size | cm | 36×26×61 | 40×30×77 | |||||
Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 |
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
3. 2-15G with SS box by air cooling for ozone tube, 20G with carbon steel sprayed with plastic box by water cooling for ozone tube.
4. All of model under air source with Auto-dryer, ozone capacity was tested under oxygen source.
Functions:
·Laboratory: chemical oxidation for raw material of flavors and fragrances, small water treatment experiment
·Beverage process industry: such as pure water, spring water and any other water sterilization and disinfection
·Fruits & vegetables process industry: such us keep fresh, storage etc
·Food process industry: water, workshop, sterile room, equipments, tools
·Pharmaceutical industry: water, air conditioner, workshop, dressing room, sterile room etc
·Medical: ward, operating room, medical devices, sterile room etc.
Applications:
Workshop air purifier, Hospital air sterilizer, Greenhouse sterilizer, Farming sterilizer and remove odor, Keep fresh, wash and remove the residual pesticides for vegetable and fruits, Air purifier, Ozone air purifier, Ozone air sterilizer, Workshop sterilizer, Air conditioner room ozone generator, small scale water treatment, Food factory water treatment equipment, Home water treatment.
ABOUT US
>>What we do?
1.We Provide high-quality ozone generator for: Ozone generator wholesalers, Retailers and oneline shops (Ebay, Amazon...), OEM.
2.The custom-made ozonegenerator are available upon customer's idea, drawings, photos etc.
3.ODM-The modification of the ozone generator after customer's selection is accepted.
>>Excellent after-sales service:
1. One year warranty again the manufacture defect.
2. Offer life time consultation on problems occurred.
3. 2M silicone tube and 2PCS air stone gift for any ozone machine order.
4. Report on the making process.Marketing feedbacks tracing.
>>Why choosing us?
1. 7 years production experienced .We are trusty business partner.·
2. Quality Controlled: Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
3. Production Capacity: 3000 pcs per month.
4. We have serial products: ozone tube, UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5. We supply OEM service according to customers' requests and give out professional suggestions.
6. Distributors Offer : Welcome to be our distributor
Company Profile
Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd., located in Guangzhou City, Guangdong Province, is a professional ozone generator manufacturer specializing in R & D, design, manufacture and processing of ozone products & spare parts.
We also provide professional service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are CH-KTB, CH-BT, CH-BT and CH-KTA series of Portable ozone Generators with the brand of "oZocenter".
CH-PTF, CH-PT series of Ceramic Ozone Generators and CH-PC series enamel ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing industry, and pharmaceutical industry etc.
Our series products, which seek for greater perfection and for the quality goal of excellence, is special reflected in the CH-KTB, CH-BT, CH-KTA, CH-PTF, CH-PT & CH-PC series products. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new requirements.
Chuanghuan will become your close partner and friend with its good reputation and professional skills.
