3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer

Carton/wooden case with foam inside for buffering and protection.

Specifications

3g 110v air cool corona discharge small ozone generator
1.Patent
2.Air/oxygen feed
3.Wheels&Handle
4.Multifunction

3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer

  (NT-T)





Control panel:

Voltmeter, Ampmeter, Switch, Timer, Working light, Power light





Features:

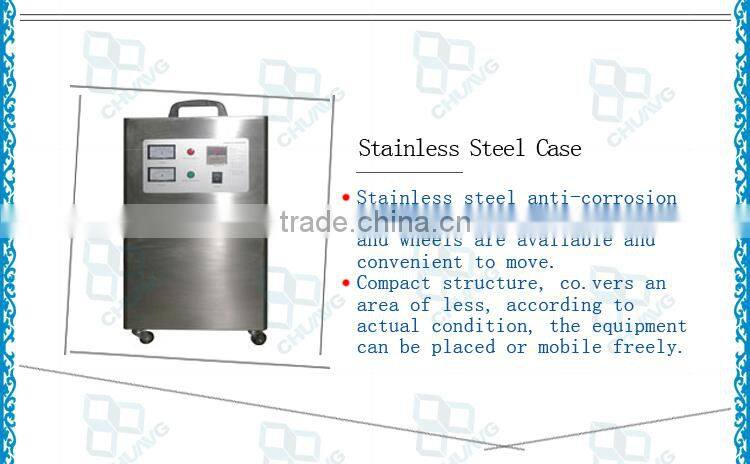

·Wall hanging SS housing



·With built-in Auto-drying system



·With built-in air feed or connect outside oxygen feed

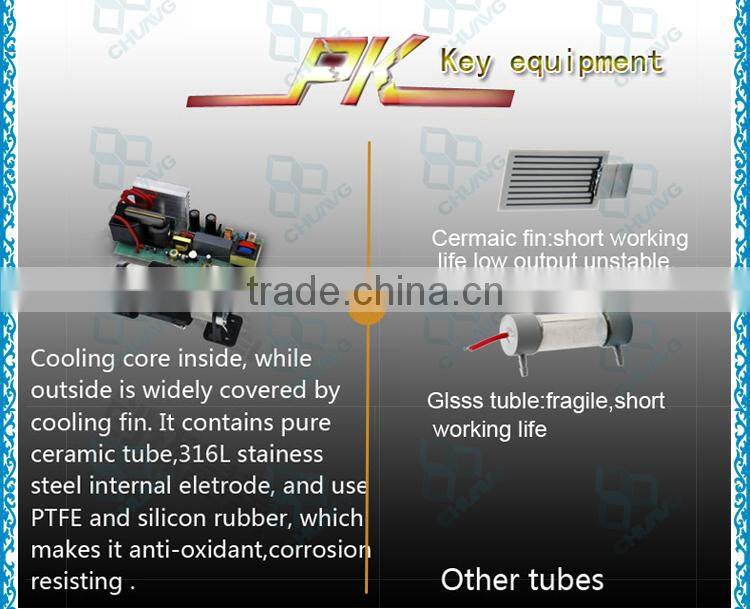

·Use with air cooling ceramic tube, high frequency electric board, thus with stable ozone   capacity, long life time



·Small in size, it can be movable



·Timer: one or two recycle working time

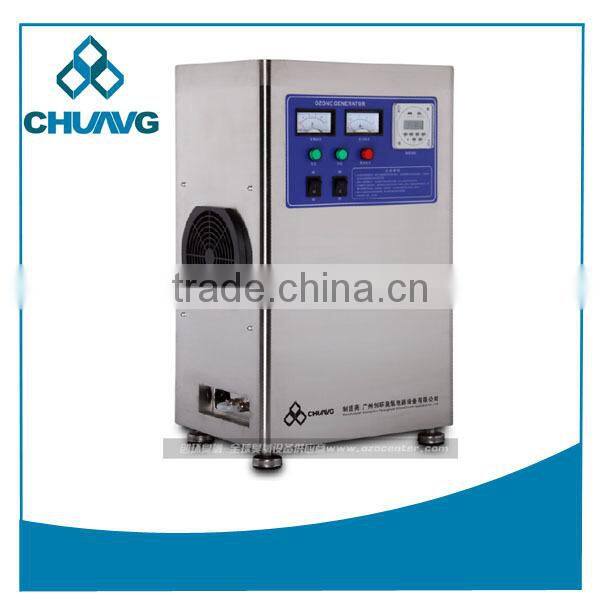

Updated Version without handle



    3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer

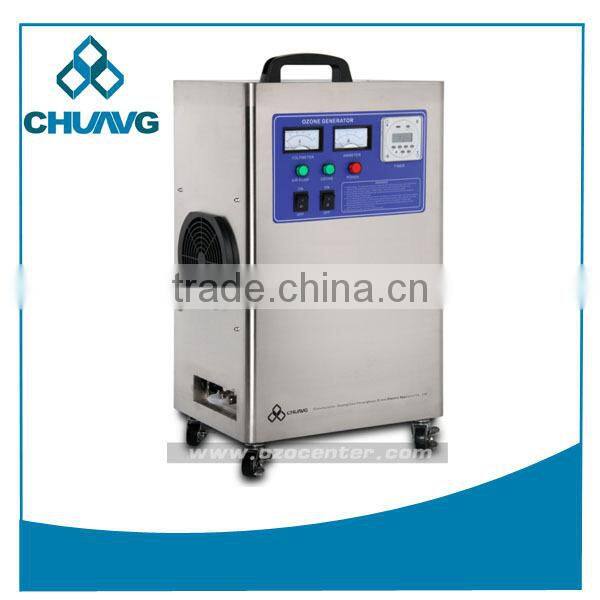

Updated Version with handle



       3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer



Old version







     3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer



Specifications:



Item	Unit	CH-T
		2G	3G	5G	6G	10G	15G	20G
Oxygen flow rate	LPM	0.5~2	1~3	1.2~3	1.5~3.5	2.4~6	3.6~9	3~10
Ozone concentration	Mg/L	28~50	28~65	32~60	28~56	32~60	32~60	51~104
Ozone output	G/Hr	1.5~3.0	4~5.0	4.3~5.7	5.0~5.8	8.6~14.5	13~17	18~31
Power	W	115	135	160	185	260	330	400
Cooling method	Air cooling for internal & external electrodes							Water cooling
Air flow rate (Suggested)	LPM	40~60				50~75		50~90
Compressed air pressure	Mpa	0.025
Fuse of power supply	A	3				5	5	5
Size	mm	360×260×610				400×300×770		400×300×770
Net Weight	kg	11.25		11.30	11.50	18	20	35



Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug.

3. 2-15G with SS box by air cooling for ozone tube, 20G with carbon steel sprayed with plastic box by water cooling for ozone tube.

4. All of model under air source with Auto-dryer, ozone capacity was tested under oxygen source.



Functions:

·Laboratory: chemical oxidation for raw material of flavors and fragrances, small water treatment experiment

·Beverage process industry: such as pure water, spring water and any other water sterilization and disinfection

·Fruits & vegetables process industry: such us keep fresh, storage etc

·Food process industry: water, workshop, sterile room, equipments, tools

·Pharmaceutical industry: water, air conditioner, workshop, dressing room, sterile room etc

·Medical: ward, operating room, medical devices, sterile room etc.



3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer







Applications:

Workshop air purifier, Hospital air sterilizer, Greenhouse sterilizer, Farming sterilizer and remove odor, Keep fresh, wash and remove the residual pesticides for vegetable and fruits, Air purifier, Ozone air purifier, Ozone air sterilizer, Workshop sterilizer, Air conditioner room ozone generator, small scale water treatment, Food factory water treatment equipment, Home water treatment.







     3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer





    3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer



     3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer







     3g 110V air cool corona discharge small ozone generator water treatment/vegetable washer
