hot sell multifunctional disinfection air sterilizer ozone

carton case

Specifications

air sterilizer ozone
1.domestic patent
2.changeable plug
3.ozone adjustable range:20-100%
4.one or two recycle working time

            hot sell multifunctional disinfection air sterilizer ozone                                                      —ZTW





           hot sell multifunctional disinfection air sterilizer ozone DESCRIPTION

WE ARE THE OZONE GENERATOR BEST SUPPLIER IN CHINA!

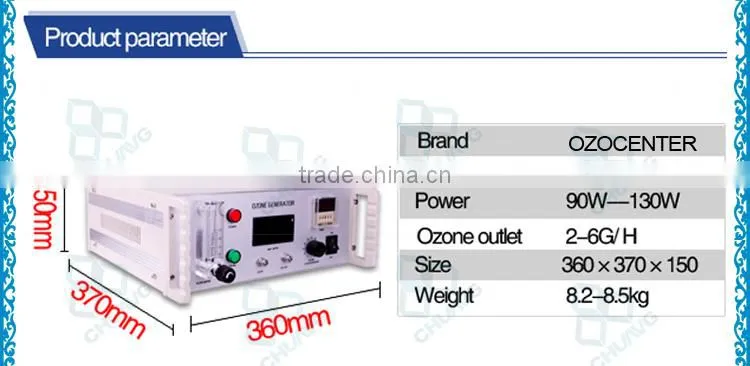

                                                                                                   Specification

Item	Oxygen flow rate	Ozone output	Power	Output gas tube	Fuse	Size	NW
Model	LPM	G/Hr	W	mm	A	mm	Kg
CH-ZTW 2G	1-3	2	90	φ6	3	360×370×150	8.2
CH-ZTW 3G	1-3	3	100				8.3
CH-ZTW 5G	2-5	5	120				8.4
CH-ZTW 6G	2-5	6	130				8.5





 Noted:

 1. Above ozone capacity were tested under oxygen source

 2. Net weight will be 10% different for different plug.



 How to use ?

1.Before use this machine,put it in a stable flat place which can hold its weight.

2.Use the power equipped with the machine.

3.The machine use for air purification,fisrtly attach the silicone tube into the ozone

outlet and then turn on the power.

4.Set the timer and then come out ozone, and put the tube into the room.

5.When use for room air purification, it requires nobody is present, after 30 minutes

people can walk into the room.

6.If use for water treatment, the air stone should be attached into the silicone tube

and put into the water.

7.Attention, the machine should be placed higher than the water, in case that the water

refluex occur.

                     hot sell multifunctional disinfection air sterilizer ozone

 Applications:

>>Keep fresh, wash and remove the residual pesticides for vegetable and fruits,

>>Water treatment ozone generator, Small scale water treatment,

>>Water treatment for food factory, Home water sterilization

>>Hospital water supply sterilization, Home water treatment,

>>Laboratory ozone generator, Cosmetics disinfection,

>>Food package disinfection.

 Functions:

>> Laboratory: chemical oxidation for raw material of flavors and fragrances,

small water treatment experiment.

>>Beverage process industry: such as pure water, spring water and any other water

sterilization and disinfection.

>>Fruits & vegetables process industry: such us keep fresh, storage etc.

>> Food process industry: water, workshop, sterile room, equipments, tools.

>> Pharmaceutical industry: water, air conditioner, workshop, dressing room, sterile room etc.

>> Medical: ward, operating room, medical devices, sterile room etc.







 Ozone Generator

1.Good diffusivity: Ozone gas can reach to everywhere without dead angle.

2.Strong sterilization ability: Ozone sterilization ability is the same with

peroxyacetic acid (C2H403),which is stronger than regular disinfectant.

3.Convenient raw material: Ozone use oxygen gas as raw material, which we

can get from air ambient.

4.Eco-friendly: Ozone can be resolved into oxygen and oxygen atoms, so without

secondary pollution.

UV Sterilizer

1.Weak penetrability, which makes the disinfection effect very weak if the UV

radiation can’t reach.

2.Shorter life time: the sterilization ability decrease along with using time.

And short life time 8,000~12,000 hours (China) with higher repair cost, but ozone

 with 20,000 hours.

3.Harmful for health: UV light is electromagnetic radiation with a wave length of 328~210nm,this could make microorganism die of losing DNA transformation ability.

If UV directly onto people, it will cause skin, eyes problem, even cause skin cancer.

          hot sell multifunctional disinfection air sterilizer ozone

QUALITY CONTROL

Every procedure has personnel inspection.

All the products must be tested and qualified before packaging.



ABOUT US

What we do?

1.We Provide high-quality ozone generator for : Ozone generator wholesalers

Retailers and oneline shops (Ebay, Amazon...)

2.OEM-The custom-made ozone generator are available. Upon customer's idea,

drawings, photos etc.

3.ODM-The modification of the ozone generator after customer's selection is

accepted.

Excellent after-sales service:

1 year warranty again the manufacture defect, offer life time consultation on

problems occurred.

2M silicone tube and 2PCS air stone gift for any ozone machine order.

Report on the making process.Marketing feedbacks tracing.

Why choosing us?

1.Having 7 years production experienced .We are trusty business partner.

2.Quality Controlled:Quality Control personnel check the quality at every stage

of production, from the incoming raw materials to the finished product.

3.CH-ZTW Production Capacity: 3000 pcs per month.

4.We have serial products: ozone tube ,UV water sterilizers, ozone generators,

oxygen concentrators, protein skimmers, and filters, mixing pumps and other water

or air treatment spare parts.

5.We supply OEM service according to customers' requests and give out professional suggestions. Distributors Offer : Welcome to be our distributor .
