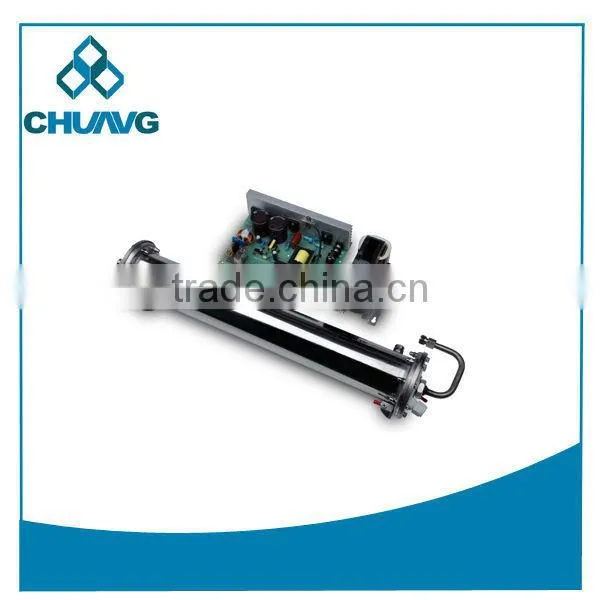

Hot sale 18g-80g water cooling ozone tube
DESCRIPTION
WE ARE THE OZONE GENERATOR BEST SUPPLIER IN CHINA!
CH-PC 18-80G/Hr
Item | Unit | CH-PC18G | CH-PC30G | CH-PC40G | CH-PC60G | CH-PC80G |
Ambient temperature | ℃ | 23 | 23 | 23.9 | 23.9 | 24 |
Ambient humidity | % | 38 | 38 | 37 | ||
Oxygen flow rate | LPM | 1~4 | 2~8 | 3~10 | 5~17 | 8~20 |
Ozone concentration | Mg/L | 112~78 | 123~72 | 123~70 | 120-72 | 118-74 |
Ozone output | G/Hr | 6.7-18.7 | 14.8~34.6 | 22.1-42 | 36-73 | 56-88 |
Power | Kw | ≤0.22 | ≤0.3 | ≤0.4 | ≤0.6 | ≤0.8 |
Cooling method | Water cooling for internal & external electrodes | |||||
Cooling water flow rate | LPM | ≥2 | ||||
Cooling water temperature | ℃ | ambient temperature ± 8℃ | ||||
Diameter of gas inlet/outlet | mm | 1.Air inlet & ozone outlet: EDφ8mm | ||||
Diameter of water inlet/outlet |
| EDφ10mm | ||||
Adjustable range | % | 20-100 | ||||
Power supply | V/Hz | 110/220V 60/50HZ | ||||
Fuse | A | 3 | 5 | 10 | ||
Ozone tube dimension | mm | 285*160*125 | 340*160*125 | 460*160*125 | 600*160*125 | 705*160*125 |
Power supply dimension | mm | 212*90*95 | 189*146*95 | 210*146*62 | ||
Ozone tube weight | Kg | 2.5 | 3 | 3.6 | 4.9 | 5.45 |
Power supply weight | Kg | 1 | 2.4 | |||
Working conditions:
Dew point:>-45,
Ambient temperature:32°C,
Oxygen concentration:>99%,
Cooling water output temperature: 35°C
QUALITY CONTROL
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
ABOUT US
What we do?
1.We Provide high-quality ozone generator for : Ozone generator wholesalers
Retailers and oneline shops (Ebay, Amazon...)
2.OEM-The custom-made ozone generator are available. Upon customer's idea,
drawings, photos etc.
3.ODM-The modification of the ozone generator after customer's selection is
accepted.
Excellent after-sales service:
>>1 year warranty again the manufacture defect, offer life time consultation on
problems occurred.
>>2M silicone tube and 2PCS air stone gift for any ozone machine order.
Report on the making process.Marketing feedbacks tracing.
