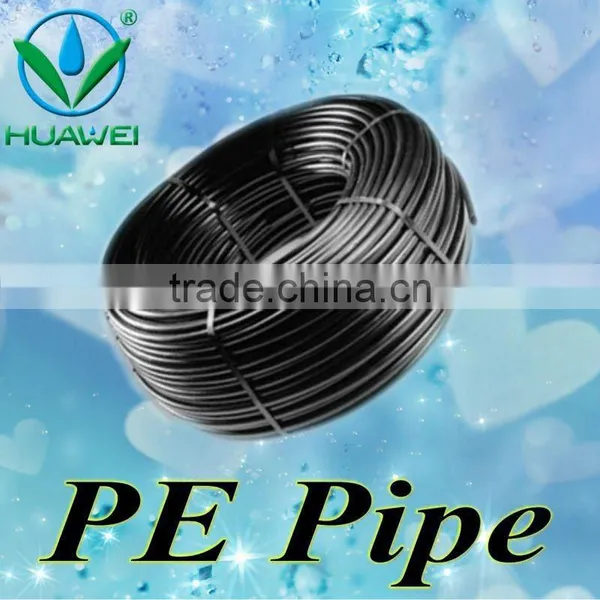

Irrigation PE water pipe PE Lateral Pipe

Specifications

Irrigation PE water pipe PE Lateral Pipe

Product Code:

• 1012 Φ12 - 1.0mm PE Pipe with 1000m per Roll
• 1016 Φ16 - 1.0mm PE Pipe with 1000m per Roll
• 1020 Φ20 - 1.8mm PE Pipe with 500m per Roll
• 1025 Φ25 - 2.0mm PE Pipe with 400m per Roll
• 1032 Φ32 - 2.3mm PE Pipe with 250m per Roll
• 1040 Φ40 - 3.0mm PE Pipe with 200m per Roll
• 1050 Φ50 - 3.4mm PE Pipe with 100m per Roll
• 1063 Φ63 - 3.8mm PE Pipe with 100m per Roll

Features and Specifications:

• Use Compression fittings to connect PE Pipe.
• Operating Pressure: 1.0 – 4.0 bar.
• High Quality PE (Polyethylene) Tubing.
• Manufactured with Finger Print PE Resign.
• Long service life: More than 20 years under the rated temperature and pressure.
• Good corrosion resistant except a few strong oxidizings. PE pipe is corrosion resistant to many chemical medium and no electric chemical corrosion.
• Excellent worn resistance-PE pipes worn resistance is four times over than steel pipe then conveying mineral sand and slurry.
• Quite good impact-resistant-PE pipe has good flexibility and impact resistant that it wont be broken when heavy object pressed on it.
• Reliable joining the seam of joining won’t be cracked due to moving of soil or load because the strength of the heat or elect-melted interface is stronger than the PE pipe itself.
• Easy for installation the pipeline has a light weight, simply welding skill.
• Convenient for installation and a lower cost of the project.

NOTE: The wall-thickness and length can be available according to the customer requirements.
