PE Pipe from Shanghai Huawei Drip Tape 16mm

Specifications

PE Pipe
Diameter: 16mm-75mm
Use in Irrigation.
High Quality Pe Pipe

PE Pipe

Brief Description:

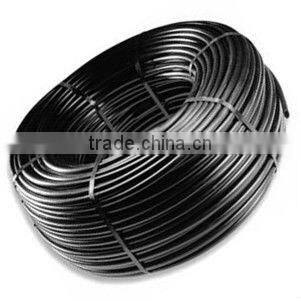

Irrigation always uses PE pipe (Polyethylene tubing) as the main water delivery to the drippers and micro sprinklers. That is the line which is used from the valve to the plants or from the main line to the plants. Our PE pipes are made in black color. PE pipes with the outside diameter of less than 63mm may also be supplied in coil with different length, 200 meters, 500 meters, 1000 meters, and so on. PE pipe are connected by the compression fittings.

Product Code:

·         1012 Φ12 - 1.0mm PE Pipe with 1000m per Roll

·         1016 Φ16 - 1.0mm PE Pipe with 1000m per Roll

·         1020 Φ20 - 1.8mm PE Pipe with 500m per Roll

·         1025 Φ25 - 2.0mm PE Pipe with 400m per Roll

·         1032 Φ32 - 2.3mm PE Pipe with 250m per Roll

·         1040 Φ40 - 3.0mm PE Pipe with 200m per Roll

·         1050 Φ50 - 3.4mm PE Pipe with 100m per Roll

·         1063 Φ63 - 3.8mm PE Pipe with 100m per Roll

Features and Specifications:

·         Use Compression fittings to connect PE Pipe.

·         Operating Pressure: 1.0 – 4.0 bar.

·         High Quality PE (Polyethylene) Tubing.

·         Manufactured with Finger Print PE Resign.

·         Long service life: More than 20 years under the rated temperature and pressure.

·
