Specifications
Feature of PE insulation for air conditioning tube1. Anti-UV, low water absorption
2. Low density
3.Low thermal conductivity
1.Characteristics of PE insulation for air conditioning tube :
1. Closed-cell Structure.
2. Low Heating Conductivity.
3. Low Water Absorption Rate.
4. Good Fireproof and Soundproof Performance.
5. Good Aging Resistance Performance.
6. Simple and Easy Installation.
2.Features of PE insulation for air conditioning tube:
pper tube:O.D.1/4''&3/8'',1/4''&1/2'',1/4''&5/8'',3/8''&5/8'',3/8''&3/4'',1/2''&3/4''
2,O.D of copper tube and thickness can order according to the demand of customer.
3,Length: 3 meters to 1000meters
4,PE insulation pipe:thickness from 8mm to 10mm.
5,Character:Anti-UV,good heat resistance,low water absorption
6,Insulation pipe can be printed with letter.

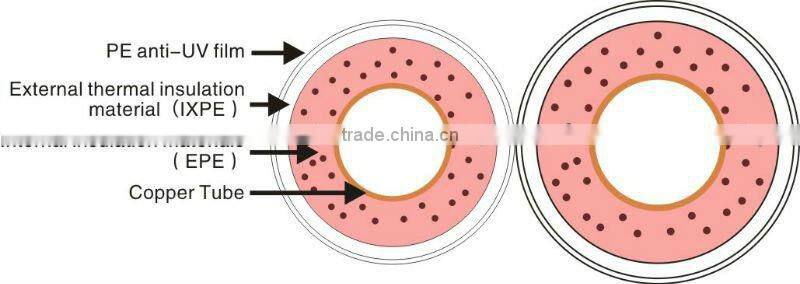

7,Component: Outer PE corrugated hard skin inner insulation tube.
8. Two ends of 3M-10M air condition coating copper tube can join copper cover.
specificaton |
diameter of copper tube |
diameter of insulation |
wall thickness of insulation tube |
1/4”+3/8” |
6.35×0.8+9.52×0.8 |
φ8+φ12 |
8-10mm |
1/4”+1/2” |
6.35×0.8+12.70×0.8 |
φ8+φ14 |
8-10mm |
1/4”+5/8” |
6.35×0.8+15.88×1.0 |
φ8+φ18 |
8-10mm |
3/8”+5/8” |
9.52×0.8+15.88×1.0 |
φ12+φ18 |
8-10mm |
3/8”+3/4” |
9.52×0.8+19.05×1.0 |
φ12+φ22 |
8-10mm |
1/2”+3/4” |
12.70×0.8+19.05×1.0 |
φ14+φ22 |
8-10mm |
3.Physical properties of PE insulation for air conditioning tube
|
Item |
Unit |
Performance index |
1 |
Surface density |
g/cm3 |
0.0033±0.005 |
2 |
Stretch intensity |
N/cm2 |
14.7 |
3 |
Heat coefficient |
W/m·K |
≤0.042 |
4 |
Compressive permanent deform(10%) |
|
≤7 |
5 |
Absorbing water rate(24h) |
g/100 cm2 |
0.01 |
6 |
Rupture intensity |
N/cm2 |
≥3.0 |
7 |
Heat size various rate(+60/24h) |
|
Length≤1.0 Wall thickness≤1.0 |
8 |
Heat-resistance performance(105/4h) |
/ |
Wall thickness contract rate10 Length contract rate10No gum, no swell and no other deteriorate phenomena. |
9 |
Lowest use temperature (-40/4h) |
/ |
Bend 90°, no chap and no other deteriorate phenomena. |
10 |
Burn-resistance performance |
/ |
Pipe leave fire root; automatically go out in 30 seconds |
4.Usaging of PE insulation for air conditioning tube
1)air-conditioning pipe insulation is a flexible, epe foaming thermal insulation pipe
2) The most popular type of insulation used for household and auto air-conditioning
Packing:film bag
