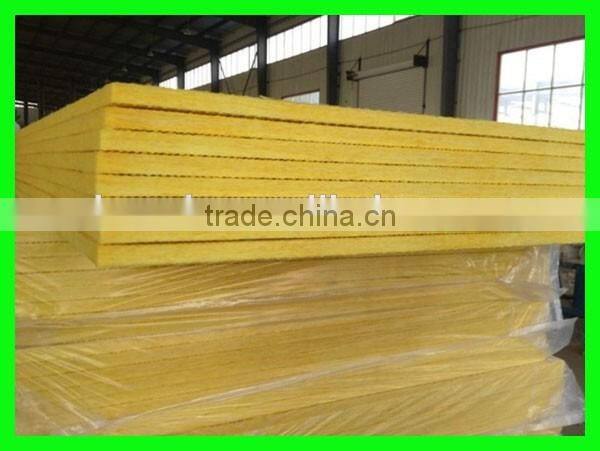

Non-flammable glass wool acoustic insulation
board building materials
1.Specification:
(1) Density: 32-96kg/m3 (2) Wideth 600-1500 mm Length 1200-2400 m (3) Thickness:25-200mm(Special size can be made to order)
(2) Australia standard: R-value:1-4 Size:1160*580/430mm thickness:25-200mm
The surface can cover alimunim foil,pvc film and kraft paper.
2.Introdution:
insulation glass wool is a silk-like material made by fiberization in the TEL process and spraying of thermosetting resin. By further deep processing of thermal setting, this material can be made into series of multi-purpose fuerda products. It features numerous advantages: it is non-combustible, nontoxic, and resistant to corrosion; it has low moisture rate and good hydrophobicity.
3.Performance:
1) Heat insulation and heat preservation, sound adsorption and noise reduction
2) Low slag indusion content, thin and long inner fiber
3) Thermal stability, stable and high efficiency for a long time
4) High temperature heat-stability, durability, high temperature shrinkage resistance
5) Damp proof property, with the hydrophobicity are not less than 98%
6) Excellent fire proof performance, European standard non-flammable class A material
7) Non-poison, not contain rock wool and doesn't grow the mould etc.
4.detail insulation:
Product specifications:
density(kg/m3) |
width(mm) |
thickness(mm) |
length(m) |
packing/roll |
|
10-48 |
600 |
25-200 |
5-30 |
2roll |
|
10-48 |
1100 |
25-200 |
5-30 |
1roll |
two-roll overlapping |
10-48 |
1150 |
25-200 |
5-30 |
1roll |
two-roll overlapping |
10-48 |
1200 |
25-200 |
5-30 |
1roll |
two-roll overlapping |
10-48 |
1250 |
25-200 |
5-30 |
1roll |
two-roll overlapping |
Technical Parameters
item |
unit |
index |
measured value |
remarks |
bulk density |
kg/m3 |
10-96 |
10-96 |
GB/T 13350-2000 |
average diameter of fibers |
m |
< 8.0 |
4.0-6.0 |
GB/T 13350-2000 |
moisture resistivity |
% |
> 98 |
> 98.5 |
JISA9512-2000 |
thermal conductivity |
W/m.k |
0.049-0.042 |
0.045-0.032 |
GB/T 13350-2000 |
incombustibility |
|
incombustible |
up to standard (Grade A) |
GB/T 13350-2000 |
sound absorption coefficient |
|
|
1.03product reverberation positioning 24kg/m3 2000HZ |
GB/J47-83 |
Max. working temperature |
|
400 |
410 |
GB/T 13350-2000 |
Physical Properties
shrinkage temperature of heat load |
GB/T11835-1998 |
250 -400 |
corrosion resistance |
ASTM C665 |
no chemical reaction |
mildew resistance |
ASTM C665 |
mildewproof |
performance |
experimental method |
technical requirements |
moisture absorption |
ASTM C1104 |
3% of weight (49 , relative humidity 90%) |
moisture permeability |
ASTM E96 |
Max. 0.013g/24h • m2 • mercury/mm |
combustibility |
UL723 |
flame spreading:25 |
5.Application
1.The heat insulation and sound absorption materials for roof.
2.The building heat insulation materials;
3.Recreation place (theatre, movie theater, KTV, etc.)And the sound absorption of equipments (Computer, air pressure machine, etc.);
4.Air conditioner pipe,,industry,refrigeration, and heat insulation of refrigerating warehouses
6.Our services and certificate:
-
1. If you have not much experience for glass wool,don't worry it,we will help you to entry your market.
RE: Tell us your budget and target market and we will give you professional advice of exact kinds and quality.
2. MOQ:
RE: No MOQ limit, from 1 pieces to 100 containers all available upon your demand.but if the quantity is small, the production time is a little long.
3.sample:
RE: Yes. Samples can be provided for free but you should take charge for the freight fee and we will pay it back to you when you place first order.
4.OEM service:
RE: Yes. we can make the packing design as your require. or you can send the packing design to us. we can do it.
5.payment terms:
RE: a) T/T, 30% deposit and 70% balance.
duction time:
RE: Generally,delivery time is within 7 days; The exact delivery time should depend on the quantity.
IF YOU CHOICE US,WE WILL SUPPLY THE BEST SERVICE AND QUALITY TO YOU!!!!!
TRUST US!!!BEST CHOICE!!!
