Specifications
Characteristics:1) Excellent fireproof property
2) Perfect cold resistance performance
3) Superior impact resistance,corrosi
specification:

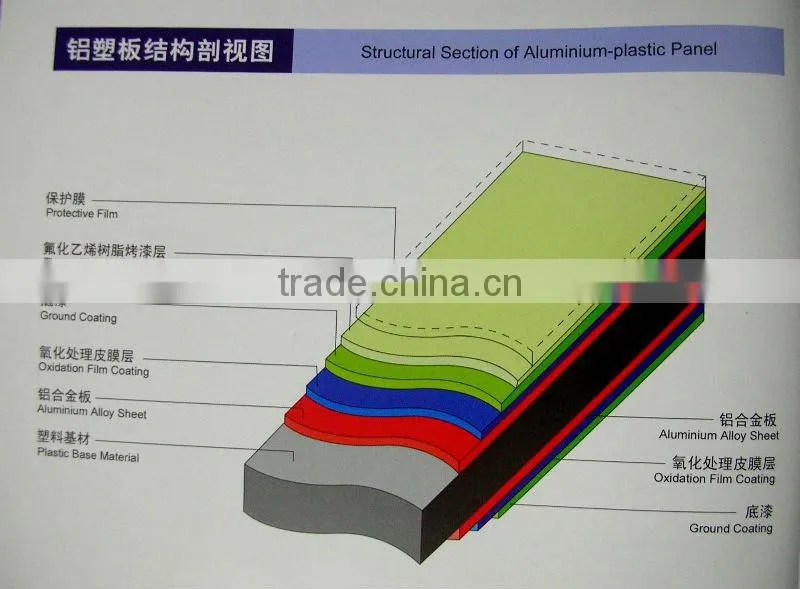

1) Materials:
a) Front: aluminum plate coated with PVDF or polyester
b) Back: aluminum plate coated with polyester
c) Core: fireproof plastic
2) Colors: 30 colors optional, new colors available upon requests
3) Excellent fireproof property
4) Perfect cold resistance performance
5) Excellent surface flatness and smoothness
6) Superior weather, corrosion, pollutant resistance
7) Superior impact resistance8) Super peeling strength
9) Even coating, various colors
10) Impact resistant, light weight and easy to process
11) Easy to maintain
Detailed products specification | ||
Commodity: |
Aluminum Composite Panel |
|
Fire-rating: |
Grade A2 & B1 |
|
Surface Finish: |
PE & & PVDF & NANO & Wooden Finish & Stone Finish & Brush Finish & Mirror Finish |
|
Panel Dimensions: |
Thickness (mm) |
2mm, 3mm, 4mm, 5mm, 6mm |
Skin Thickness (mm) |
0.10mm, 0.12mm, 0.15mm, 0.18mm, 0.20mm, 0.25mm, 0.30mm,0.35mm,0.40mm,0.45mm,0.50mm |
|
Width (mm) |
1000mm, 1220mm, 1250mm, 1500mm, 1520mm,1570mm, 2000mm |
|
Length (mm) |
2050mm, 2440mm, 3050mm, 4050mm, 5200mm, 5800mm, 6000mm |
|
Color: |
More than 30 kinds standard color and RAL color available, new color available upon request |
|
Surface Properties |
Pencil Hardness |
> HB/> 2H |
Temperature Resistance |
-50 oCÂ to oC |
|
Impact strength(kg. cm) |
50 |
|
Bolling Resistance |
Boiling for 2 hours without change |
|
Acid Resistance |
Immerse Surface in 2% HC1 for 48 hours without change |
|
Alkaili Resistance |
Immerse Surface in 2% NaOH for 48 hours without change |
|
Oil Resistance |
Immerse Surface in 20# engine oil for 48 hours without change |
|
Solvent Resistance |
Cleaned 100 times with Dimethylbezene without change |
|
Cleaning Resistance |
Over 1000 times without change |
|
Peel Strenght 180 oC |
180oC> 5 Newton/mm |
|
Product Properties |
Sound Absorbtion NRC |
0.05 |
Sound Attenuation Rw db |
23/24/25 |
|
Water Absorbtion % by volume |
0.0047/0.0057/0.0012 |
|
Core Composition |
LDPE Polyethylene, Non- Combustible Material |
|
Application scope:
1) Gas piping, cables, building materials, etc (this product fills a gap
in the domestic construction materials field, with performance
indexes superior to panels manufactured overseas)
2) Curtain wall decoration for buildings where security is important,
such as airports, hospitals and research centers
3) Curtain wallboards for outside walls of normal buildings
4) Renovations of old buildings and movable houses
5) Reformation and decoration for indoor walls, ceilings, bathrooms,
kitchens and balconies
6) Facades
7) Billboards, exhibition desks and notice boards
8) Wallboards and ceilings for tunnels
9) Materials for industrial application, car and ship bodies

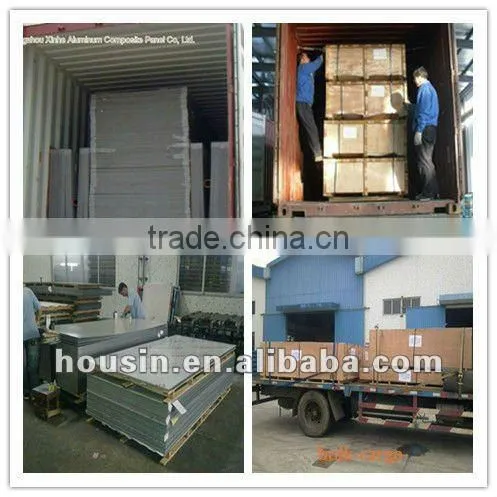

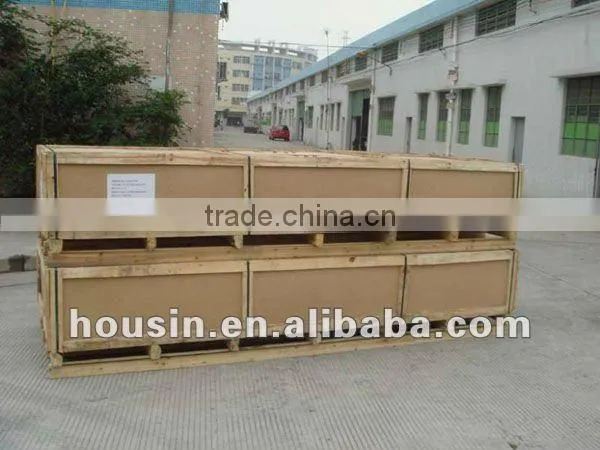

Packing:
Wooden pallet and in bulk
contacter:
xiamen housin manufacturing&trading
tel:0086-592-3855671/3855672
fax:0086-592-3855673
