Calcium Silicate Board Thermal insulation1.high density,heat-preventing
2.fireproof,quakeproof
3.waterproof
4.long service

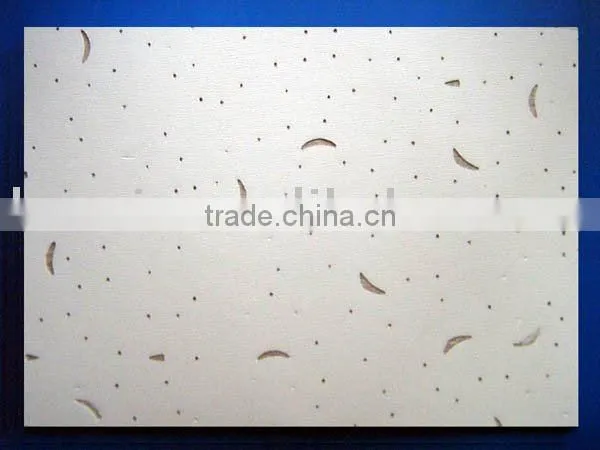

Calcium Silicate Board Thermal insulation
It is mainly made from silicious material, lime fractory and reforcing fiber through the process of slurrying,forming,high pressure steam curing, drying, surfacing and so on.
Category:Plane Printing Series,Sculpture Series, Embossment Series,Dream Colour Series and Perforating Series
Physical properties of calcium silicate ceiling tiles
Properties | Data |
Materials | silicate, quartz sand, plant fiber, etc. |
Design | various |
Fireproofing features | Incombustible A-class material (GB8624-1997) |
Refractory High-point | 4.0 hours (GB/T9978-1999) |
Bulk density | 1.2-1.6 g/cm3 |
Moisture content | <10% |
Sound insulation | 45db (GBJ75-84) |
Edge | square or bevelled |
Wet-inflation rate | <0.17% |
Shrinkage rate | <0.08% (GB/T7019-1997) |
Radioactivity: | conform to GB6566-2001A Class |
Pull-out strength of screw | ≥95.4N/mm |
Anti-bend strength | ≥13Mpa |
Secification of calcium silicate ceiling board :595mm*595mm*(4-6mm)
600mm*600mm*(4-6mm)
603mm*603mm*(4-6mm)
Applications:
suspended ceiling,fireproof board. It can be used for: Commercial and industrial construction,residential buidling, movie theaters, exhibition halls, restaurants, hotels, hospitals, train station or MRT stations and so on.
Packing of calcium silicate ceiling tiles
in cartons or in bulk
