Specifications
1.High output.2. High cleanliness . 3.Good quality and Germany technology4. low power consumption5.Excellent after-sales serv
Feature and Function:

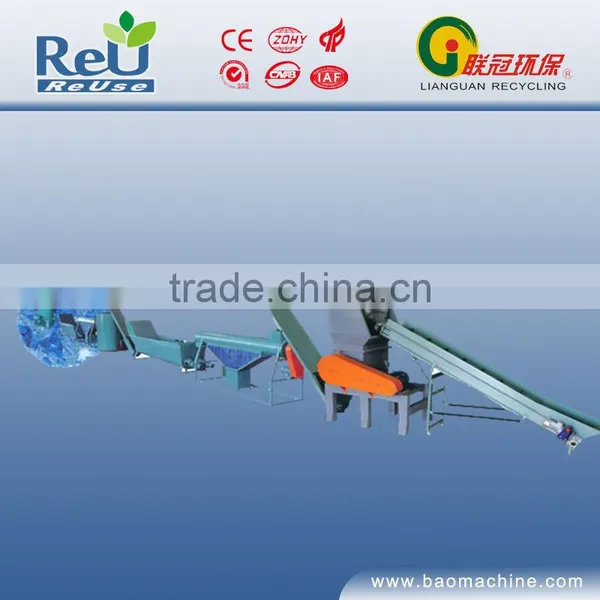

Ø It is mainly for PET materials' washing and cleaning. PVC and some other plastics are also can be washed by this line. The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation.
Ø This PET bottle flakes crushing, recycling and washing production line can easily wash and recycle waste PET bottle flakes ,which includes PE/PP labels, PVC labels, paper labels, HDPE cups, glue, mud, beverage leftover, oil, and scrap iron.
Ø It adopts hot water washing to get good quality. Various output capacities can be chosen: 300KG/H, 500kg/h, 1000kg/h, 1500kg/h and 2000kg/h...
Ø The degree of cleaning is as much as 96% and the degree of drying is as much as 98%.
Ø With this line, the plastic flakes can reach grade A. You can sell a very good price.
Ø We providing turn-key project for our customer, design-product-installment-testing.
Machine list and function:
No. |
Item |
Qty |
Remark |
1 |
Bale breaker |
1 set |
Cut and break packaged PET bottles |
2 |
Belt conveyer |
1 set |
Conveying bottles |
3 |
Screening machine |
1set |
Filtering sand, dirty, impurity |
4 |
Belt conveyor |
1set |
Conveying bottles |
5 |
Label remover |
1 set |
Removing label from surface of bottle Label removing efficiency: 90%-95% |
6 |
Manual sorting table |
1 set |
Sorting different plastics by manually |
7 |
Metal detector |
1set |
Detecting metal, aluminum, stainless steel and so on automatically |
8 |
Belt conveyer |
1 set |
Conveying bottles |
6 |
Wet Crusher |
1 set |
With water, the material of the blade adopt SKD-II or 9CrSi |
7 |
Screw feeder |
1 set |
Conveying flakes |
8 |
Twin screw floating washer |
1 set |
Washing and separate PP caps/label according to different specific gravity |
9 |
Screw feeder |
1 set |
Conveying flakes |
10 |
Hot steam washer |
1 set |
Removing oil by NAOH and hot washer or hot steam |
11 |
Screw feeder |
1 set |
Conveying flakes |
12 |
Friction washer |
1 set |
High friction efficiency by high speed, adopt Germany technology |
13 |
Twin screw floating washer |
1 set |
Washing and separate PP caps/label according to different specific gravity |
14 |
Dewatering machine |
1 set |
High dewatering efficiency by high speed, adopt Germany technology, water content 5% |
15 |
Label separator |
1set |
Separating leftover label from pet flakes |
16 |
Drying system and Storage hopper |
1 set |
Drying by electric, water content ≤2% |
17 |
Electrical control cabinet |
1 set |
Adopts ABB , SIEMENS and OMRON as main electric component. |
|
Annotation: 1, some equipment can be increased or decreased as the dirty degree of the bottles and the capacity. 2, the material can be made by the customers’ requirement. Normal are carbon steel or stainless steel. | |||
Certificate:
CE Certificate, ISO9001 Quality Certificate
