Help CenterTire Shredding Machine
Related Products
Specifications
twin shaft shredding machineno pollution to water and air
loser noise and higher torque
easy to maintainance and operation
Automatic control by microcomputer (PC), with functions of start, stop, reverse, overload automatic reverse, feature return and over-loading returns automatism, with characteristics of big torque in low speed, low noise. Suitable for crushing the solid material like television, washing machine, shell of refrigerator, medium size pipe, pipe fittings, forklift splint, tyres, packing barrel. Based on the original machine, closed-circuit crush until to the setting standard by rotary screen.

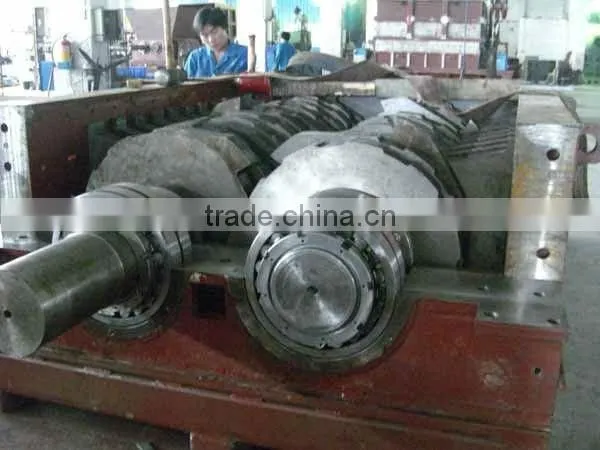

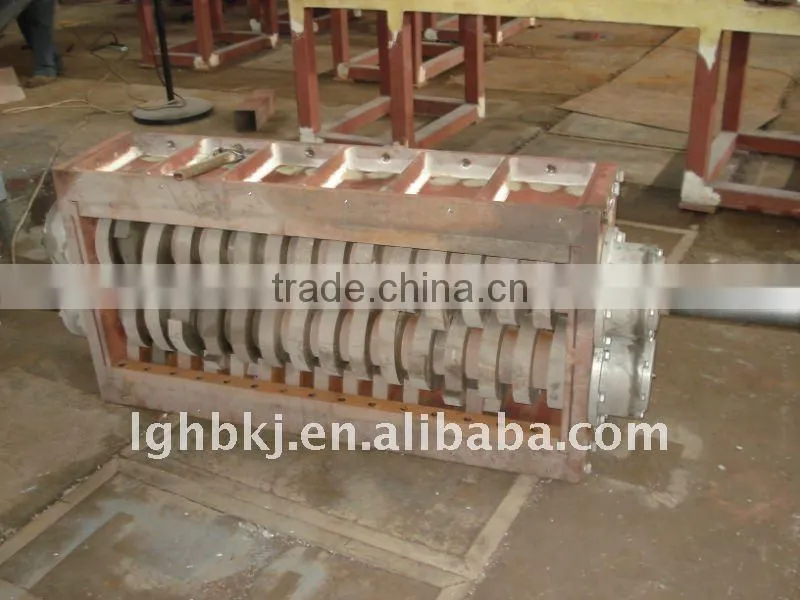

Standard Rotor-1.knives is 40mm, optional 15mm or 20mm, and it is also available to choose the blade size according to the pellet after shredding.
2.Rotorknives is the single blade body by default. For double blade body or multi blade, please confirm with our sales. In the case of shredding film or woven bag, please specify
|

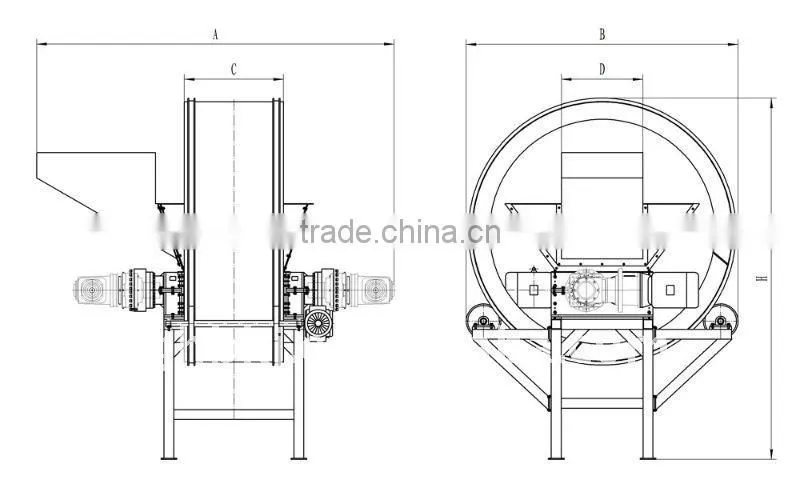

Model Item |
Unit |
LGDS3280 |
LGDS32100 |
LGDS32120 |
A |
(mm) |
3417 |
3880 |
4080 |
B |
(mm) |
3190 |
3275 |
3445 |
C |
(mm) |
804 |
1004 |
1204 |
D |
(mm) |
776 |
776 |
776 |
E |
(mm) |
852 |
1052 |
1252 |
H |
(mm) |
3740 |
3690 |
3700 |
Rotor Diameter |
(mm) |
φ430 |
φ430 |
φ430 |
Main Shaft Speed |
(r/min) |
15 |
15 |
15 |
Rotor-knives |
(PCS) |
20 |
25 |
25 |
Stator-knives Th. |
(mm) |
40 |
40 |
40 |
Main Motor Power |
(KW) |
15+15 |
22+22 |
22+22 |
Weight |
(KG) |
5000 |
7100 |
8700 |
