Specifications

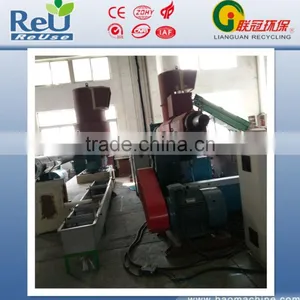

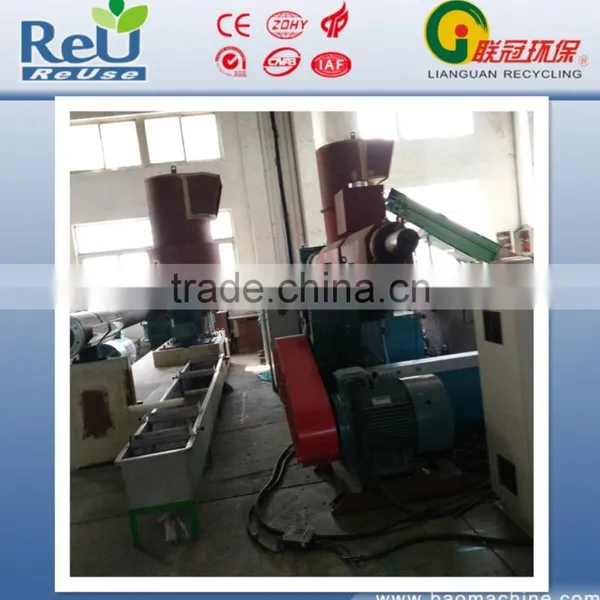

pelletizing plant
1,SS compact agglomerator
2, 38CrMoAlA screw and barrel
3, water-ring cutter
4, ABB inverter
the pelletizing plant is used to granulate the recycled clean PE/PP/BOPP soft materials such as films and bags materials. meanwhile, it can be used for make PET/PS granules also.
Properties
1, agglomerator is cutting compactor type, feeding to barrel directly, save 30-50% power compare to the
traditional agglomerator;
2,reducer is vertical type, big torque, smaller area requirement;
3,barrel and screw are made of 38CrMoAlA, with nitriding processing
4, pellet cutter with 3blades, wate-ring cooling and cutting at the same time
5, cooling water circular use.
6, vertical centrifugal dewatering, humidity<2%,
7, speed of main motor and pelleting cutter motor are control by ABB inverter,
8, ABB inverters, SIEMENS electrical parts, OMRON temp. meter
9, belt conveyor and agglomerator are coordinated control, if more materials are in agglomerator, the belt
conveyor will stop a little while, and convey mateials again till there is less materials in agglomerator
the complete granulating line generally consists of the following units
| No | machine Name | qty | power (kw) |
| 1 | belt conveyor | 1 | 2.2 |
| 2 | agglomerator(connect to extruder drectly) | 1 | 30-90 |
| 3 | single-screw extruder | 1 | 22-160 |
| 4 | hydraulic screen changer | 1 | 3 |
| 5 | water-ring pellet cutter | 1 | 1.5-3 |
| 6 | dewatering machine | 1 | 3-11 |
| 7 | cyclone silo | 1 | 3-11 |
| 8 | control cabinet | 1 |
Standard screw models
| Screw diameter(mm) | 75 | 90 | 100 | 120 | 150 | 175 |
| L/D | 75/25 | 90/25 | 100/25 | 120/10 | 150/10 | 175/10 |
| 75/38 | 90/28 | 100/28 | 120/20 | 150/20 | 175/25 | |
| 75/32 | 90/32 | 100/32 | 120/26 | 150/26 | ||
| 75/34 | 120/28 | 150/28 | ||||
| 150/32 |
Available capacity at present
| capacity(kg/h) | 50-100 | 100-150 | 150-200 | 200-300 | 300-400 | 400-500 |
| plastic | pe/pp | pe/pp | pe/pp | pe/pp | pe/pp | pe/pp |
| PET/PS | PET/PS | PET/PS | PET/PS | PET/PS | PET/PS |
By your real situation, our professional technical Team will design the best proposal solution for you, and
we promise to send you the best offer at the same time
