2015 Factory Sell Drum Type Wood Chipper Timber Grinding Machine With Competitive Price

2015 Factory Sell Drum Type Wood Chipper Timber Grinding Machine With Competitive Price photo-1
2015 Factory Sell Drum Type Wood Chipper Timber Grinding Machine With Competitive Price photo-2
2015 Factory Sell Drum Type Wood Chipper Timber Grinding Machine With Competitive Price photo-3
2015 Factory Sell Drum Type Wood Chipper Timber Grinding Machine With Competitive Price photo-4
2015 Factory Sell Drum Type Wood Chipper Timber Grinding Machine With Competitive Price photo-5
2015 Factory Sell Drum Type Wood Chipper Timber Grinding Machine With Competitive Price photo-6
US$ 5,000 - 13,330 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Wood Chipper, Drum type Wood Chipper Timber Grinding Machine
Use:
wood timber chipper
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ninbbo/Shenzhen/Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Wood Chipper, Drum type Wood Chipper Timber Grinding Machine
Use wood timber chipper
Power Type Electric
Production Capacity 12-15t/h
Place of Origin Henan, China
Brand Name JX
Model Number JX218
Dimension(L*W*H) 4670*2150*1500mm
Weight 7000kg
Certification CE,GOST,SGS
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

2015 Factory sell Drum type Wood Chipper Timber Grinding Machine with competitive price



A:Drum type wood chipper timber grinding machine brief Introduction:

1.Drum wood timber chipper series product

is the special equipment, production of wood products are widely applied in particle board factory,

2.Because of the high density fiberboard, stubble, biomass power plant, wood factory industries and manufacturer of preparation before production units.

3.The product structure, advanced materials, cutting of high quality raw light adaptability, convenient operation and maintenance.



B:Drum type wood chipper timber grinding machine Raw Material:

The main raw materials are cutting wood, wood cutting, paths using (such as the branches, branches, and the slab, attrib wattle, logs, waste veneer, etc),

and it can also be used to cutting non-wood materials (such as sugar cane, reed, bamboo, etc.).



C: Drum type wood chipper timber grinding machine main constitute:

The drum wood timber chipper is made up of airframe, knife roller, and feed roller, conveyor belt, hydraulic system components. The machine adopts high strength steel welded, the whole machine is the supporting basis. Knife roller installed on two or three, four fly, fly with specialized in manufacturing, through the bolt, put pressure on the knife roller fixed on the fly.



 D: Drum type wood chipper timber grinding machine technical specification:



Model

JX215

JX216

JX218

Feeding size(mm)

180*400

230*500

300*680

Quantity fly_cutter (piece)

2

2

2

Knife roll speed(turn)

592

590

650

Max-mum diameter of the material(mm)

160

230

300

Chipper size(mm)

30

30

30

Capacity( T)

3-4

7-8

12-15

Main motor power(kw)

45

55

110

Feeding roll motor power(kw)

2.2-3

3-4

4-5

oil pump motor power(kw)

1.5*1

1.5*1

1.5*1

Weight(kg)

2990

4070

7000

Overall dimensions(mm)

1540*1240*1020

4348*1730*1258

4670*2150*1500

Conveyor motor power(kw)



3

3

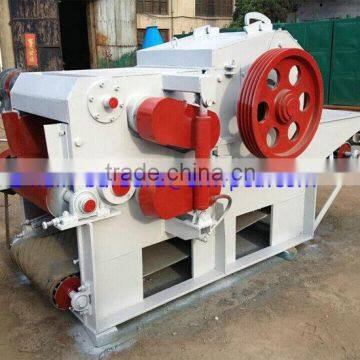

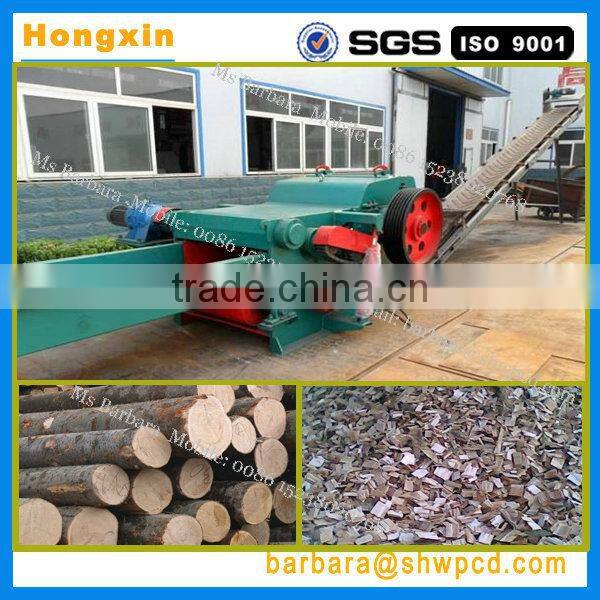

E:Drum type wood chipper timber grinding machine pictures:

2015 Factory sell Drum type Wood Chipper Timber Grinding Machine with competitive price2015 Factory sell Drum type Wood Chipper Timber Grinding Machine with competitive price2015 Factory sell Drum type Wood Chipper Timber Grinding Machine with competitive price2015 Factory sell Drum type Wood Chipper Timber Grinding Machine with competitive price





My friend, If you are interested in any type of our  wood timber chipper machine, and other wood machines , you are welcome to contact with me freely.

2015 Factory sell Drum type Wood Chipper Timber Grinding Machine with competitive price
