Sell automatic drum wood chipper machine
A:Brief Introduction of automatic drum wood chipper machine:
1. Automatic drum wood chipper machine series product
is the special equipment, production of wood products are widely applied in particle board factory,
2.Because of the high density fiberboard, stubble, biomass power plant, wood factory industries and manufacturer of preparation before production units.
3.The product structure, advanced materials, cutting of high quality raw light adaptability, convenient operation and maintenance.
B:The Raw Material of automatic drum wood chipper machine:
The main raw materials are cutting wood, wood cutting, paths using (such as the branches, branches, and the slab, attrib wattle, logs, waste veneer, etc),
and Automatic drum wood chipper machine can also be used to cutting non-wood materials
(such as sugar cane, reed, bamboo, etc.).
C:The Main constitute of automatic drum wood chipper machine :
The machine is made up of airframe, knife roller, and feed roller, conveyor belt, hydraulic system components. The machine adopts high strength steel welded, the whole machine is the supporting basis. Knife roller installed on two or three, four fly, fly with specialized in manufacturing, through the bolt, put pressure on the knife roller fixed on the fly.
D: The main parameter of automatic drum wood chipper machine:
Model |
JX216 |
JX218 |
JX2113 |
Feeding size(mm) |
230*500 |
300*680 |
450*700 |
Quantity fly_cutter (piece) |
2 |
2 |
2 |
Knife roll speed(turn) |
590 |
650 |
500 |
Max-mum diameter of the material(mm) |
230 |
300 |
450 |
Chipper size(mm) |
30 |
30 |
38 |
Capacity( T) |
7-8 |
12-15 |
15-30 |
Main motor power(kw) |
55 |
110 |
200-250 |
Feeding roll motor power(kw) |
3-4 |
4-5 |
7.5*2 |
oil pump motor power(kw) |
1.5*1 |
1.5*1 |
3*1 |
Weight(kg) |
4070 |
7000 |
11840 |
Overall dimensions(mm) |
1800*1900*1210 |
2200*2150*1500 |
3670*2517*2050 |
Conveyor motor power(kw) |
3 |
3 |
3 |

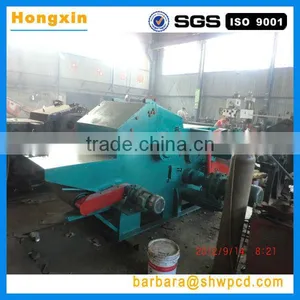

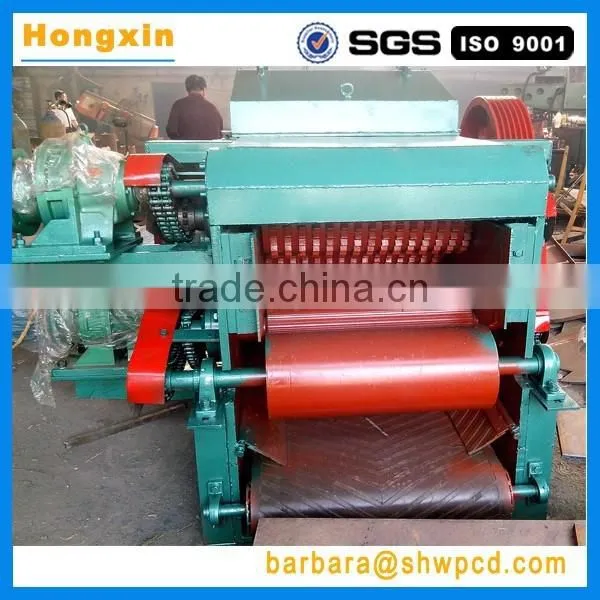

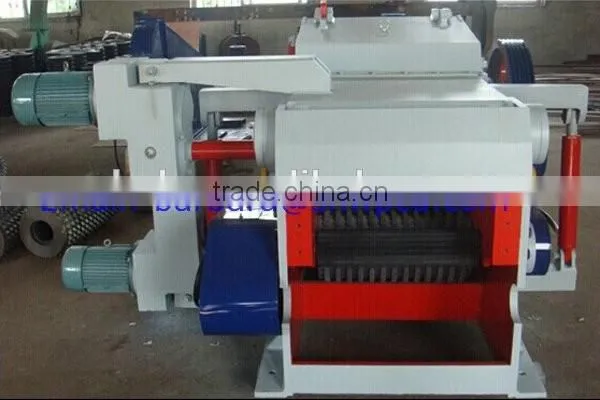

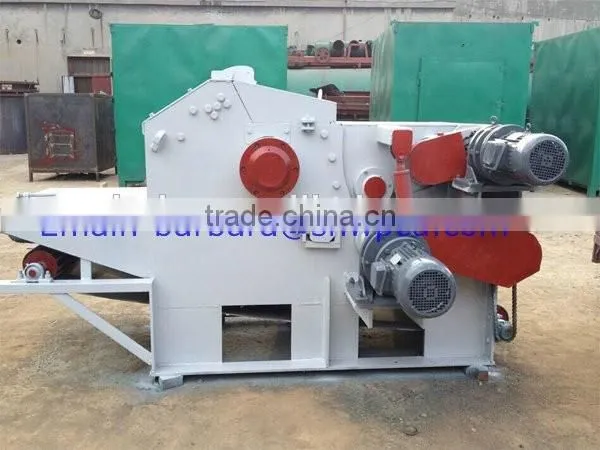

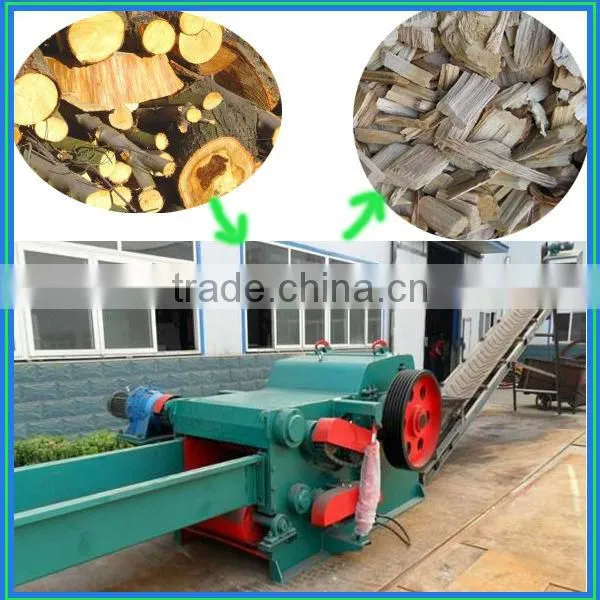

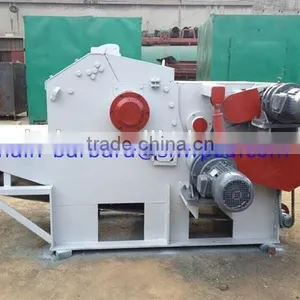

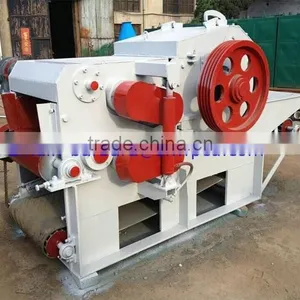

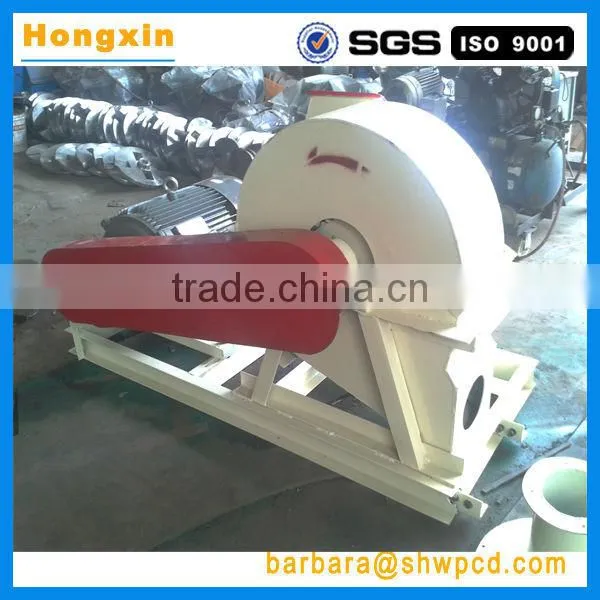

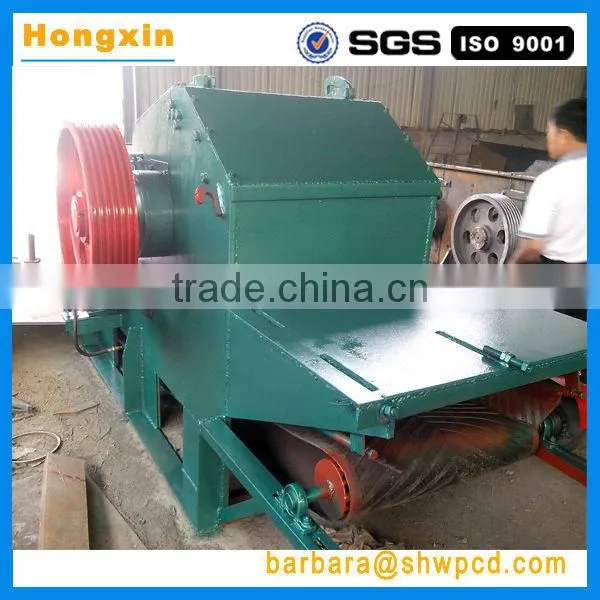

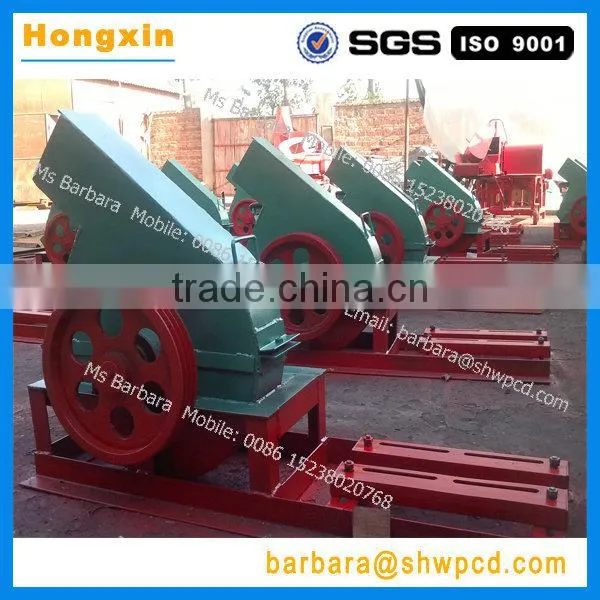

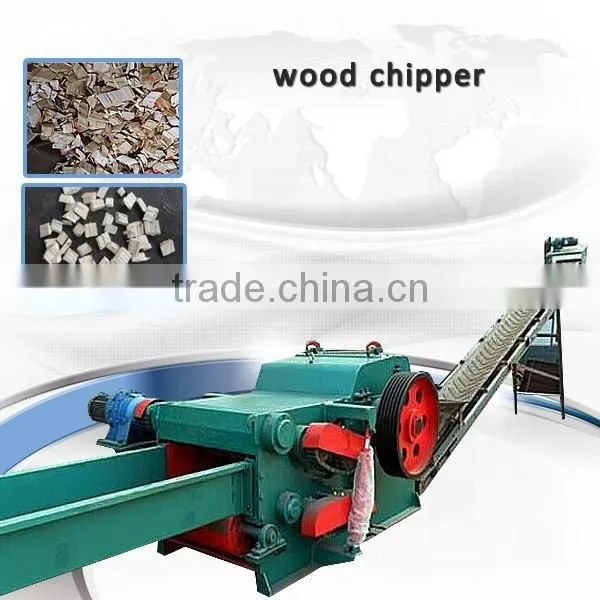

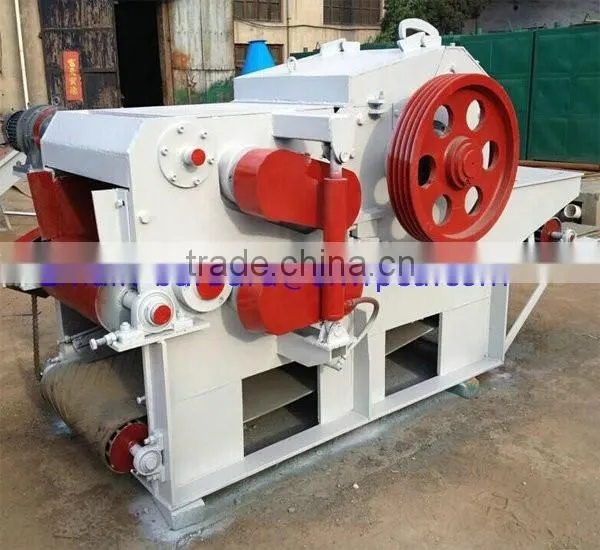

E: The pictures of automatic drum wood chipper machine:

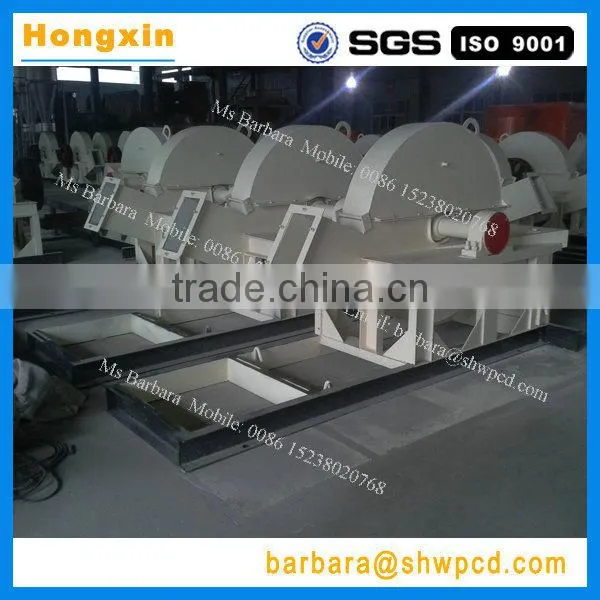

We also have round disc wood chipper machine/ wood crusher/ wood shaving machine and so on
My friend, If you are interested in any type of our wood chipper machine, you are welcome to contact with me freely.Have a good day!
Contact: Ms Barbara
Phone: 86-371-65863108
Fax: 0086-37165863109
Cell phone: 0086- 15238020768
Ali ID: cn1000637392
Skype: charcoal68
Wechat: 15238020768
Whats App: 0086- 15238020768
