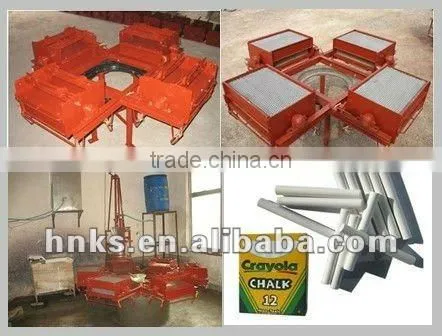

Simple operating chalk making machine/chalk forming machine/chalk machine
Automatic beating and water supply, product line, 3 operators, 580000-600000 pieces per day.
Packing size:660*500*350mm. 4 boxes
One beating chassis:1310*700*1100mm 1 wooden case
One mold frame boxes:1500*1500*450mm 1 wooden cse
Total weight:300kg 2.5 CBM
Model |
Mould qty |
Mould size |
Output |
Weight |
Operator qty |
JX800-1 |
1 |
660*500*350 |
60,000-70 ,000 pcs/8hours |
50kg |
1 |
JX800-2 |
2 |
660*500*350 |
120,000-150,000 pcs/8hours |
350kg |
1 |
JX800-4 |
4 |
660*500*350 |
230,000-250,000 pcs/8hours |
450kg |
1 |
JX800-6 |
6 |
660*500*350 |
380,000-400,000 pcs/8hours |
650kg |
2 |
JX800-8 |
8 |
650*500*350 |
580,000-600,000 pcs/8hours |
850kg |
3 |

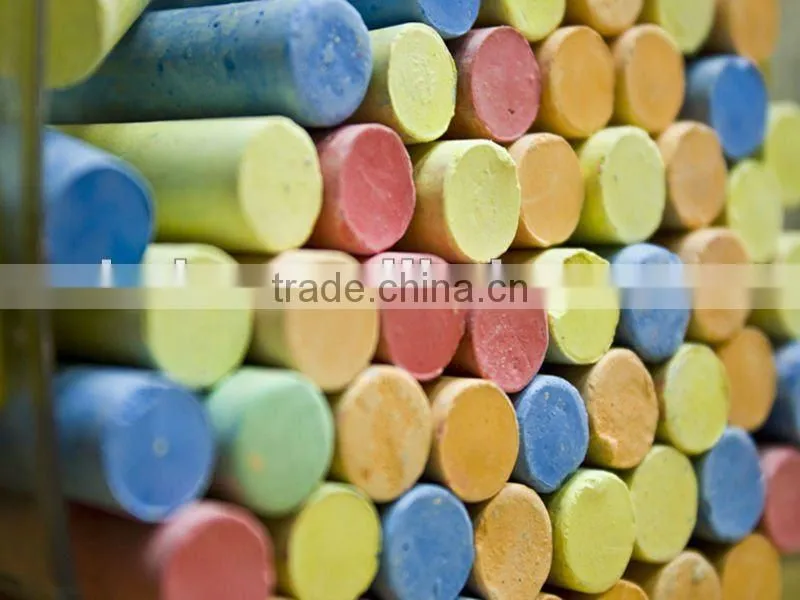

chalk size
Type |
Big end(mm) |
Small end(mm) |
length(mm) |
may move the length(mm) |
Circle |
9.6 |
9 |
80 |
2 |
Circle |
10 |
7.7 |
76 |
2 |
Circle |
10 |
8.1 |
75 |
2 |
Circle |
10 |
9.5 |
80 |
2 |
Circle |
11 |
10 |
100 |
2 |
Side |
12 |
11.5 |
100 |
2 |
Side |
12 |
11.5 |
80 |
2 |
Side |
11 |
10 |
60 |
2 |
Hexagon |
10 |
8 |
76 |
2 |
Hexagon |
11 |
9 |
75 |
2 |
