Condition New
Place of Origin Henan, China
Brand Name Jingxin
Model Number JXMZLH32
Voltage 380 V
Power(W) 15 kw
Weight 1 ton
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

2015 hot sell ring die pellet mill machine/ring die pellet making machine



Driven with heavy- duty gearbox construction can produce continuously in most adverse condition. The imported key elements are of high performance with long life and low maintenance cost. The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel. Pellet machine is widely used in the granulation of wood, straw, other biomass sources. capacity ranges from 200kgs to 3T per hour.



Machine specification:

For wood sawdust and grazing
Model MainMotor Power(kw) Capacity(t/h) Feeding Motor Power(kw) Conditioner Motor Power(kw) Diameter of Die (mm) Diameter of Pellet(mm)
JX-MZLH25 7.5*2 0.2-0.3 0.75+0.55 2.2 250 4-8
JX-MZLH32 37 0.3-0.6 0.75+0.55 2.2 320 4-8
JX-MZLH35 55 0.5-0.8 0.75+0.75 2.2 350 4-8
JX-MZLH40 75 0.7-1.1 1.5+0.75 2.2 400 4-8
JX-MZLH42 110 1.0-1.5 1.5+0.75 5.5 420 4-8
JX-MZLH508 132/160 2.0-3.0 1.5+0.75 7.5 508 4-8

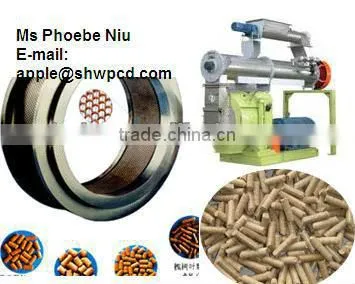

Bagasse Pellets Making Mill / ring die pellet making machine / wood sawdust and grazing pellet mill



Bagasse Pellets Making Mill / ring die pellet making machine / wood sawdust and grazing pellet mill

Bagasse Pellets Making Mill / ring die pellet making machine / wood sawdust and grazing pellet mill

Bagasse Pellets Making Mill / ring die pellet making machine / wood sawdust and grazing pellet mill

Bagasse Pellets Making Mill / ring die pellet making machine / wood sawdust and grazing pellet mill



          Bagasse Pellets Making Mill / ring die pellet making machine / wood sawdust and grazing pellet mill
