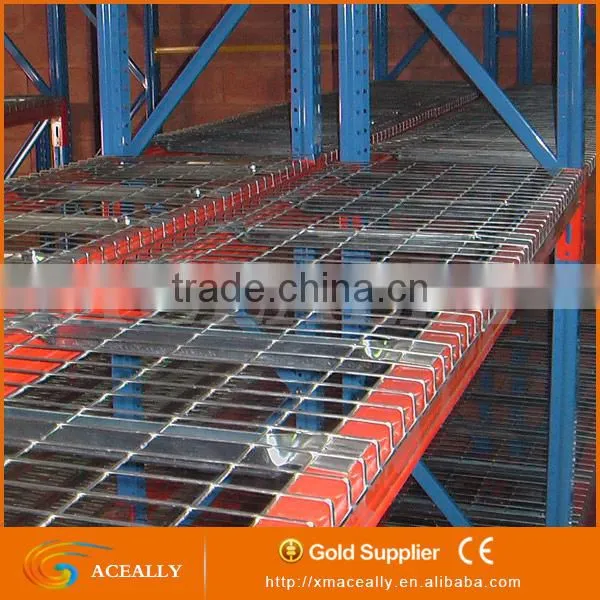

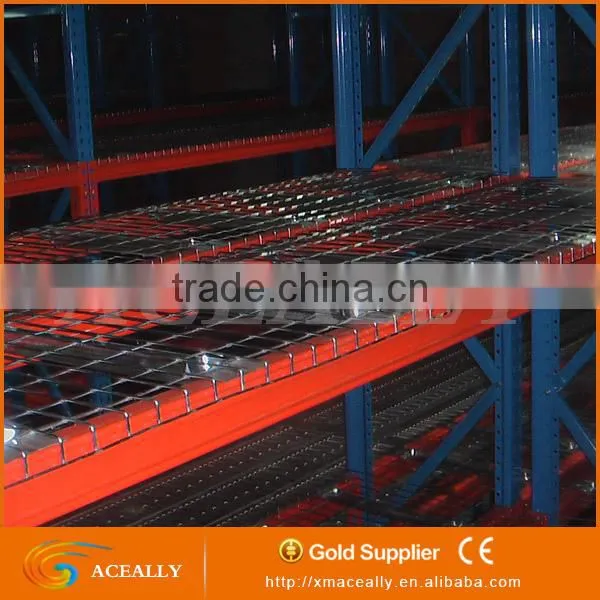

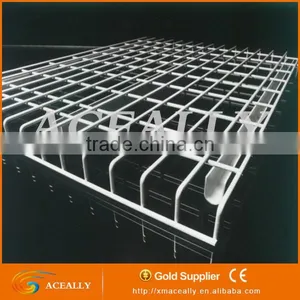

Heavy duty warehouse pallet rack with wire mesh deck

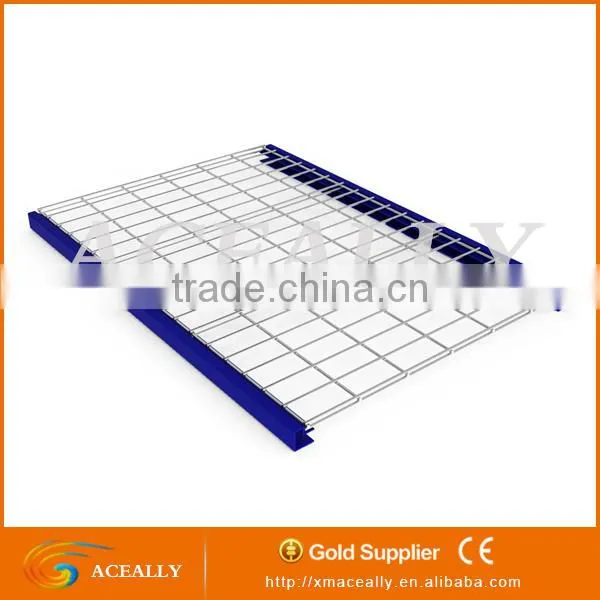

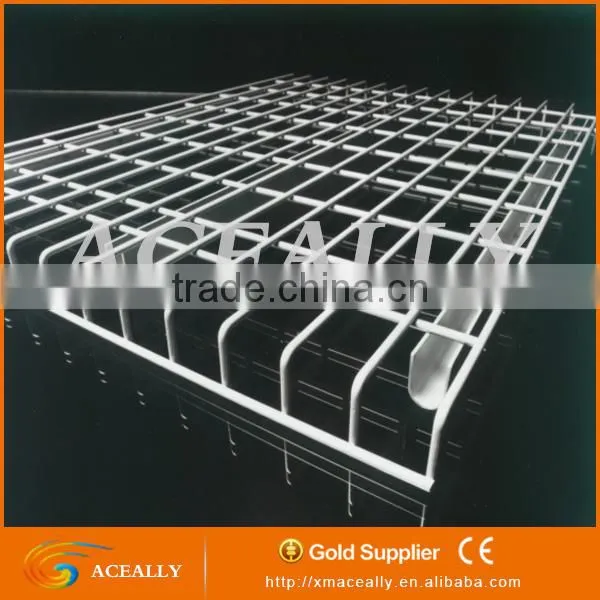

Wire mesh panels, namely, wire mesh decking
Wire mesh decking is a main product in our product line. It is widely used in warehouse, as an accessory of rack. It is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. Wire mesh decking comes in various thicknesses and mesh dimensions. Most wire mesh extends across the top and down the front of the beam to provide more support, and is more desirable in the marketplace.
Aceally can provide the wire mesh decking in both galvanized and powder-coat finished.

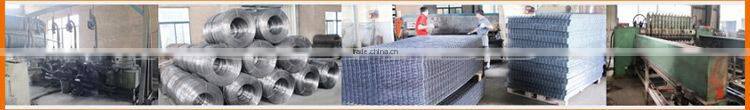

Our equipments
Our wire mesh decking is widely exported to US, UK, France & Australia etc.

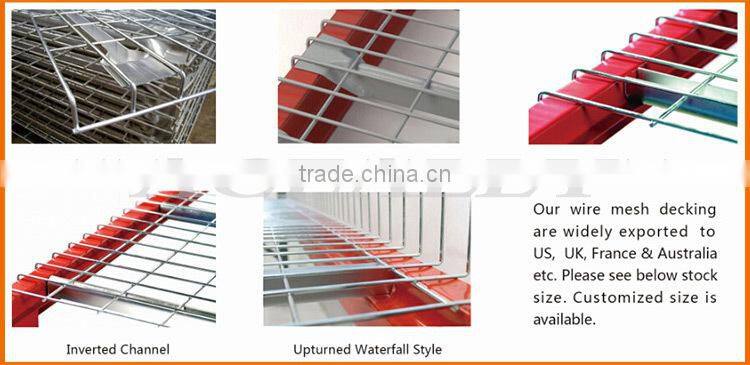

Wire mesh decking styles
Please see below stock size. Customized size is available.
| Stock size popular in US market | ||||||
| Model | Size (D*L) | Weight (lbs) | Mesh(Inch) | Gauge/mm | Channels (pcs) | Capacity (lbs) |
| Flared or step style | 24”*46” | 12.4 | 2.5”*4.5” | 4/5.3 | 3 | 3000 |
| 30”*46” | 15.6 | 2.5”*4.5” | 4/5.3 | 3 | 3000 | |
| 36”*46” | 18.4 | 2.5”*4.5” | 4/5.3 | 3 | 2700 | |
| 36”*52” | 19.6 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 36”*58” | 21.8 | 2.5”*4.5” | 4/5.3 | 3 | 2750 | |
| 42”*46” | 21.5 | 2.5”*4.5” | 4/5.3 | 3 | 2800 | |
| 42”*52” | 23 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 42”*58” | 27.5 | 2.5”*4.5” | 4/5.3 | 4 | 2800 | |
| 44”*46” | 23 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 44”*52” | 27 | 2.5”*4.5” | 4/5.3 | 4 | 2600 | |
| 48”*46” | 25 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 48”*52” | 31 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| 48”*58” | 33 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| 60”*46” | 38 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| Stock size popular in Australia market | ||||||
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
| Flared wire deck | 12,501,350 | 840,900,1070, | 4.0, 5.0, 5.3, 5.5 | 25*100 | 2,3,4 | 500, 1000 |
| 11,701,220 | 50*100 | 1500 | ||||
| Stock size popular in UK market | ||||||
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
| Flared wire deck | 1118, 1320 | 910, 1110 | 5 | 50*100 | 2,3,4 | 1000, 1500 |
| Stock size popular in France market | ||||||
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh(mm) | Supports(pcs) | Capacity (kgs) |
| Flared wire deck | 1000, 1050 1100 | 880 | 5 | 50*100 | 3,4 | 1000 |
| Step wire deck | ||||||
Wire mesh panels processing flow and packaging
The working flow of storage racks for your reference
Remarks: Our storage racking are with advanced equipment, especially
1. Shot Blasting Machine: it's one of the most advanced technology for surface cleaning, using high-speed particles to clean metal surface. Compared with traditional acid pickling , it’s better at cleaning and more efficient .
2. AkzoNobel Powder Coating: it’s one of the best powder , colorful and highly decorative
3. GEMA airbrush: By controlling the coating thickness uniformity, it can eliminate blind angle , achieve high-grade coating effect and improve production efficiency.
Wire mesh panels Pre-sale service
We offer no obligation professional consultation and design. Allow our experienced staff to assist you in designing a storage system that best suits your particular needs.
We also offer:
• Professional CAD Drawings
• Stamped Engineered Drawings
Custom sizes and colors are also available.
Custom designed and built to meet your specific needs and requirements.
After Sale Service
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for
customer;
3.Follow up the case, record the entire process, report complaint to QC department;
4.QC will find defect from which department ,who is in charge to identify responsibility
record customer respond,suggestion,requirement.
Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for nearly 15 years. Please feel free to contact our highly knowledgeable staff and allow us the pleasure of proposing the most innovative and affordable solution to your material handling needs.
Our business scope as follows:
| Light duty rack | Selective pallet racking | VNA Pallet Racking | Wire mesh panel | Tool cabinet | |||||
| Modular wire shelving | Double deep pallet racking | Mezzanine Rack | Wire mesh container | Dock leveler | |||||
| Slotted angle shelving | Drive In pallet racking | Steel platform | Steel pallet | Supermarket shelving | |||||
| Boltless rivet shelving | Radio shuttle racking | Mobile shelving | Storage cage | Shopping basket | |||||
| Longspan shelving | Cantilever racking | Steel locker | Steel pallet box | Transportation cart | |||||
|
Website: or http://xmaceally.en.china.cn/ | |||||||||
Our products are 100% compatible to major brands such as Dexion, Redirack, Interlake etc. Designed to AS4084-1993 and complying with the European FEM regulations, SEMA and CE certificate. Our ability to design and custom build systems that suit your specific needs yet accommodate your strictest requirements allows us to propose material handling solutions for virtually any application.
Aceally at International Fair

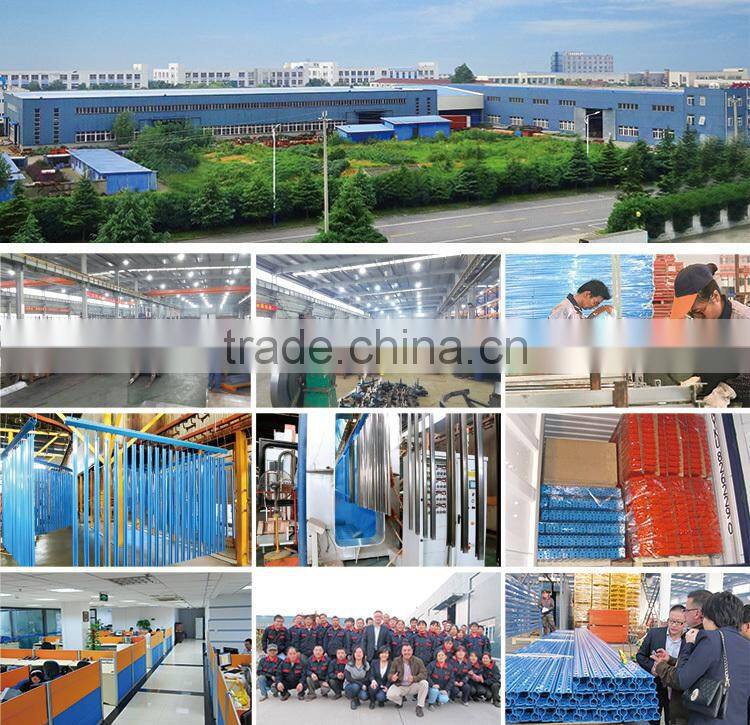

Aceally Company Overview
You are warmly welcome to visit us whenever you are available!
Thank you for visiting our website !
