Home > Industrial Equipment & Components > Ventilation Equipment > Blowers > Centrifugal Fan , Ventilator for Air Outlet , Air Volum Range 2,500-100,000m3/h

Centrifugal Fan , Ventilator for Air Outlet , Air Volum Range 2,500-100,000m3/h

Centrifugal Fan , Ventilator for Air Outlet , Air Volum Range 2,500-100,000m3/h thumbnail-1
Centrifugal Fan , Ventilator for Air Outlet , Air Volum Range 2,500-100,000m3/h photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Duct Fan
Contact Supplier Request Quote Chat Now
Taizhou Lion King Signal Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Stainless Steel
Mounting Duct Fan
Place of Origin Zhejiang, China
Brand Name LIONKING
Model Number LKT
Voltage 220V
Air Volume 1,000-40,000m3/h
Speed 2,500-100,000m3/h
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

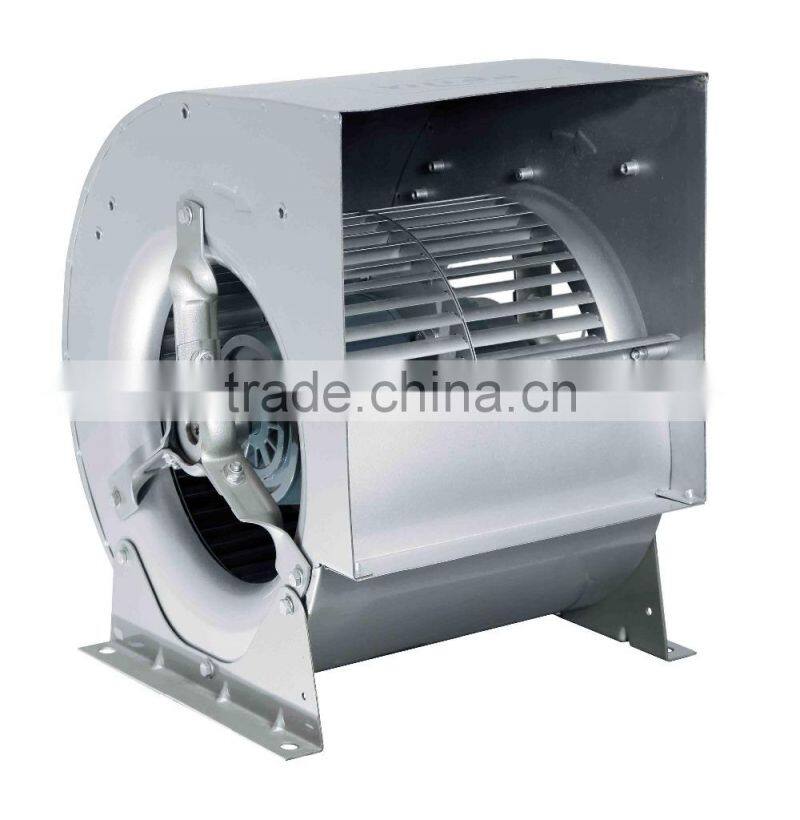

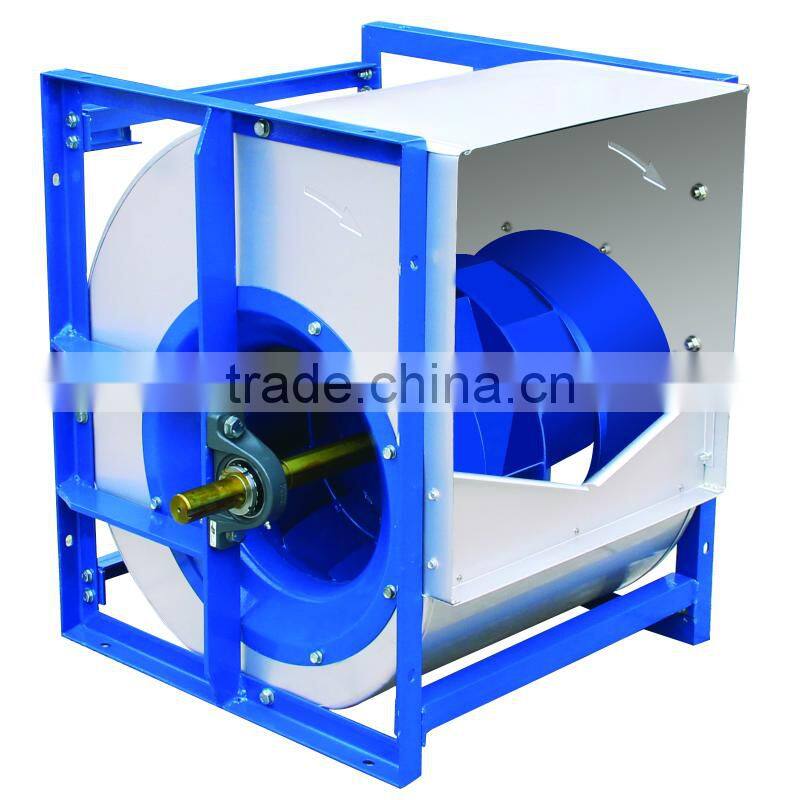

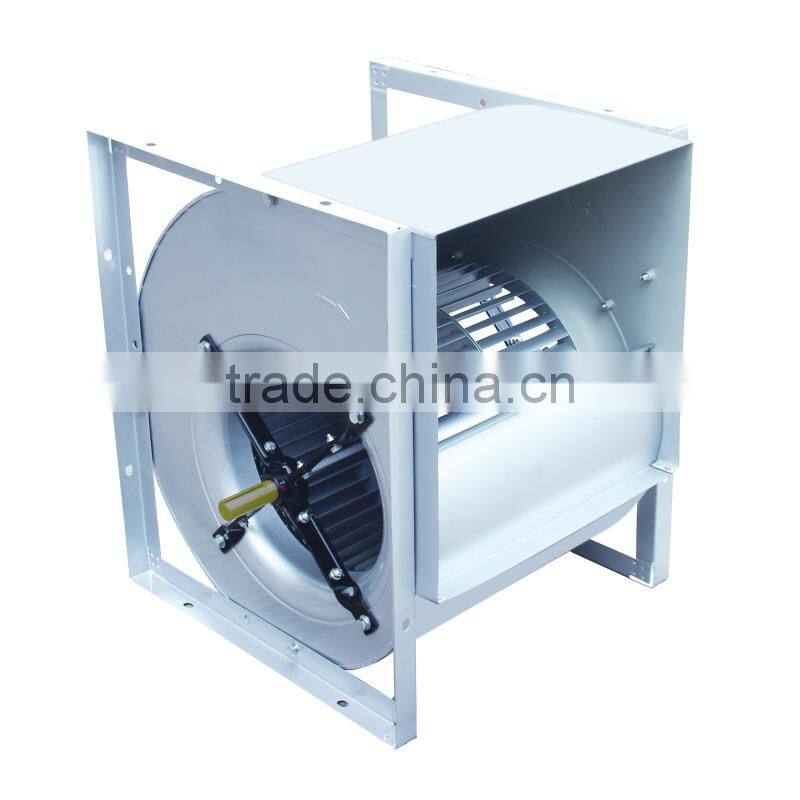

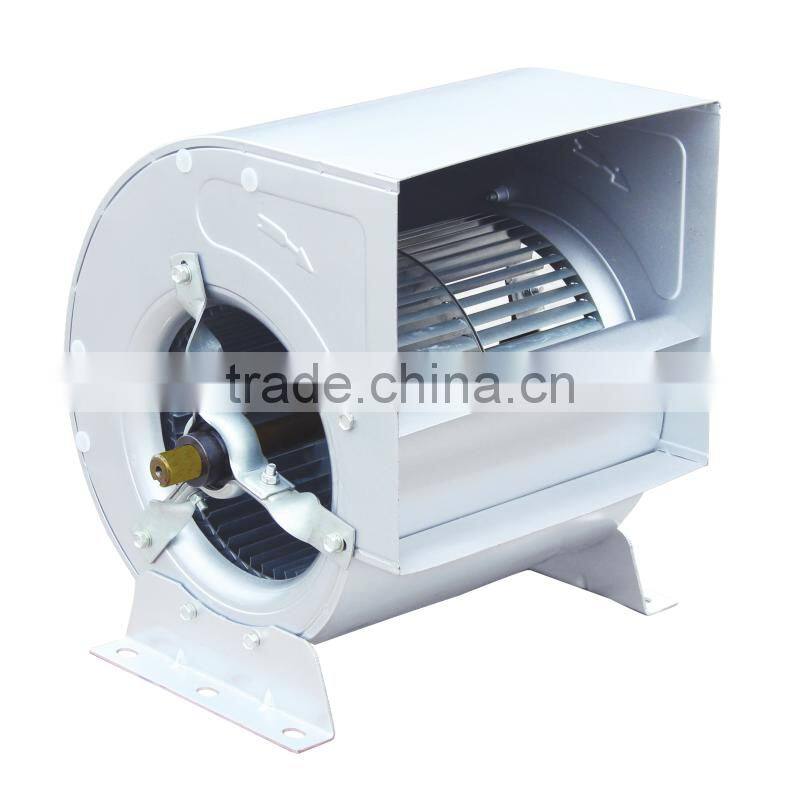

Sampls of centrifugal fan



centrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/h

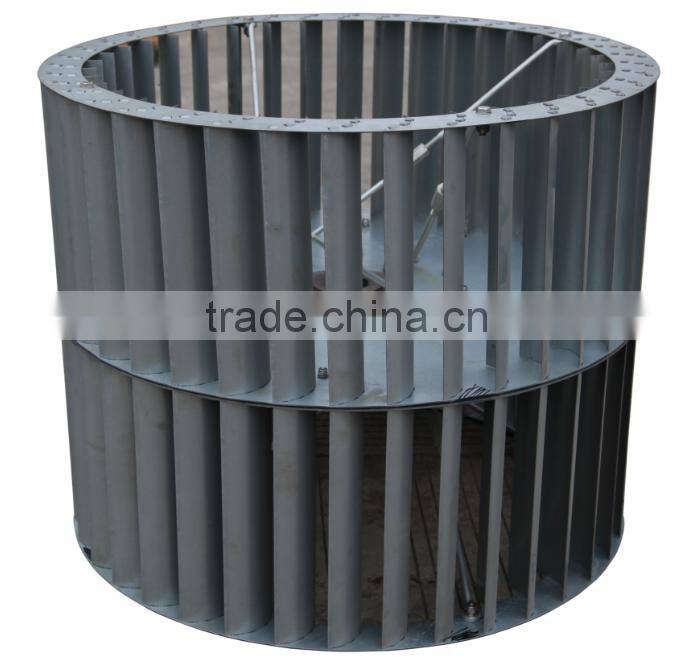

Impeller
centrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/h
Free mounting  centrifugal fan , motor can be fixed left or right side .
Impeller diameter   200-1,000 mm
Air volume range 2,500-100,000 m³/h
Total Pressure range  200-1,500 Pa
Total Pressure Efficiency 58-68 %
Sound Range  70-110 dB (A)
Drive Type Belt drive
Model  200, 225, 250, 280, 315, 355, 400, 450,
  500, 560, 630, 710, 800, 900,  1000

Similar products

LKT Impeller diameter   200-450 mm
    Air volume range 1,000-40,000 m³/h
    Total Pressure range  140-1,000 Pa
    Total Pressure Efficiency 50-69%
    Sound Range  60-90 dB (A)
    Drive Type Belt drive
    Model  7-7, 8-8, 9-7, 9-9, 10-8,10-10, 12-9, 12-12,
      15-11, 15-15, 18-13, 18-18 .

LKZ Impeller diameter   200-320 mm
    Air volume range 800-5,000 m³/h
    Total Pressure range  68-624 Pa
    Sound Range  50-73 dB (A)
    Drive Type Single-phase motor direct drive
    Model  7-7, 8-8, 9-7, 9-9, 10-8, 10-10,12-9, 12-12,


LKB Impeller diameter   200-500  mm
    Air volume range 1,000-20,000 m³/h
    Total Pressure range  200-850 Pa
    Sound Range  60-84 dB (A)
    Drive Type Belt drive
    Model  200, 225, 250, 280, 315, 355, 400, 450,
      500

LKD Impeller diameter   200-1,000 mm
    Air volume range 2,500-100,000 m³/h
    Total Pressure range  200-1,500 Pa
    Total Pressure Efficiency 58-68 %
    Sound Range  70-110 dB (A)
    Drive Type Belt drive
    Model  200, 225, 250, 280, 315, 355, 400, 450,
      500, 560, 630, 710, 800, 900,  1000

picture of  centrifugal

Forward Curved Multi-blades Centrifugal Fan

LKTcentrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/hLKDcentrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/hLKBcentrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/hLKQ  Backward-curved Single Layer Plate Centrifugal Fan  centrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/hLKT

centrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/hWe can provide ODM or OEM , and over sea service .



 PLY wood case , and shipping time : within 40 days after payment

Company Information

 centrifugal fan , ventilator for air outlet , air volum range 2,500-100,000m3/h

Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
    It is located in Taizhou City, Zhejiang Province, which is near to Shanghai and Ningbo with very convenient transportation system. The company has CNC lathes, CNC machining centers, CNC punch press, CNC bending machine, CNC spinning lathes, hydraulic press, dynamic balancing machine and other equipment.
    The company has perfect comprehensive Testing Center, which includes facilities for air volume test, noise test, torque force and tensile force test, high and low temperature test, overspeed test , life test etc.
    Relying on its mold technology center and engineering technology center, the company has developed forward curved multi-blades centrifugal fan,backward centrifugal fan, voluteless fan, roof fan, axial flow fan, box-type fan series with more than 100 specifications of metal fans and low noise fans.
    The company attaches great importance to quality management, and was awarded the ISO9001 international quality system certification very early. At present, the "LION KING" brand has enjoyed great popularity and well-deserved reputation. Meanwhile, the products are also exported to many countries, and honored with  consistent high praise and recognition by domestic and foreign customers.
    The company always insists the business philosophy of "Safety First, Quality First", and are keeping to serve all customers based on "honesty, innovation, rapid response, and full services."
