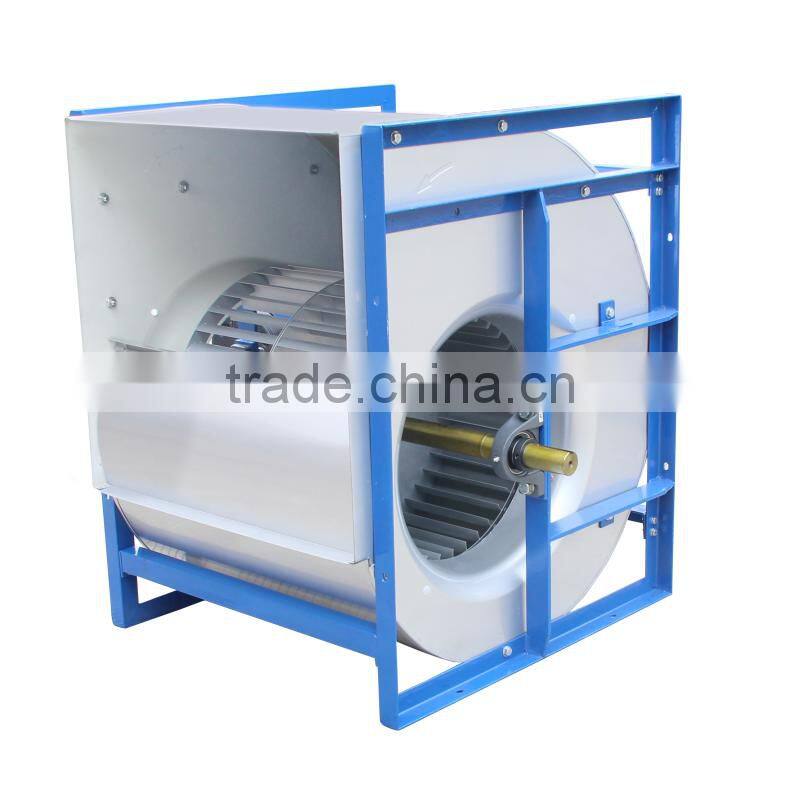

High Pressure Centrifugal Fan , Forward Curved Centrifugal Fan

High Pressure Centrifugal Fan , Forward Curved Centrifugal Fan thumbnail-1
High Pressure Centrifugal Fan , Forward Curved Centrifugal Fan photo-1
US$ 1 - 99 MOQ: 1 Unit
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Free Standing
Contact Supplier Request Quote Chat Now
Taizhou Lion King Signal Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Stainless Steel
Mounting Free Standing
Place of Origin Zhejiang, China
Brand Name LIONKING
Model Number LKD
Power 12-750w
Voltage 110v /220v
Air Volume 1,000-40,000m3/h
Speed 2900rpm/1450rpm/900rpm/750rpm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Sampls of centrifugal fan

Our products adopt CE &CCC certification



 Type LKD is a kind of  forward curved multi-blades centrifugal fan .

The air volum can reach 2,500-100,000m3/h , widely used for air condition other heating purification , ventilator etc .

Diameter from 200mm to 1,000mm, or can be customized .

high pressure centrifugal fan , forward curved centrifugal fan

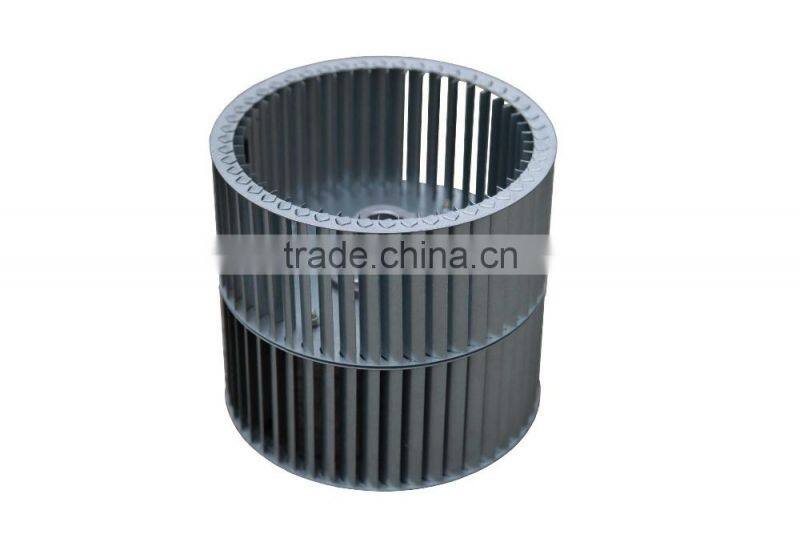

Galvanized  stell impeller for centrifugal fan
high pressure centrifugal fan , forward curved centrifugal fan
Free mounting  centrifugal fan , motor can be fixed left or right side .
Impeller diameter   200-1,000 mm
Air volume range 2,500-100,000 m³/h
Total Pressure range  200-1,500 Pa
Total Pressure Efficiency 58-68 %
Sound Range  70-110 dB (A)
Drive Type Belt drive
Model  200, 225, 250, 280, 315, 355, 400, 450,
  500, 560, 630, 710, 800, 900,  1000



Ventilation Fan:

1.high efficiency

2.low noise

3.high versatility

4.air-conditioning centrifugal fan

temperature -20 to 85

Packaging & Shipping



 PLY wood case , and shipping time : within 40 days after payment

high pressure centrifugal fan , forward curved centrifugal fan

high pressure centrifugal fan , forward curved centrifugal fanhigh pressure centrifugal fan , forward curved centrifugal fanhigh pressure centrifugal fan , forward curved centrifugal fanhigh pressure centrifugal fan , forward curved centrifugal fan

Company Information

 high pressure centrifugal fan , forward curved centrifugal fan

Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
    It is located in Taizhou City, Zhejiang Province, which is near to Shanghai and Ningbo with very convenient transportation system. The company has CNC lathes, CNC machining centers, CNC punch press, CNC bending machine, CNC spinning lathes, hydraulic press, dynamic balancing machine and other equipment.
