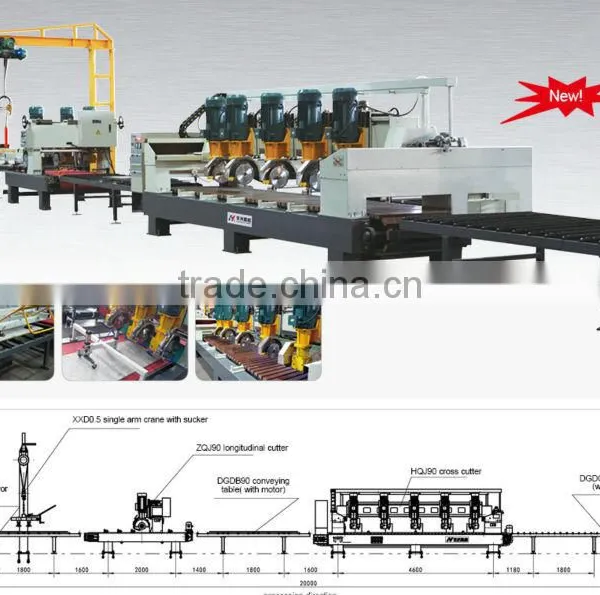

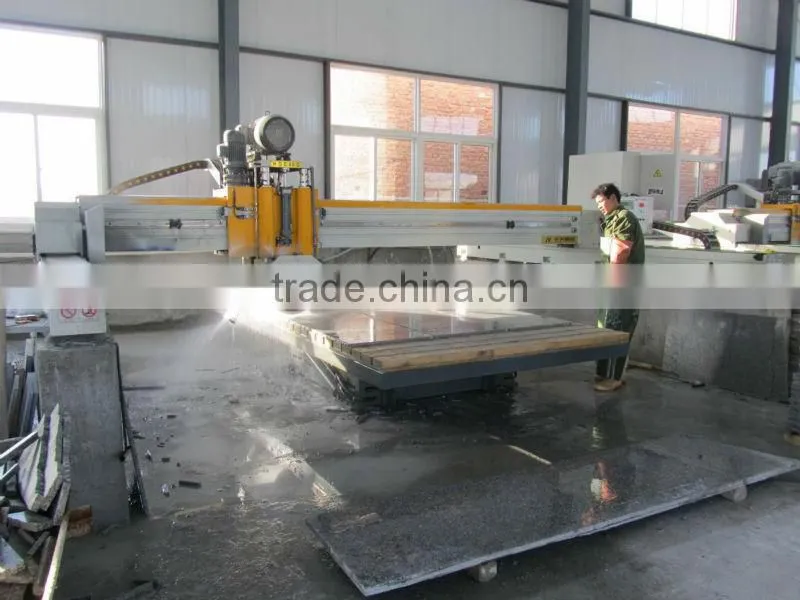

ZHQ90 Granite Cutting Machine

ZQJ90 longitudinally cutting machine (1set )

1.cutting head                  3

2.max.disc blade diameter     Φ400mm

3.max.cutting width             900mm

4.min. cutting width           300mm

5.max. conveying speed         6m/min

6.total power                   45.75KW

Main motor                  15*3=45KW

Conveying motor             0.75KW

7.overall size                3220*1800*1800

8.weight                     2.2T

HQJ90 cross cutting machine (1set )

1.cutting head                5

2.max.disc blade diameter     Φ400mm

3.max. cutting width          900mm

4.min cutting length           300mm

5.max. convey chain speed     14.5m/min

6.total power               78KW

Main motor               15*5=75KW

Swing motor               1.5KW

Convey motor             1.5KW

7.overall size                 5900*2230*1900

8.weight                   5.4T

DGD90 conveying table with motor (1set )

Table length:               3350mm

Slab width:                 950mm

Convey motor             0.55KW

Conveying speed:           11.3m/min

WGD90 conveying table without motor (2 set )

Table length:               3350mm

Slab width:                 950mm

XXD0.5 single arm crane with sucker  ( 1set-------optional )

1.max. load weight           480kg

2.max. lift height            2000mm

3.hock stroke                 2600mm

4.lift speed                   8m/min
