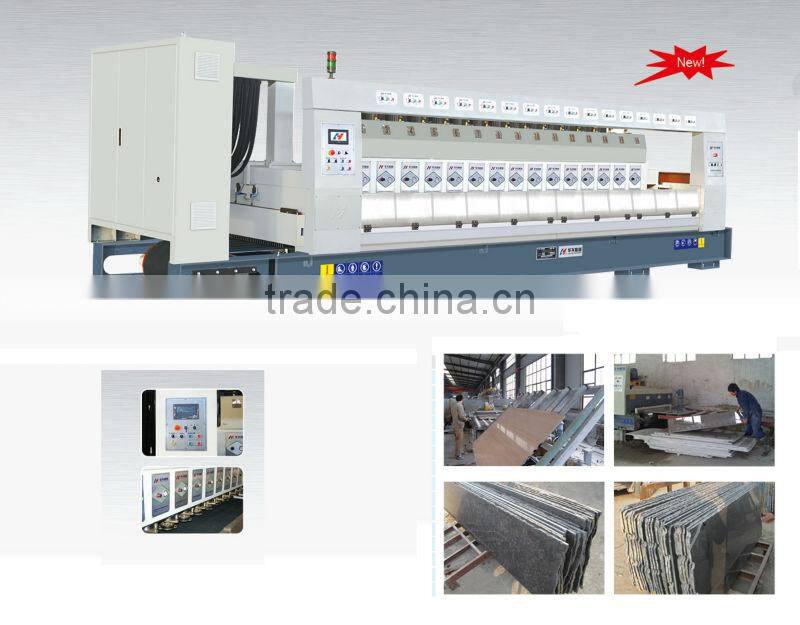

Marble and Granite Polisher

HRM09/16N Resin Abrasive Polishing Machine

Equipment features:

HRM09/16N Resin Abrasive Polishing Machine is mainly used to polish the slabs with reasonable structure, stable performance and high working efficiency. It adopts PLC control and text display screen, which realizes intelligent control.

1. It adopts patent polishing disc base with long usage life, low trouble rate, high efficiency, low cost, low slab breakage and so on. It uses the resin polishing disk which is light , small consumption of power and high grinding efficiency .

2. The conveying belt is famous brand with same thickness, which assures the thickess of slab uniform.

3.The moving speed of conveying belt and crossbeam swinging is aslo adjustable by frequecy converter. It uses the air pressure to control the up-down of the abrasive disk ,and the pressure is aslo adjustable .

Parameter:

1. polishing width:                           300~950mm

2. polishing thickness:                         15~30mm

3. numbers of the polishing heads:               16

4. total capacity:                               128.2KW

polishing head motor:                  7.5kw×16

belt drive motor:                         2.2 kw

crossbeam swinging motor:              3 kw*2

5. belt conveying speed:                      600~2200mm/min

6. air pressure of compressor:                 0.60~0.8Mpa

   air displacemet of the compressor        500L/min

7. pressure of the cooling water:               0.15~0.3MPa

8. water consumption of each head:             25L/min

9.overall dimension::                          9600*2650*2400mm

10. diameter of the polishing disk:               200mm

11. the effective stroke of crossbeam swinging       800mm

12. effective up-down stroke of polishing head       90mm

13. total weight                                   13600kg

HGL90 conveyor

SIZE(L*W*H)         3350*950*700mm

conveying width      900mm

conveyor force       0.75kw

conveying speed    3040~590mm/min

HQCG90 conveyor (clean&dry)

SIZE(L*W*H)        4350*950 *1500mm

coveying width        900mm

cleaning motor       0.75kw

drying motor         1.5kw
