Granite Stone Polisher for Sale

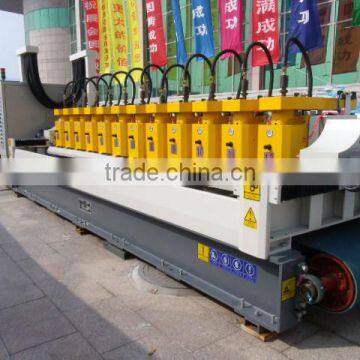

HRM12/20W RESIN PAD POLISHING MACHINE

HRM12/20W resin pad polishing machine is mainly for polishing stone tiles.it brings in advanced control system, and touch screen to realize be intelligent .

Its main feafures as follows:

1. 1.    use resin abrasive pad
2. 2.    adopt advanced control program to realize profile function, can process irregular stone tile margin and greatly improves the material utilization rate.
3. 3.    it is straight railway which work smoothly , process well , and lengthen  service life.
4. 4.    The external cylinder design, convenient repair

main parameter:

1.polishing pad diameter:                       Φ200mm

2.polishing head quantity:                       20

3.process width:                           1250mm

4.total power:                               158kw

   main motor:                                     20×7.5kw

   crossbeam swing motor:                   4kw

  belt driving motor:                         4kw

5.crossbeam speed:                          3~35m/min

   belt driving motor:                          0.5~2.6m/min

6.crossbeam swing valid stroke:              1200mm

  polishing head valid stroke:                100mm

7.each polishing head water consumption:      ≥25L/min

8.air compressor exhaust volume:               1000L/min

9.allover size:                                     9610×3050×2260mm

10.weight:                                        16200kg

QFBJ120 air driving turnover machine

main parameter

1.turnover width:                             1300mm

2.turnover angle:                               ≥80°

3.walk motor:                                0.75kW

4.walk speed:                                   10.5m/min

5.air compressor supply pressure:            ≥0.7MPa

6.allover size:                                   4000×2440×770mm

7.weight:                                      600kg

HGLD120 roll table with motor

main parameter

1.roller length:                                 3350mm

2.conveyor width:                          1250mm

3.motor:                                   0.55kw

4.speed:                                 11.3m/min

HQG120 clean & dry roll table

main parameter

1.roller length:                               4350mm

2.conveyor width:                        1250mm

3.clean motor:                           0.55kw

4.dry motor:                           1.5kw
