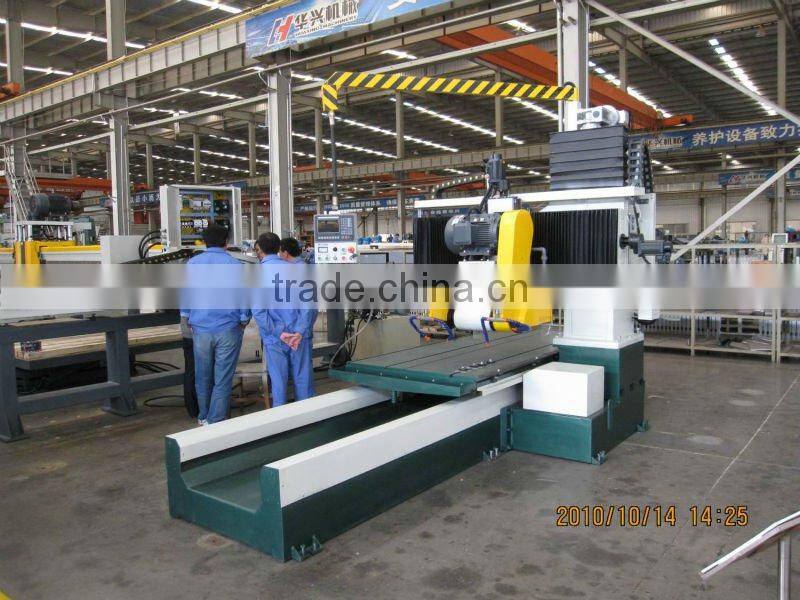

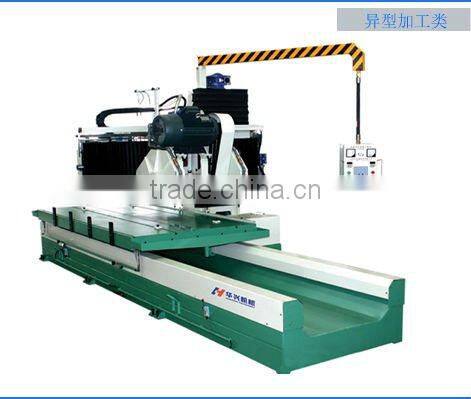

DSX60 PC PROFILE LINE CUTTER---China HUAXING

DSX60 PC Numerical Controlling Cutter is specially used in cutting granite and marble special line and special shape plate, normal plate, tombstone, stone for paving square and roadside stone automatically. It changed the situation of low efficiency and accuracy with hand processing.

This machine has reasonable structure and good protecting performance.

It is easy to operate after adopting PC controller in electrical parts, and with high automation.

It has high universality. It can be used in processing special line plate, and also can be used as regular edge cutter. It can work with either two discs or one disc.

This machine can cut automatically with high accuracy through following the programming pattern by adjusting the cross feeding stroke, which is programmed by customers and memoried in computer.

Mechanical parts and electrical parts work in close coordination and achieve

electromechanical integration.

Main Parameters:

1. Maximum diameter of disc                                               600mm

2. Maximum processing length                                            2600mm

3. Maximum processing height                                             600mm

4. Maximum profiling depth                                                  380mm

5. Walking speed of trolley (10~50Hz)                            100~10000mm/min

6. Maximum processing width of double discs                        600mm

7. Maximum processing width of single disc                          1100mm

8. Total capacity                                                                 14.34kw

9. Overall dimension                                                    5000*2300*3100mm

10. Weight                                                                          4500kgs
