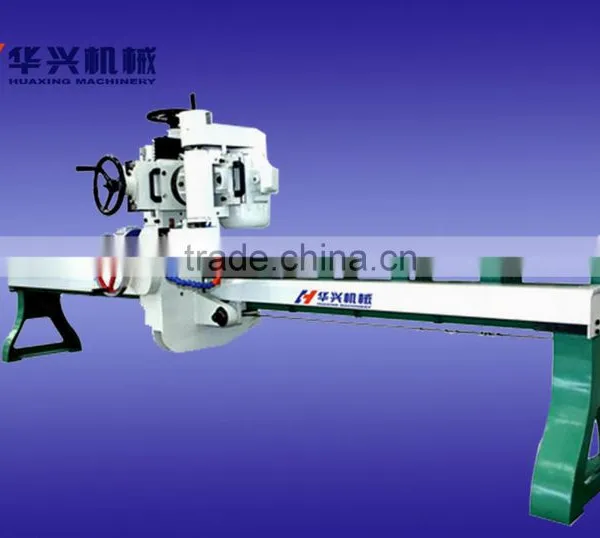

YHXM 350 Profiling Machine
this machine is mainly used for grinding straight or curve edge of granite and marble, and other non-metallic materials. It also can be used for cutting and edge cutting of plates.
1 This machine is well designed and working stably, which raise the processing accuracy.
2 The rails of this machine are all-seal oil sinking type one, it guarantee a long usage life and high guidance precision.
3 This machine adopts two-speed motor, which raises the polishing efficiency.
4 The movement from left to right adopts two types of two-speed and infinite speed variation.
Main Parameters:
Model |
350 |
Main motor (kw) |
4/3.3 |
Walking motor (kw) |
0.55 |
Walking speed (m/min) |
0.2~4 |
Effective processing stroke (mm) |
3100 |
Length of body (mm) |
3716 |
processing width—one time (mm) |
≤150 |
Max. processing width (mm) |
600mm |
Max. processing thickness (mm) |
≤150 |
Deflective angle of polishing head (°) |
±8 |
Rotary angle of head |
Arbitrary |
Rotary speed of polishing head (r/min) |
1900/3800 |
Overall dimension (mm) |
3716*1510*1510 |
Weight (kgs) |
950 |
