End-beam Hydraulic Block Cutter

End-beam Hydraulic Block Cutter thumbnail-1
End-beam Hydraulic Block Cutter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Other, granite
Contact Supplier Request Quote Chat Now
Shandong Gold Rhino Huaxing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Other, granite
Place of Origin Shandong, China
Brand Name Huaxing
Dimension(L*W*H) 7400mm*4300mm*5760mm
Weight 12000Kg
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

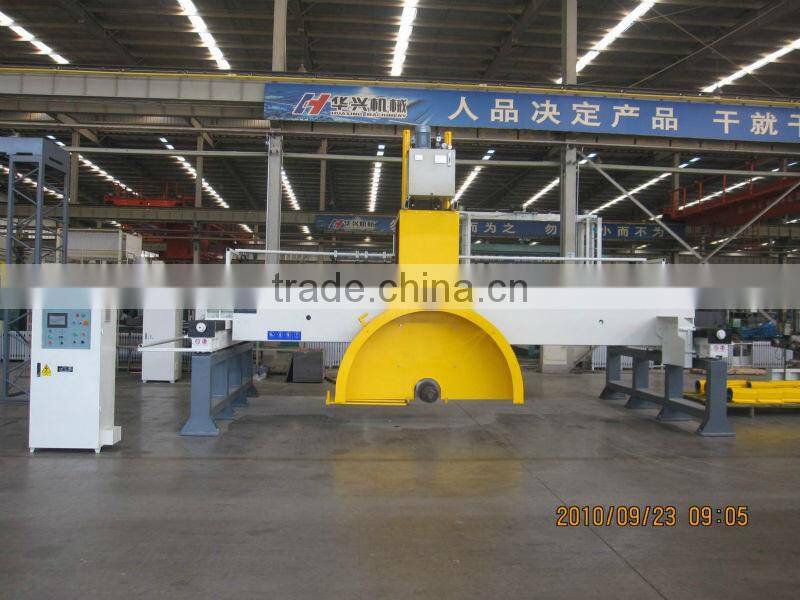

DLJ220 End-beam Hydraulic Block Cutter



1.Uses and fearures

DLJ220 End-beam Hydraulic Block cutter adopting the diamond cutlery and high-speed grinding  technique is mainly used in cutting the marble,granite and so on.

This machine has the following features:

a. Adopting great span bridge type structure, the stone material is cut on the ground, it will improve the stability when cutting and the maintaining cost is free.

b. The end-beam adopts all-seal oil sinking type guide –rail and rotary encoder, it will guarantee a long service life and working stable and high slicing precision.

c. The up-dwon part adopting column guiding with high precision and good rigidity.

d. Hydraulic up-downwith high speed and stable movement, with high efficiency and low trouble rate.

e. The machine operating convenient, safe, reliable and high automaticity.

f. the machine with high weight which improves the cutting stability.

g. Adopting ultra-thin multi-disc with high cutting efficiency and low cutting cost.

2.Main technical parameter

Max diameter of the blade

φ2200mm

Max. cross stroke

3200mm

Max. vertical stroke

1000mm

Max. slice-moving stroke

1800mm

Max.blade No.

9 pcs

Rotary speed of main shaft

392r.p.m

Total capacity

45.4KW

Oil pump motor

4KW

Walking motor

2.2KW

Slicing motor

2.2KW

Main motor

37KW

Weight

12000Kg

Overall dimension

7400mm×4300mm×5760mm

 End-beam Hydraulic Block CutterEnd-beam Hydraulic Block CutterEnd-beam Hydraulic Block Cutter
