Product Details
Condition: | New | Type: | Stone Cutting Machine | Use: | Granite |
Place of Origin: | Shandong, China | Brand Name: | Huaxing | Model Number: | DLJ260A |
Voltage: | 380V 50HZ | Power(W): | 55KW | Dimension(L*W*H): | 8320mm*4600mm*6730mm |
Weight: | 12000kgs | Certification: | ce | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

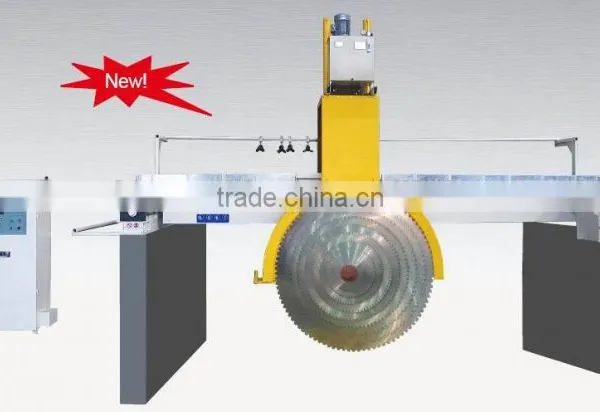

DLJ260A End-beam Hydraulic Block Cutter
1.Uses and fearures
DLJ260A End-beam Hydraulic Block cutter adopting the diamond cutlery and high-speed grinding technique is mainly used in cutting the marble,granite and so on.
This machine has the following features:
a. Adopting great span bridge type structure, the stone material is cut on the ground, it will improve the stability when cutting and the maintaining cost is free.
b. The end-beam adopts all-seal oil sinking type guide rail and rotary encoder, it will guarantee a long service life and working stable and high slicing precision.
c. The up-dwon part adopting column guiding with high precision and good rigidity.
d. Hydraulic up-downwith high speed and stable movement, with high efficiency and low trouble rate.
e. The machine operating convenient, safe, reliable and high automaticity.
f. the machine with high weight which improves the cutting stability.
g. Adopting ultra-thin multi-disc with high cutting efficiency and low cutting cost.
2.Main technical parameter
Max diameter of the blade | φ2600mm |
Main crossbeam length | 7856mm |
Side beam length | 3875mm |
Max. cross stroke | 3900mm |
Max. vertical stroke | 1300mm |
Max. slice-moving stroke | 2200mm |
Max block size | 3500*2200*1300mm |
Max.blade No. | 9 pcs |
Blade up-down speed | UPp:60mm/s Down: adjustable |
Max feeding speed | 9700mm/min |
Rotary speed of main shaft | 276r.p.m |
Total capacity | 55KW |
Oil pump motor | 4KW |
Walking motor | 3KW |
Slicing motor | 3KW |
Main motor | 45KW |
Weight | 12000Kg |
Overall dimension | 8320mm*4600mm*6730mm |
