DZJ180 Single Arm Multi-disc Stone Sawer

Shandong Gold Rhino Huaxing Machinery Co., Ltd.
DZJ180 Single Arm Multi-disc Stone Sawer thumbnail-1
DZJ180 Single Arm Multi-disc Stone Sawer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Granite
Place of Origin Shandong, China
Brand Name huaxing
Model Number DZJ180
Voltage 380V 50HZ
Power(W) 48.7kw
Dimension(L*W*H) 10000*7000*6600mm
Weight 6000kgs
Certification ce
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

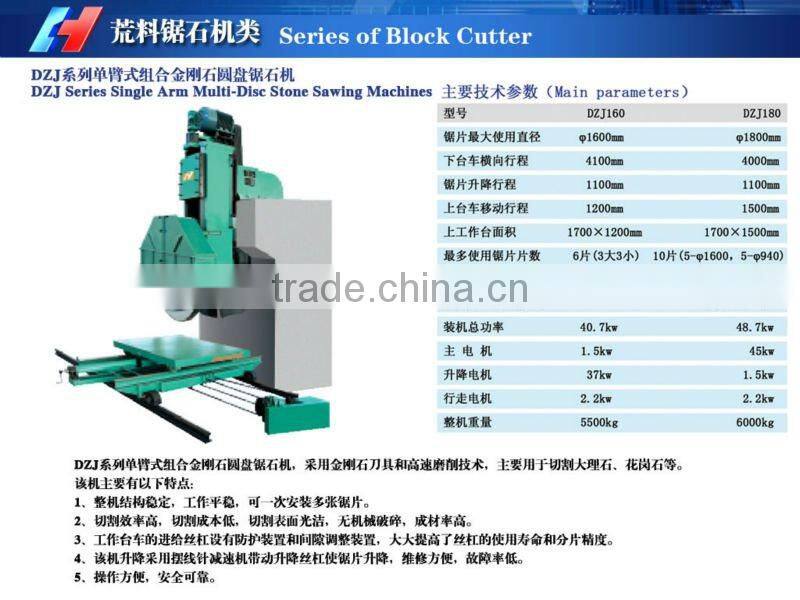

                          DZJ Series Single Arm Stone Sawing Machines



The machine  adopts  diamond cutter and high speed grinding technology, and are mainly used for cutting granite and marble etc.



These series machines have reasonable structure, steady working conditions, and can be equipped with multi discs.



The feeding lead screw of trolley is equipped with safeguard and space adjustment devices, which greatly improves the usage life of lead screw and its feeding precision.



Main Parameters:



DZJ180A/B

1. Maximum diameter of disc                               Φ1800mm

2. Cross stroke of bottom trolley                             4000mm

3. Vertical stroke of saw disc                                 1100mm

4. Stroke of upper trolley                                   1500mm

5. Area of upper trolley                                 1700*1500mm

6. Number of disc                         12(6-Φ1600mm 6-Φ940mm)

7. Vertical speed of saw disc                             450mm/min

8. Maximum feeding speed of trolley                     4200mm/min

9. Total power                                               48.7kw

10. Main motor                                              45kw

11. Elevator motor                                           1.5kw

12. Walking motor                                           2.2kw

13. Overall dimension                           10000*7000*6600mm

14. Weight                                                6000kgs

12. Walking motor                                                             2.2kw

13. Overall dimension                                                10000*7000*6600mm

14. Weight                                                                      6000kgs

 DZJ180 Single Arm Multi-disc Stone SawerDZJ180 Single Arm Multi-disc Stone Sawer
