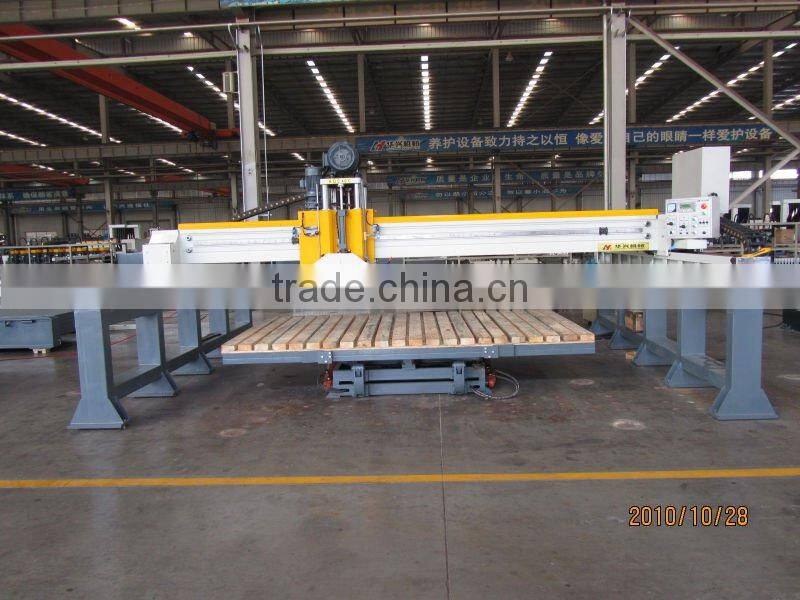

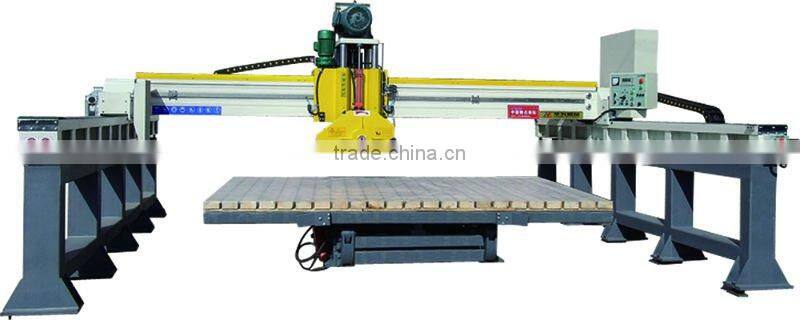

HQC40 Automatic Infrared Ray Bridge Cutter Granite Marble

Shandong Gold Rhino Huaxing Machinery Co., Ltd.
HQC40 Automatic Infrared Ray Bridge Cutter Granite Marble thumbnail-1
HQC40 Automatic Infrared Ray Bridge Cutter Granite Marble photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Cutting Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Cutting Machine
Use Granite
Place of Origin Shandong, China
Brand Name Huaxing
Model Number HQC40C
Voltage 380V 50HZ
Power(W) 15KW
Dimension(L*W*H) 5800*4500*3200mm
Weight 5000KGS
Certification ce
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas





Uses and features



HQC40 Bridge Cutter is ideal and special equipment for stone processing factory, especially widely used in cutting big size plates such as granite, marble, artificial marble and concrete plate etc.







Model

HQC40C

HQC40D

HQQ120A

HQC40 C/A2

Disk diameter range(mm)



Φ400-Φ600

Φ400-Φ700

Φ1000-Φ1200

Φ400-600

45° chamfering

max cross stroke



3500 mm

3500 mm

3200mm

3500 mm

max longitudinal stroke



3200mm

3200mm

3200mm

3200mm

Max up-down stroke



300 mm

380 mm

600mm

350 mm

table max tilting degree



85°

85°

-----------

85°

table rotating degree



90°

360°

(0°, 45°, 90°,180°, 270°)

360°(0°, 45°, 90°180°, 270°)

360°(0°, 45°, 90°180°, 270°)

Table size



3250×2000mm

3250×2000mm

3000*2200mm

3250×2200mm

guide rail of side beam and main crossbeam



Straight guide rail



Straight guide rail



Straight guide rail



Straight guide rail



Main motor power



15KW/4

 18.5KW/4

22kw/6

11KW/4

Installation dimension



5800*4500*3200mm

5800*4500*3200mm

5800*4500*4000mm

6800mm L---optional

5800*4500*3200mm











 HQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marble







HQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marbleHQC40 Automatic Infrared Ray Bridge Cutter granite marble
