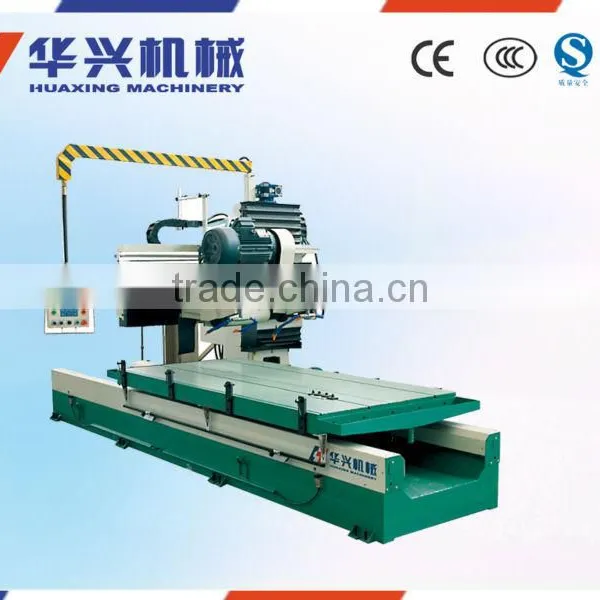

DSX60A CNC Line Cutter Ceramic Tile Cutting Machine

Specifications

DSX60A CNC Line Cutter is specially used in cutting granite and marble special line and special shape plate, normal plate, tombs

DSX60A CNC Line Cutter is specially used in cutting granite and marble special line and special shape plate, normal plate, tombstone, stone for paving square and roadside stone automatically. It changed the situation of low efficiency and accuracy with hand processing.

This machine has reasonable structure and good protecting performance.

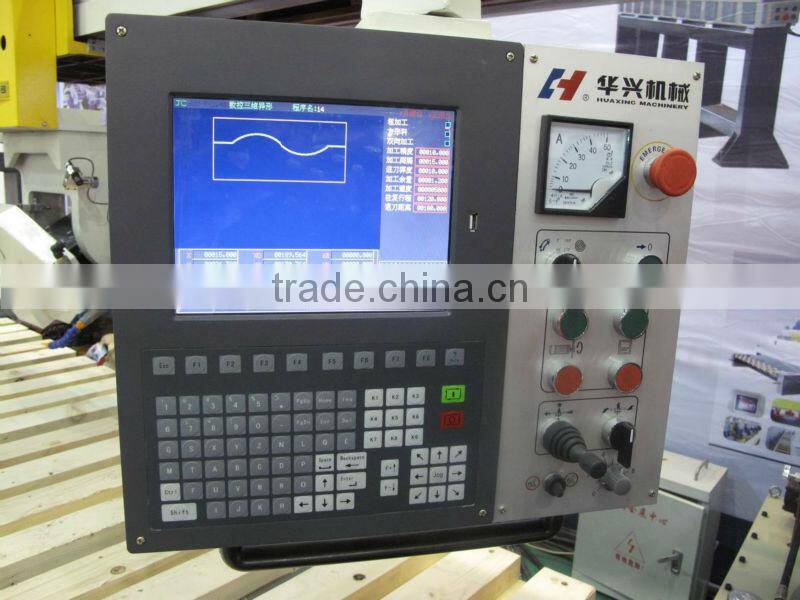

It is easy to operate after adopting PC controller in electrical parts, and with high automation.

It has high universality. It can be used in processing special line plate, and also can be used as regular edge cutter. It can work with either two discs or one disc.

This machine can cut automatically with high accuracy through following the programming pattern by adjusting the cross feeding stroke, which is programmed by customers and memoried in computer.

Mechanical parts and electrical parts work in close coordination and achieve electromechanical integration.



Main Parameters:

1. Maximum diameter of disc                               600mm

2. Maximum processing length                           2600mm

3. Maximum processing height                            600mm

4. Maximum profiling depth                               380mm

5. Walking speed of trolley (10~50Hz)             100~10000mm/min

6. Maximum processing width of double discs               600mm

7. Maximum processing width of single disc                1100mm

8. Total capacity                                         14.34kw

9. Overall dimension                           5000*2300*3100mm

10. Weight                                             4500kgs
