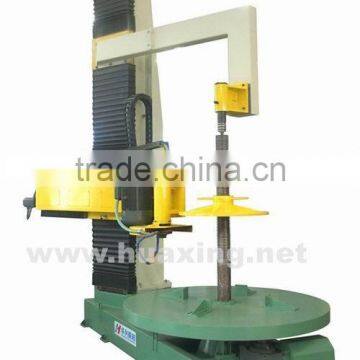

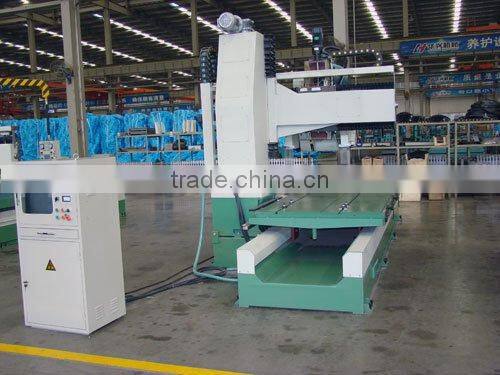

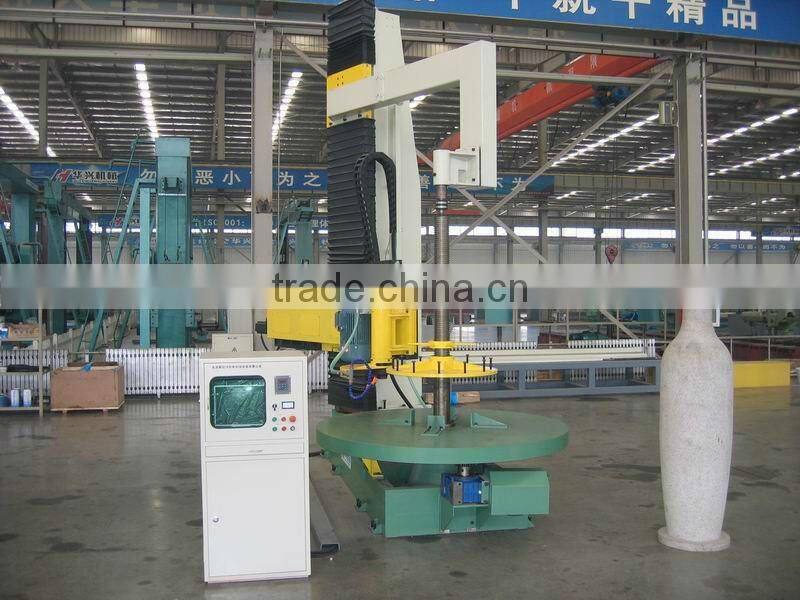

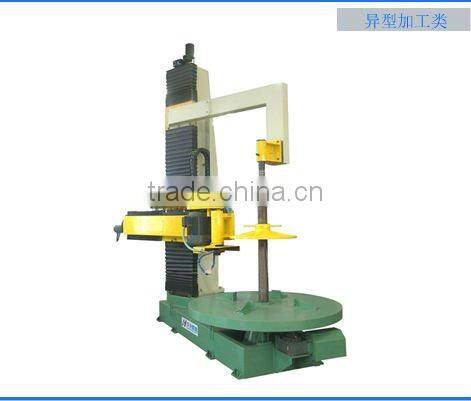

SLY200 Numerical stone Machine

This machine is mainly used for varied solid revolution of the granite, the marble and so on, for example: The column base, the cap of column, the Roman column, the balustrade column, the circular arc board. It can automatically complete the cutting,grinding and polishing, it changed the shortcoming of low processing efficiency and precision by manual, it enhanced the working efficiency. This machine mainly has the following features:

1, The versatility is high. This machine is mainly used for processing the varied solid revolution, and it can drill hole, mill the rotation heterogeneous type lace and the basic sides of incise the arc-shaped plank etc.

2, This machine structure is reasonable, has the high rigidity, and good protection performance.

3, The electrical system adopts computer control system with the dependable function and operating conveniently, the automaticity is high.

4, The user can be according to the processed shape, first forms the pattern through the programming (pattern can be store up in computer, prepare later to transfer), then will implement the processing. This machine may automatically adjust the longitudinal feed gap according to the emergency of the work piece contour, the cutting precision is high.

5, The machine part and the electrical part coordinate closely, this machine has achieved the integration of machinery and electric.

Main technical parameter

1. Maximum diameter of disc                                     600mm

2. Maximum working diameter                                   2000mm

3. Maximum working height                                     2000mm

4. Maximum cutting depth                                       200mm

5. Rotating speed of working table                       0-4.67r/min(50Hz)

6. Total capacity                                               18.05Kw

7. Overall dimension                                 3750*2500*4650mm

8. Weight                                                       6000kg
